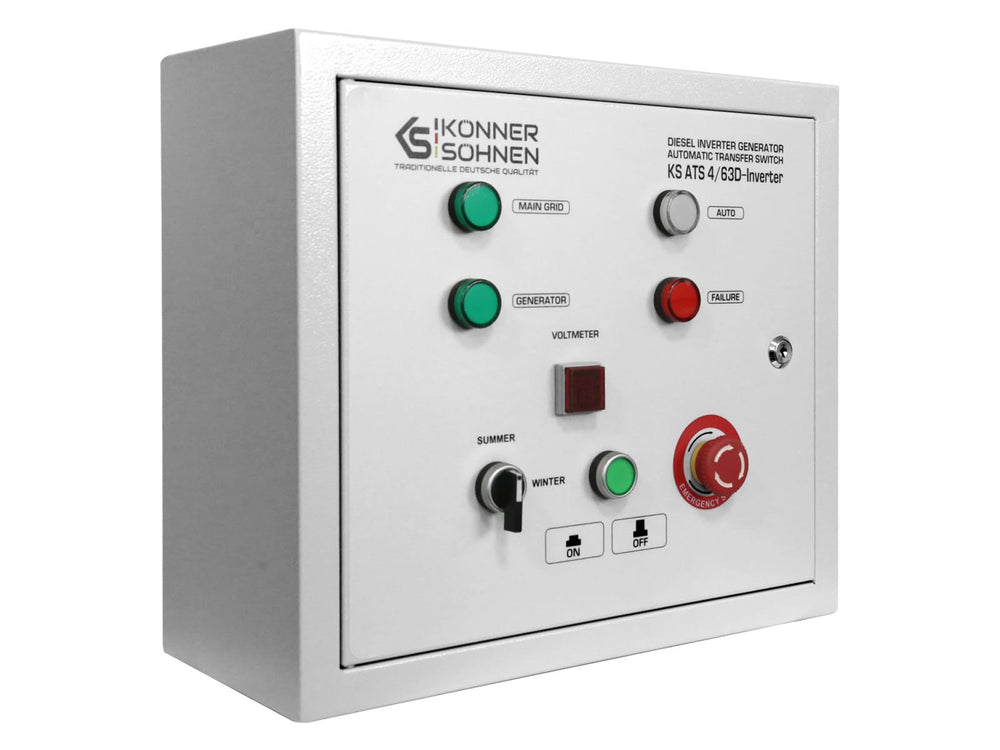

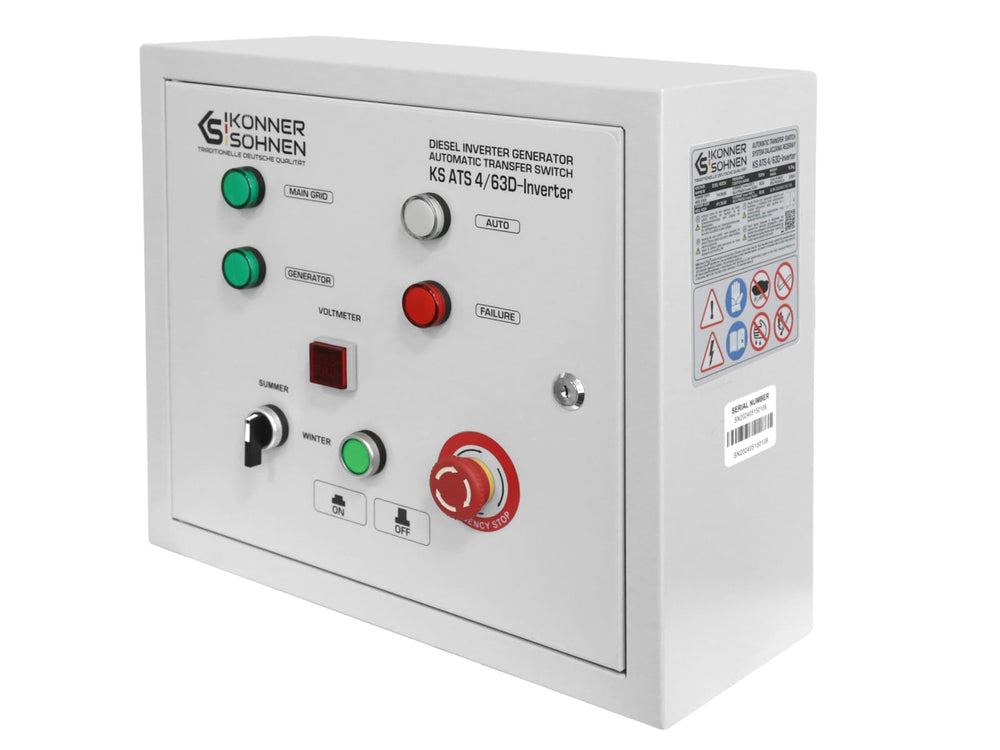

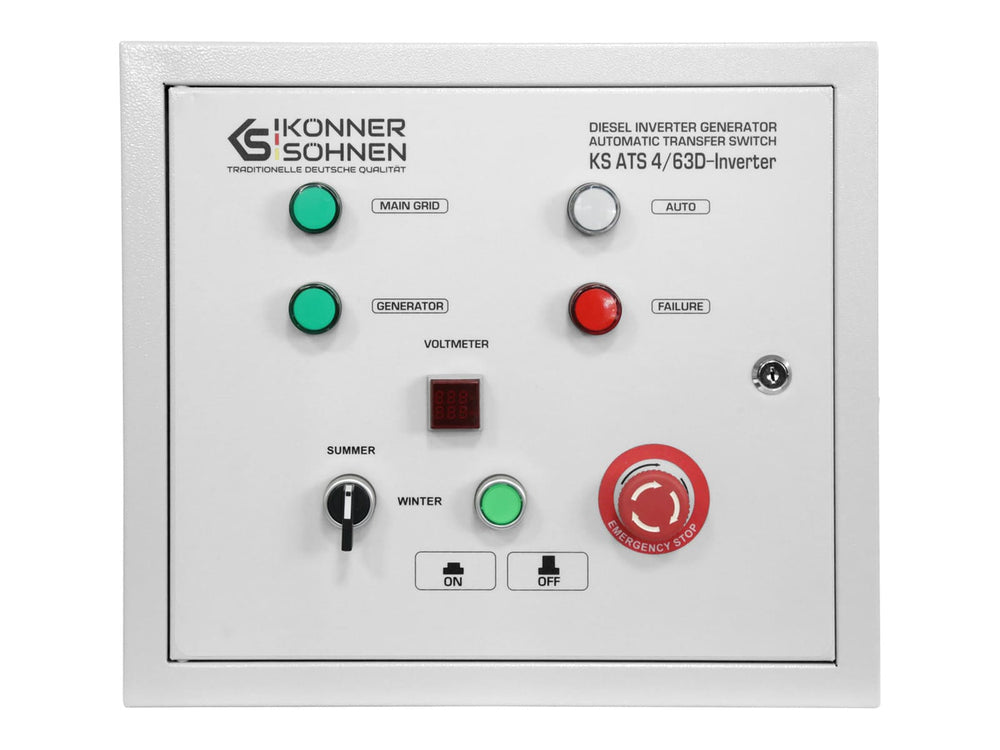

Automatic Transfer Switch KS ATS 4/63D-Inverter
568.00 лв
Automatic Transfer Switch KS ATS 4/63D-Inverter
568.00 лв
Automatic Transfer Switch KS ATS 4/63D-Inverter
Available
568.00 лв
Specification
| Working environment: | from -10°C to +55°C; humidity: ⩽60% |
| Voltage, V: | 230/400 |
Specification
| Power (230V), kW | 14,5 |
| Current (max) 230 V, A | 63 |
| Power 400V, kW | 41,5 |
| Current (max) 400 V, A | 63 |
| Working environment | from -10°C to +55°C; humidity: ⩽60% |
| Storage environment | from -10°C to +70°C; humidity: ⩽60% |
| Insulation class | F |
| Maximum battery charging current from the built-in power supply, A | 3 |
| Control cable length, m | 3 |
| Voltage, V | 230/400 |
| IP protection class | IP21 |
| Net dimensions (LxWxH), mm | 430×195×393 |
| Gross dimensions (LxWxH), mm | 450×215×415 |
| Net weight, kg | 9,3 |
| Gross weight, kg | 10.0 |
| SKU | KS ATS 4/63D-Inverter |
| Barcode | 4260405367764 |
Specification
Automatic Transfer Switch KS ATS 4/63D-Inverter
| Power (230V), kW | 14,5 |
| Current (max) 230 V, A | 63 |
| Power 400V, kW | 41,5 |
| Current (max) 400 V, A | 63 |
| Working environment | from -10°C to +55°C; humidity: ⩽60% |
| Storage environment | from -10°C to +70°C; humidity: ⩽60% |
| Insulation class | F |
| Maximum battery charging current from the built-in power supply, A | 3 |
| Control cable length, m | 3 |
| Voltage, V | 230/400 |
| IP protection class | IP21 |
| Net dimensions (LxWxH), mm | 430×195×393 |
| Gross dimensions (LxWxH), mm | 450×215×415 |
| Net weight, kg | 9,3 |
| Gross weight, kg | 10.0 |
| SKU | KS ATS 4/63D-Inverter |
| Barcode | 4260405367764 |
568.00 лв
