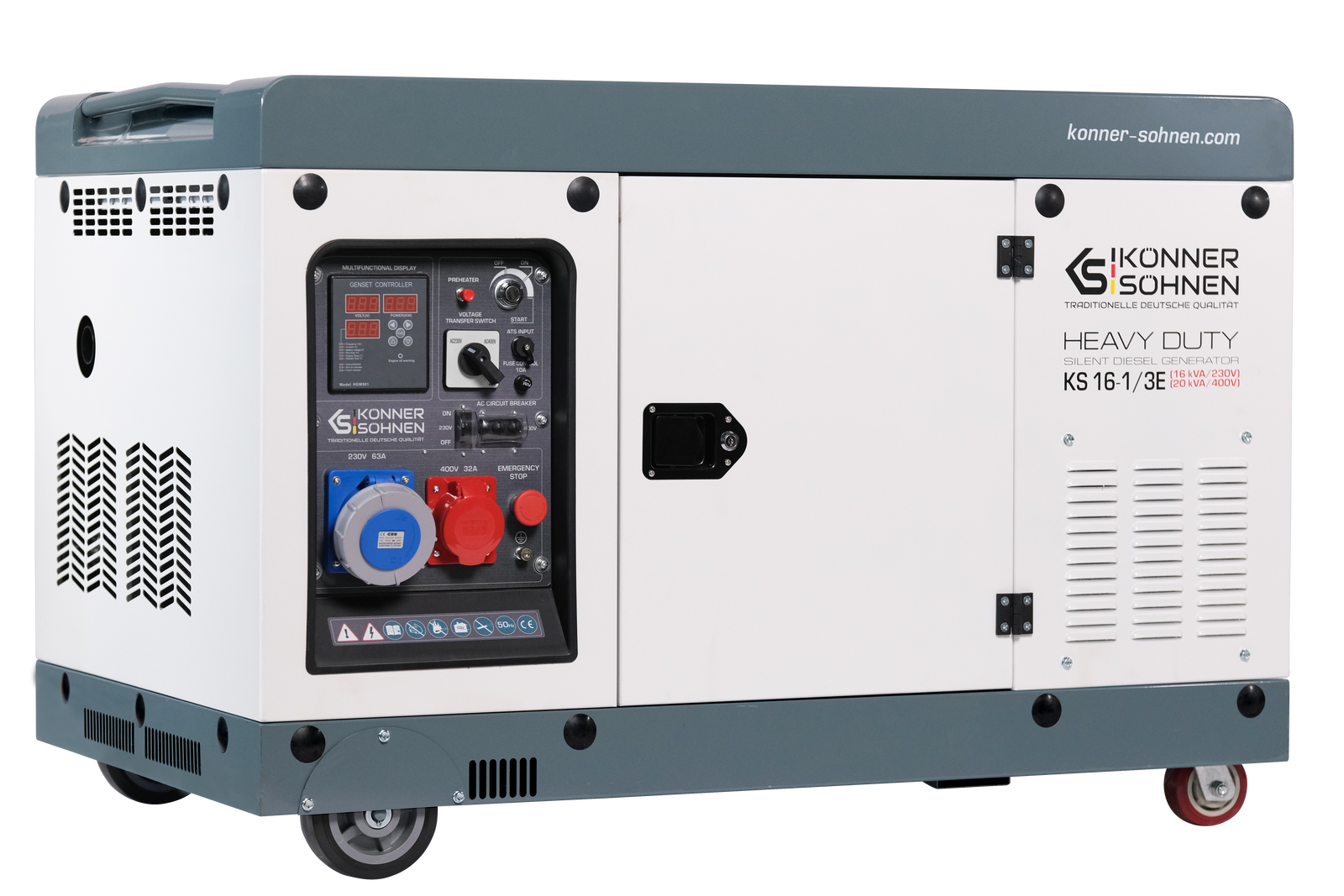

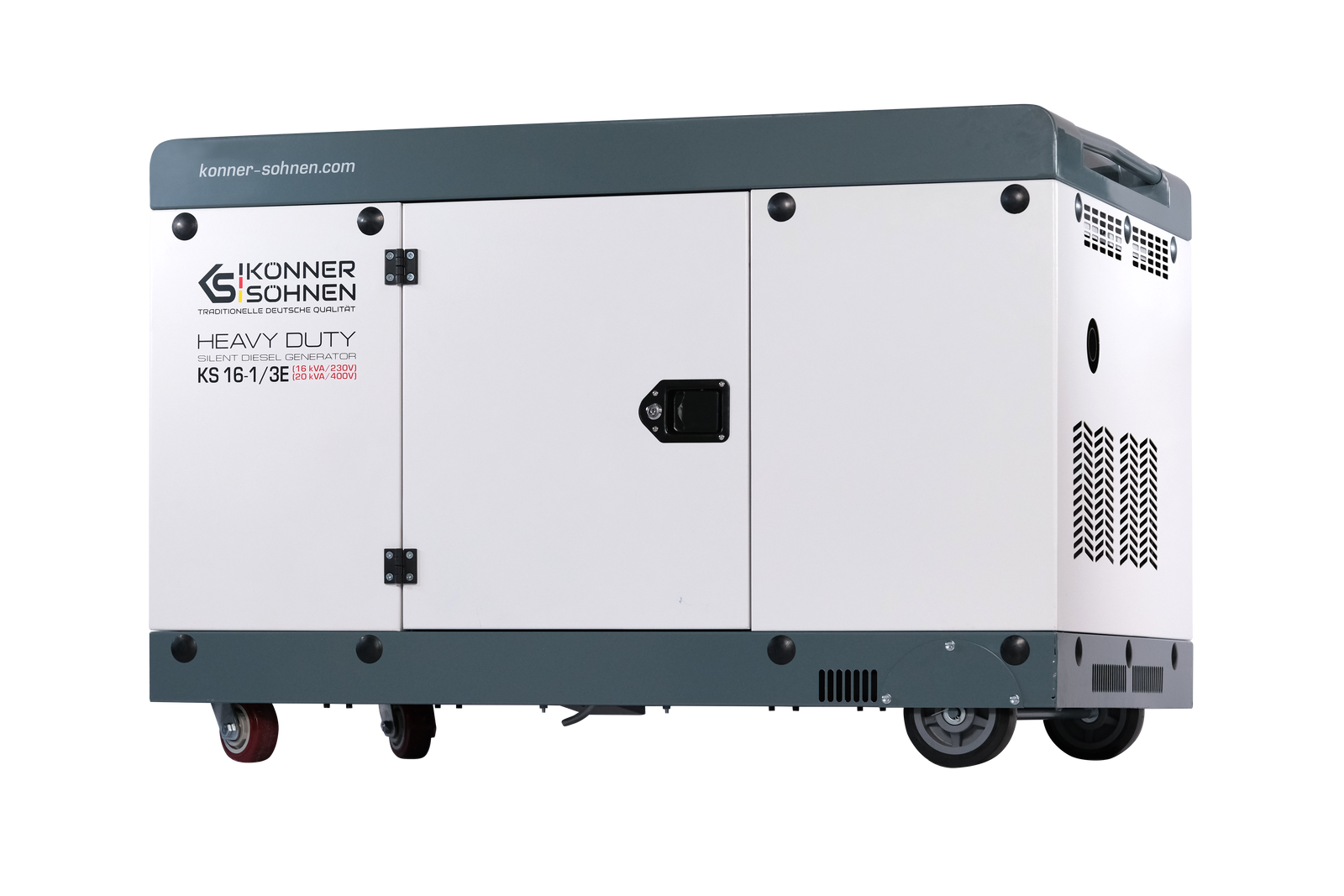

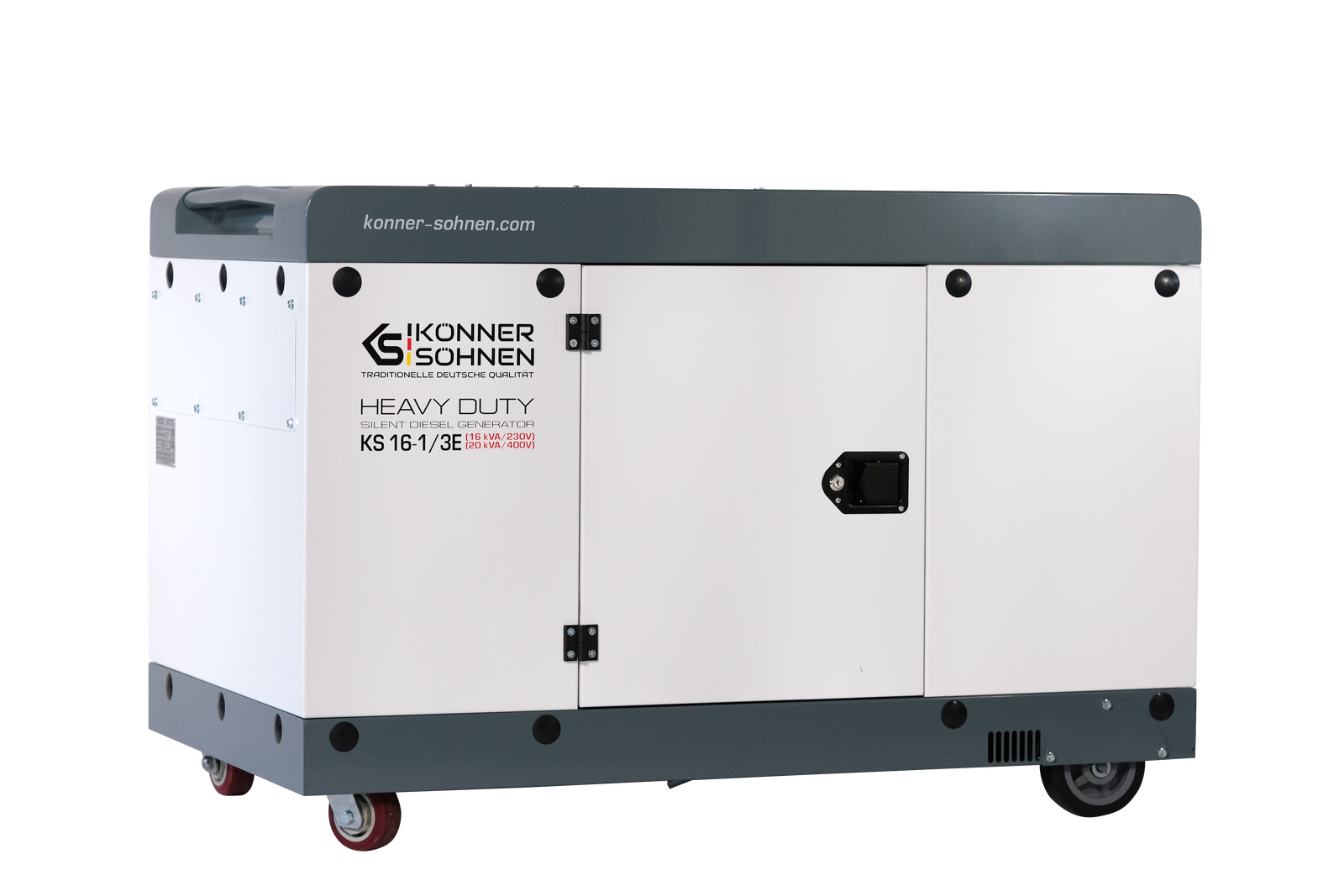

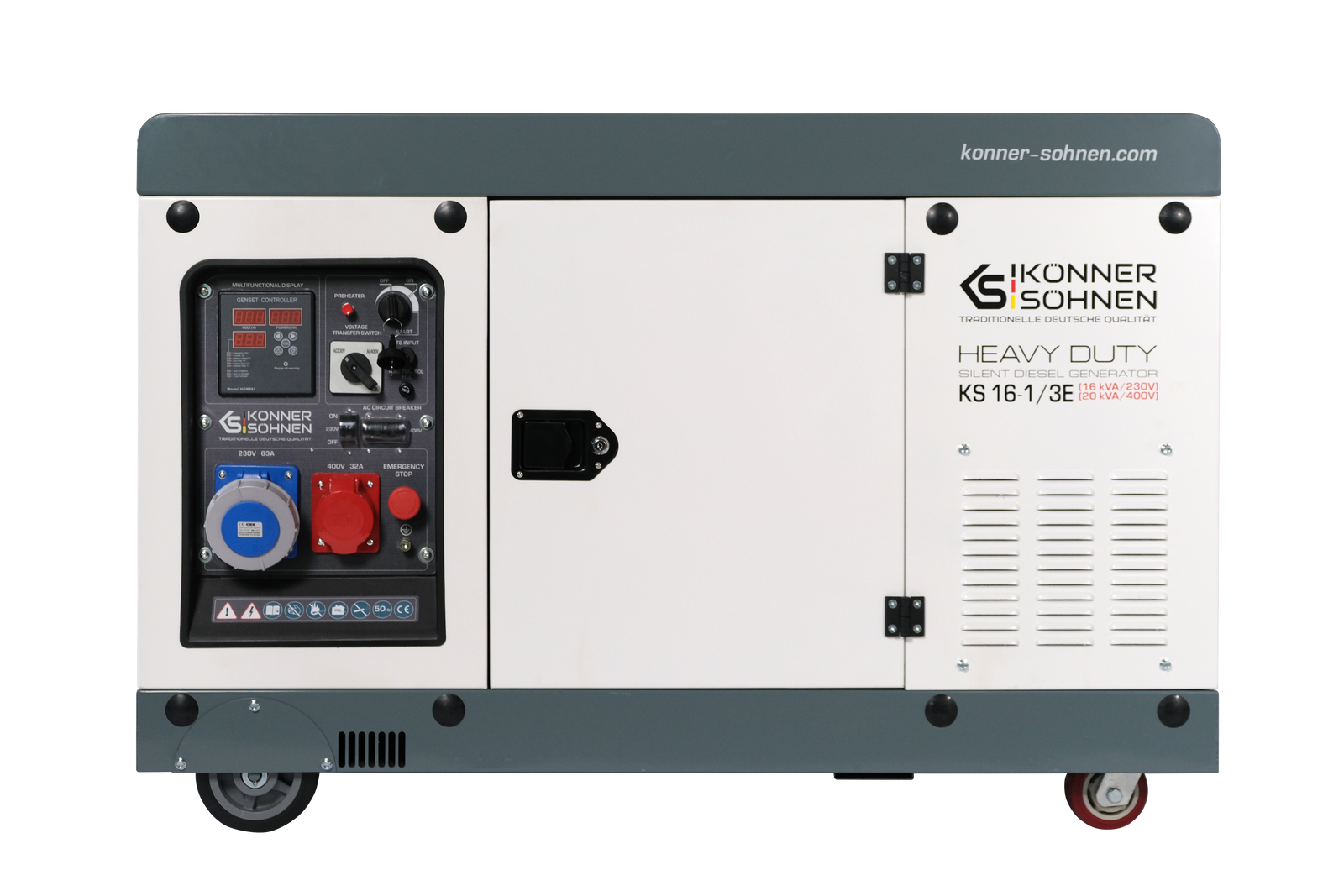

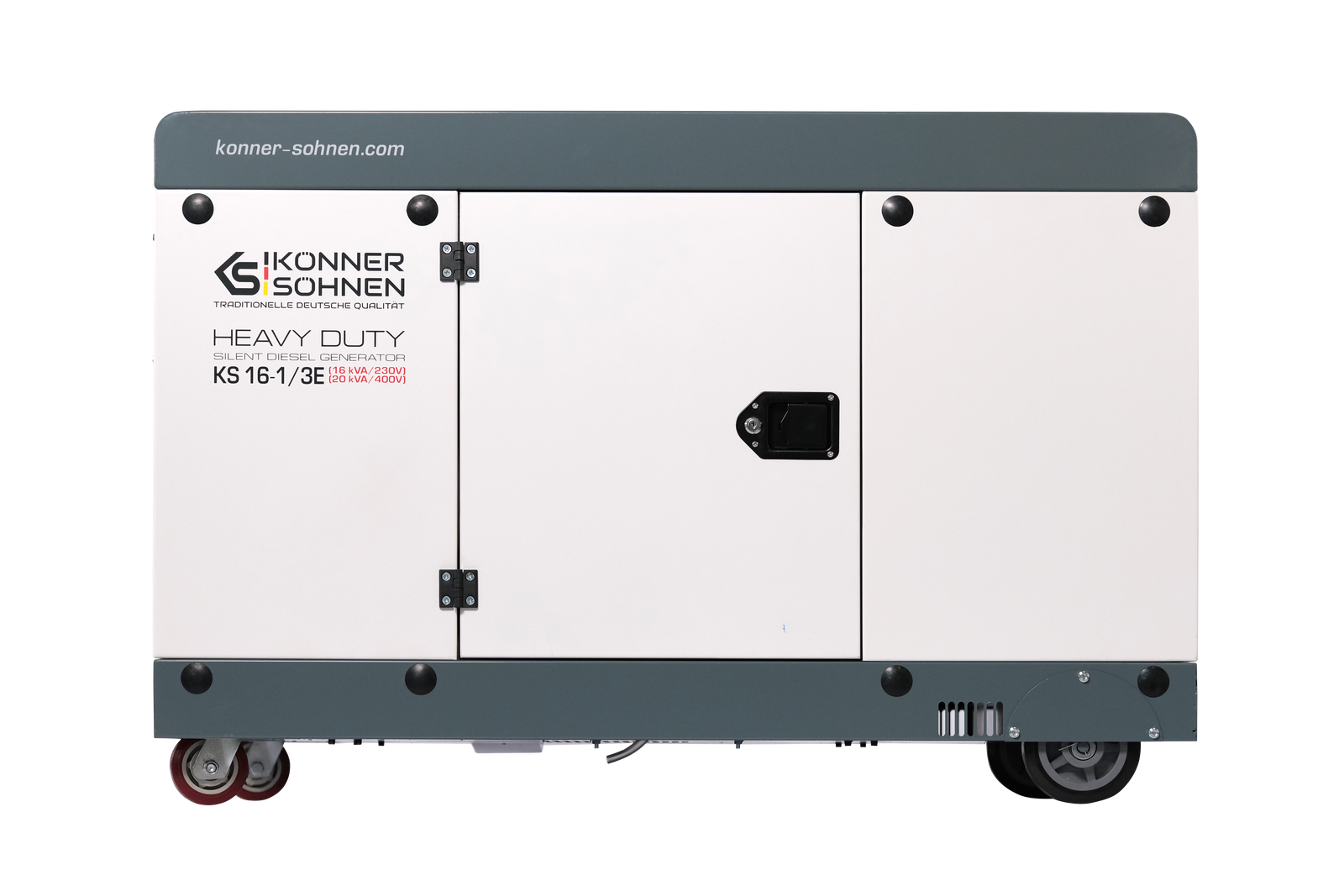

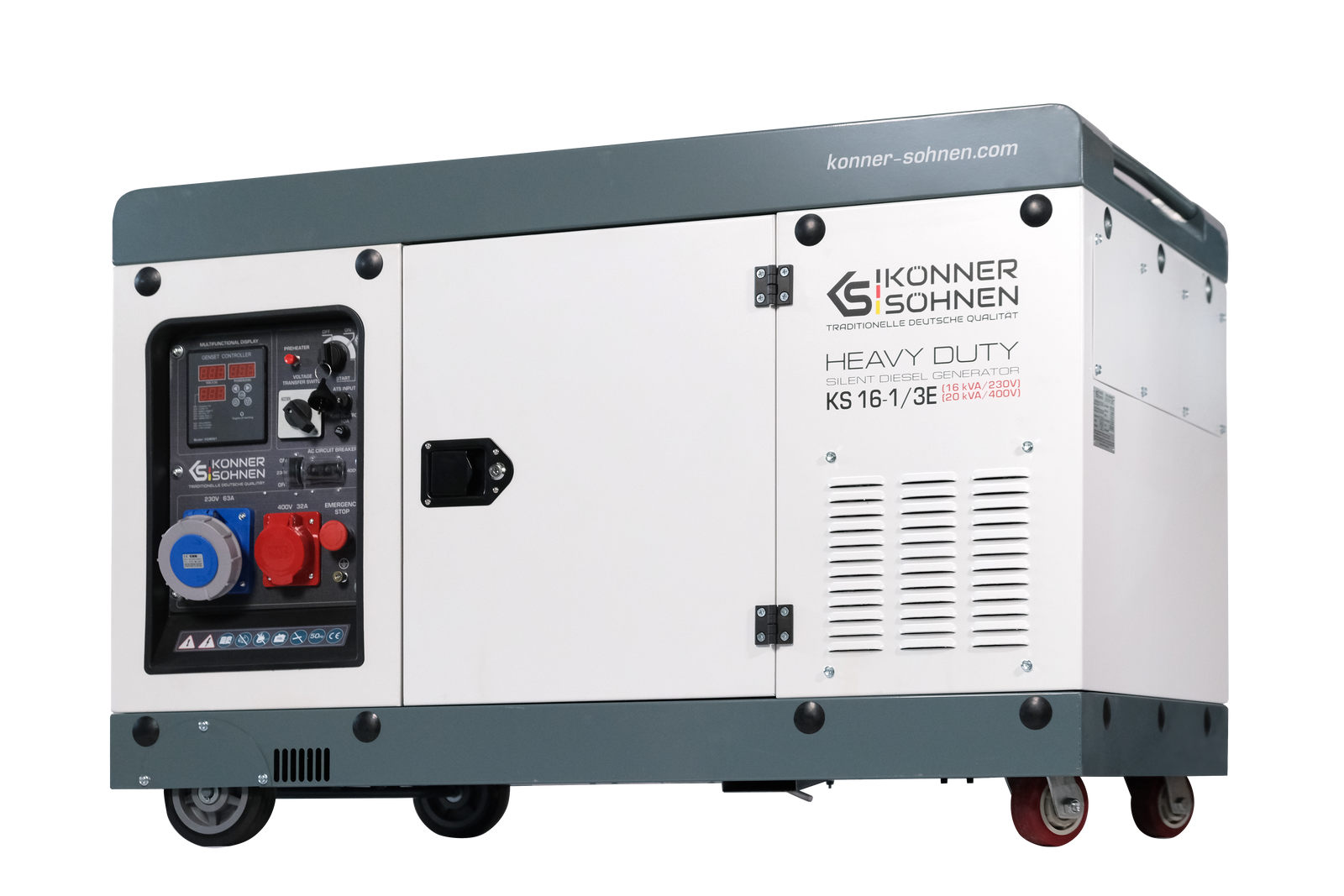

Diesel Generator KS 16-1/3E
UnavailableSpecification
| Frequency, Hz: | 50** |
| Max/Nominal power (230V), kVA: | 16/15 |
| Max/Nominal power (400V), kVA: | 20/18,75 |
| Fuel tank volume, l: | 30 |
| Fuel consumption***, l/h: | 3.36 (power 50%) |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kVA | 16/15 |
| Max/Nominal power (400V), kVA | 20/18,75 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 69.56/28.9 |
| Outlets | 1 x CEE 400 V 32 A, 1 x CEE 230 V 63 A |
| Fuel consumption***, l/h | 3.36 (power 50%) |
| LED display | Multifunctional digital control unit HGM501 |
| Noise level Lpa (7m)/Lwa, dB | 76/96 |
| Engine type | Diesel, 2-cylinder, 4-stroke with air cooling |
| Engine model | KS 1400HD |
| Engine speed, U/min | 3000 |
| Engine power, hp/kW | 30/22 |
| Preheater | + |
| Fuel tank volume, l | 30 |
| Crank case volume, l | 4 |
| Engine cylinder volume, cm3 | 1326 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Electric |
| Accumulator (A·h) | 45 |
| Battery charger | integrated |
| Output for ATS | + |
| Protection class | IP23 |
| Net dimensions (LxWxH), mm | 1320 × 820 × 880 |
| Gross dimensions (LxWxH), mm | 1330 × 830 × 930 |
| Net weight, kg | 363 |
| SKU | KS 16-1/3E |
| Barcode | 4260405368174 |
Features
The KS 16-1/3E diesel two-cylinder generator is a reliable solution for backup power supply to residential and commercial properties. It ensures uninterrupted work and comfort even without centralized electricity, making it an ideal choice for household use, construction, or business facilities as a backup power source.

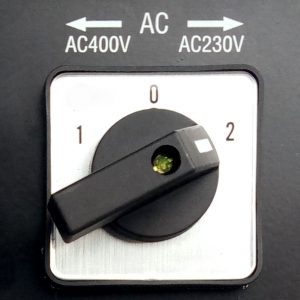

Thanks to the VTS phase-switching system, the generator can operate with both single-phase and three-phase power consumers with minimal power loss. Each mode has its own circuit breakers. There is no need to purchase two separate generators.
The engines used in the generators are manufactured under the license of DIMAX Int. GmbH and comply with strict European quality standards. The V-type engine is perfectly balanced, which contributes to quieter and longer operation of the generator. These engines stand out for their high power, durability, and fuel efficiency.
The ergonomic control panel, the capability to connect to an automatic start/stop system, and the low noise level make operating the generator as comfortable as possible. The emergency stop button, overload protection, overheating protection, and other safety features ensure safe operation.
The integrated pre-start heating system and powerful 45 Ah battery ensure quick and confident engine start, even during the coldest days when temperatures drop significantly below zero.
The soundproof housing significantly reduces noise levels during generator operation, enabling it to be used in residential areas without causing discomfort to others. Additionally, the housing protects the generator from moisture, dust, and other environmental factors, extending its lifespan.
By choosing a diesel generator with these features, you gain a reliable assistant always ready to supply electricity. Regardless of weather conditions or time of day, you can rely on its stable operation. When electricity is lost, reliability and power become critically important.
BRANDED ENGINE
2-IN-1 GENERATOR - 230V / 400V
ATS CONNECTION CAPABILITY
BACKUP POWER SOURCE
SMARTGEN MULTIFUNCTIONAL CONTROL UNIT
ENHANCED BATTERY
PRE-START HEATING
EMERGENCY STOP BUTTON
SOUNDPROOF HOUSING
EASY TRANSPORTATION
WARRANTY AND SERVICE MAINTENANCE

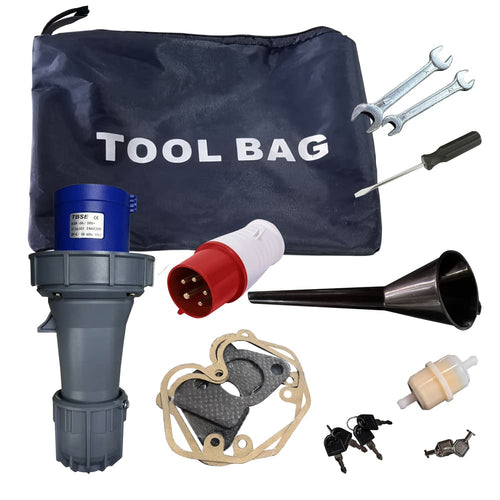

THE PACKAGE INCLUDES EVERYTHING REQUIRED
• Oil filling funnel
• Portable power plug 230V (63А)
• Plug 400V 32А
• Muffler and cylinder gaskets
• Fuel filter
• Open-end wrench 10×12 mm
• Open-end wrench 14×17 mm
• Screwdriver
Specification
Diesel Generator KS 16-1/3E
| Voltage, V | 230/400 |
| Max/Nominal power (230V), kVA | 16/15 |
| Max/Nominal power (400V), kVA | 20/18,75 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max.) 230/400 V, A | 69.56/28.9 |
| Outlets | 1 x CEE 400 V 32 A, 1 x CEE 230 V 63 A |
| Fuel consumption***, l/h | 3.36 (power 50%) |
| LED display | Multifunctional digital control unit HGM501 |
| Noise level Lpa (7m)/Lwa, dB | 76/96 |
| Engine type | Diesel, 2-cylinder, 4-stroke with air cooling |
| Engine model | KS 1400HD |
| Engine speed, U/min | 3000 |
| Engine power, hp/kW | 30/22 |
| Preheater | + |
| Fuel tank volume, l | 30 |
| Crank case volume, l | 4 |
| Engine cylinder volume, cm3 | 1326 |
| Power output controller | Intelligent voltage stabilization system AVR |
| Engine start | Electric |
| Accumulator (A·h) | 45 |
| Battery charger | integrated |
| Output for ATS | + |
| Protection class | IP23 |
| Net dimensions (LxWxH), mm | 1320 × 820 × 880 |
| Gross dimensions (LxWxH), mm | 1330 × 830 × 930 |
| Net weight, kg | 363 |
| SKU | KS 16-1/3E |
| Barcode | 4260405368174 |
**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz
***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
