Diesel generator "Könner & Söhnen" KS 8100HDE (EURO V)

Diesel generator "Könner & Söhnen" KS 8100HDE (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 8100HDE (EURO V)
Brand: Könner & Söhnen
SKU: 4260405362110
Price: 2535.0 BGN
Availability: OutOfStock

Unavailable

2,535.00 лв

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	6.5/6
Fuel tank volume, l:	11
Avg. working time (power 50%), h***:	6.9

Specification

Voltage, V	230
Max/Nominal power (230V), kW	6.5/6
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	28.26
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Avg. working time (power 50%), h***	6.9
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 480HD-V
Engine power, hp/kW	14.0/10.3
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	456
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	-
Protection class	IP23M
Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	760×550×660
Net weight, kg	117
Gross weight, kg	125.0
SKU	KS 8100HDE
Barcode	4260405362110

Benefits

Increased engine life thanks to the use of high-quality materials
Pre-start heating ensures easy starting even in low ambient temperatures
Maintains stable output voltage: the AVR automatically regulates the output voltage, keeping it at a constant level
The display shows important information about the generator's operation for monitoring its performance
The reinforced frame makes the generator resistant to damage during operation and transportation

Features

01 Könner & söhnen engines

02 Increased engine resource

03 Ergonomic control panel

04 Preheater function

05 Avr

06 Enforced frame

07 Dampers to lower vibration

08 Accessories set

09 Optional KS 6-9D KIT

Könner & söhnen engines

Engines for both diesel and gasoline generators are manufactured under the license of DIMAX Int. GmbH and are marked with K&S logo. High power of engines in relation to the alternator allows to receive the declared power output and maintain stable work at any load. All engines are tested for continuous operation, and then disassembled and examined for trouble-shooting purposes. Each engine and each generator have an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the latest EURO V emission standards.

Increased engine resource

Könner & Söhnen® diesel generators of the "HEAVY DUTY" series have an increased motor resource - so they have a longer service life, can work for more hours without a break. The engine resource exceeds 3000 working hours, this is confirmed by multi-hour, multi-level tests and warranty. To show high performance, machines should be maintained properly.

Ergonomic control panel

Convenient and ergonomic generator's control panel allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintain the generator, extending the operation life.

Preheater function

All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.

Avr

“Könner & Söhnen” series diesel generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the voltage at a constant value of 230 V and protects against unwanted short circuits.

Enforced frame

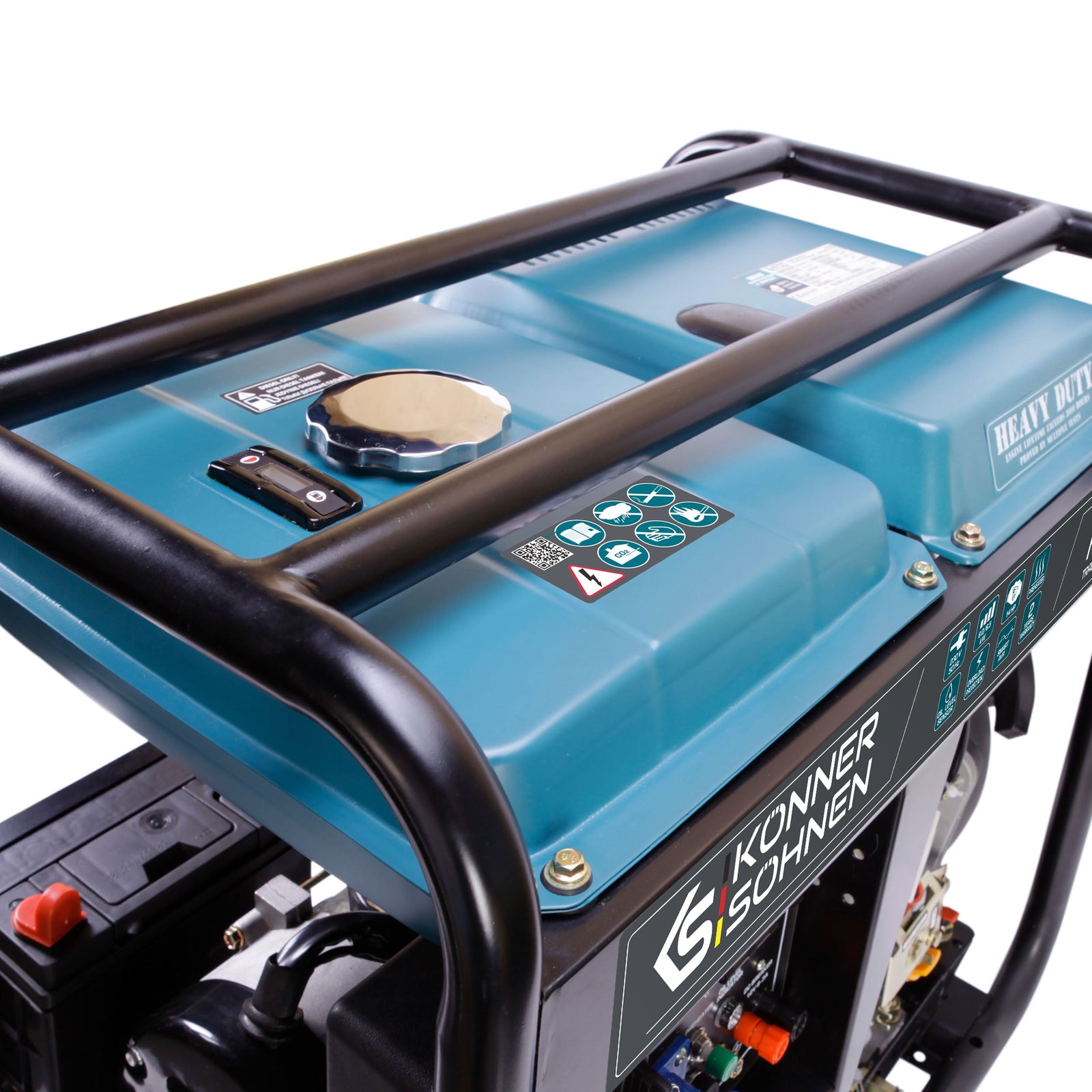

Additional frame reinforcement with the upper protective strips allows HEAVY DUTY professional series generators to operate in a more rigid mode. The reinforced frame structure protects the tank against damage during operation and transportation.

Dampers to lower vibration

All models of Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. The working generator will not damage the floor covering, and the frame coating will not be scratched.

Accessories set

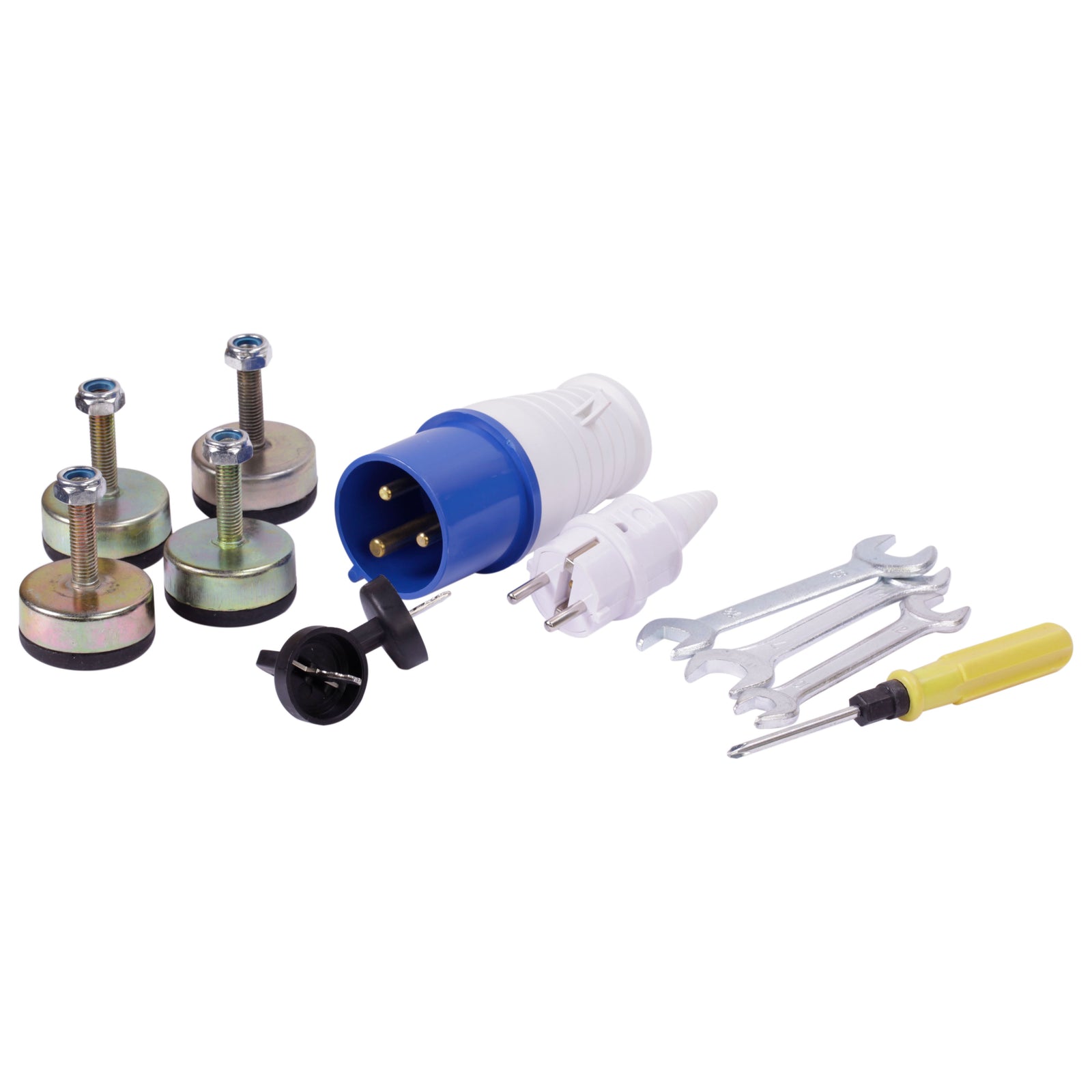

Generator is equipped with additional accessories: a portable 2P+PE 16A 230V power plug, a portable 2P+E 230V 32A power plug, a 8x10mm hook key, 12x14mm and 17x19mm keyholes and a two way 6.0mm PH2 screwdriver.

Optional KS 6-9D KIT

Transportation kit KS 6-9D KIT includes: wheels – 4 pcs.

Specification

Diesel generator "Könner & Söhnen" KS 8100HDE (EURO V)

Voltage, V	230
Max/Nominal power (230V), kW	6.5/6
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	28.26
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A
Avg. working time (power 50%), h***	6.9
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 480HD-V
Engine power, hp/kW	14.0/10.3
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	456
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	-
Protection class	IP23M
Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	760×550×660
Net weight, kg	117
Gross weight, kg	125.0
SKU	KS 8100HDE
Barcode	4260405362110

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
