2-cylinders gasoline generator "Könner & Söhnen" KS 15-1E ATSR thumbnail

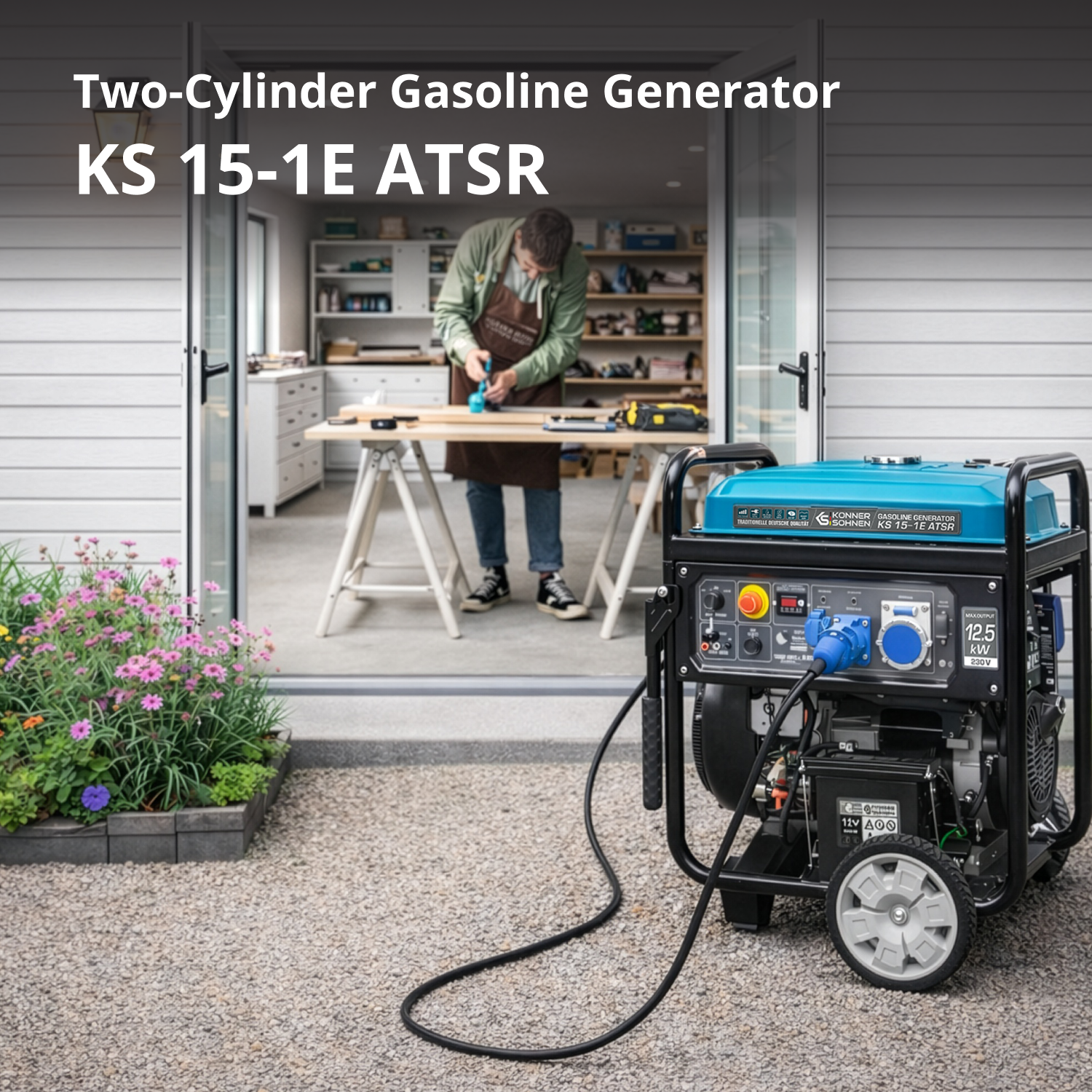

2-cylinders gasoline generator "Könner & Söhnen" KS 15-1E ATSR

2-cylinders gasoline generator "Könner & Söhnen" KS 15-1E ATSR

Name: 2-cylinders gasoline generator "Könner & Söhnen" KS 15-1E ATSR
Brand: Könner & Söhnen
SKU: 4260405363438
Price: 6267.0 BGN
Availability: InStock

Available

6,267.00 лв

Specification

Voltage, V:	230
Max power, kW:	12.5
Nominal power, kW:	12.0
Engine start:	Electric

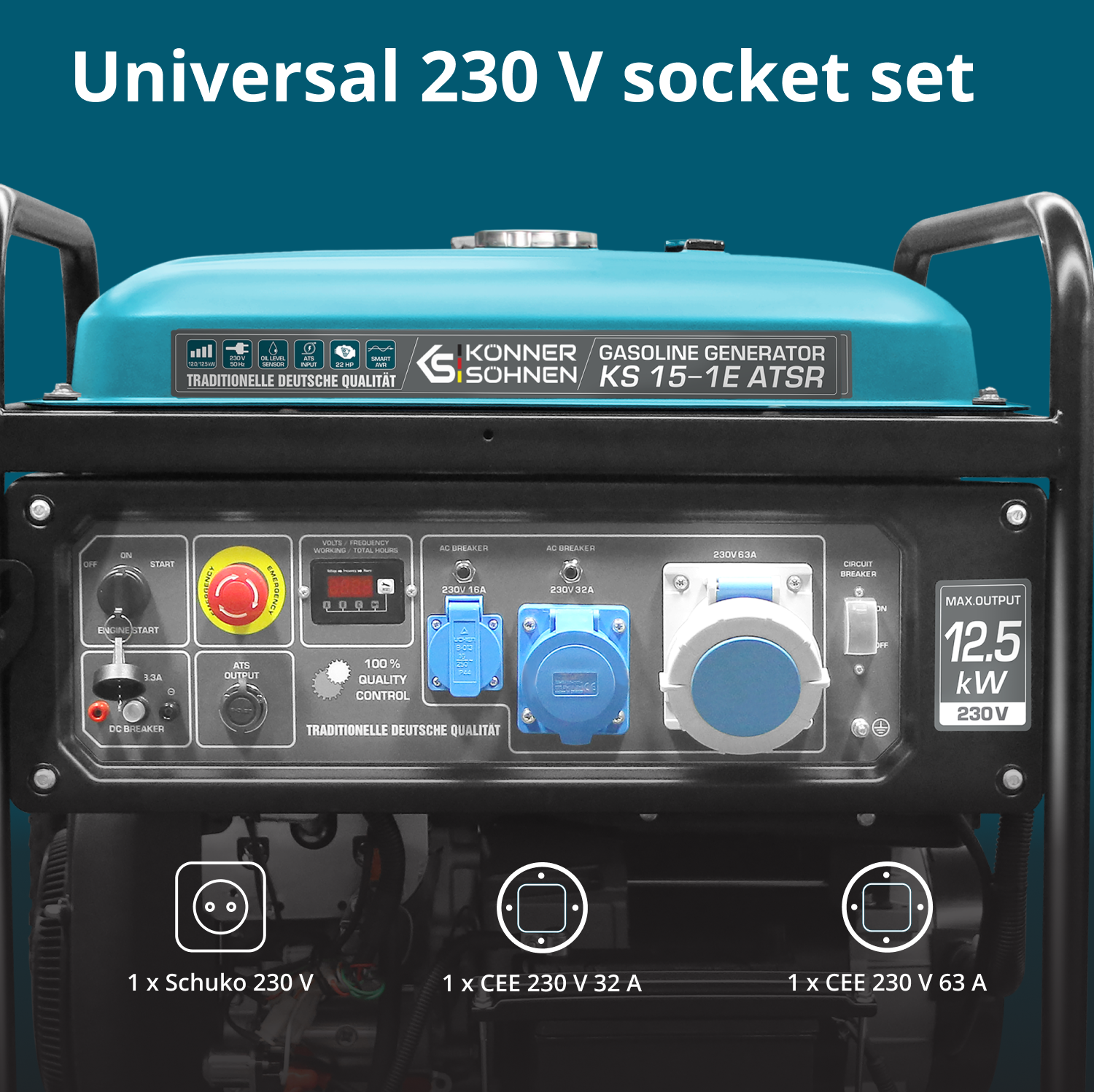

Outlets:	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A

Specification

Voltage, V	230
Max power, kW	12.5
Nominal power, kW	12.0
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	53
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	72/97
Power output DC, V/А	+
Engine model	KS 780
Engine type	Gasoline powered two-cylinder, four-stroke air-cooled
Engine power, hp/kW	22.0/16.18
Fuel type	Gasoline
Crank case volume, l	1.5
Engine cylinder volume, cm3	750
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Accumulator (A·h)	36
Alternator winding	Copper
Protection class	IP23M

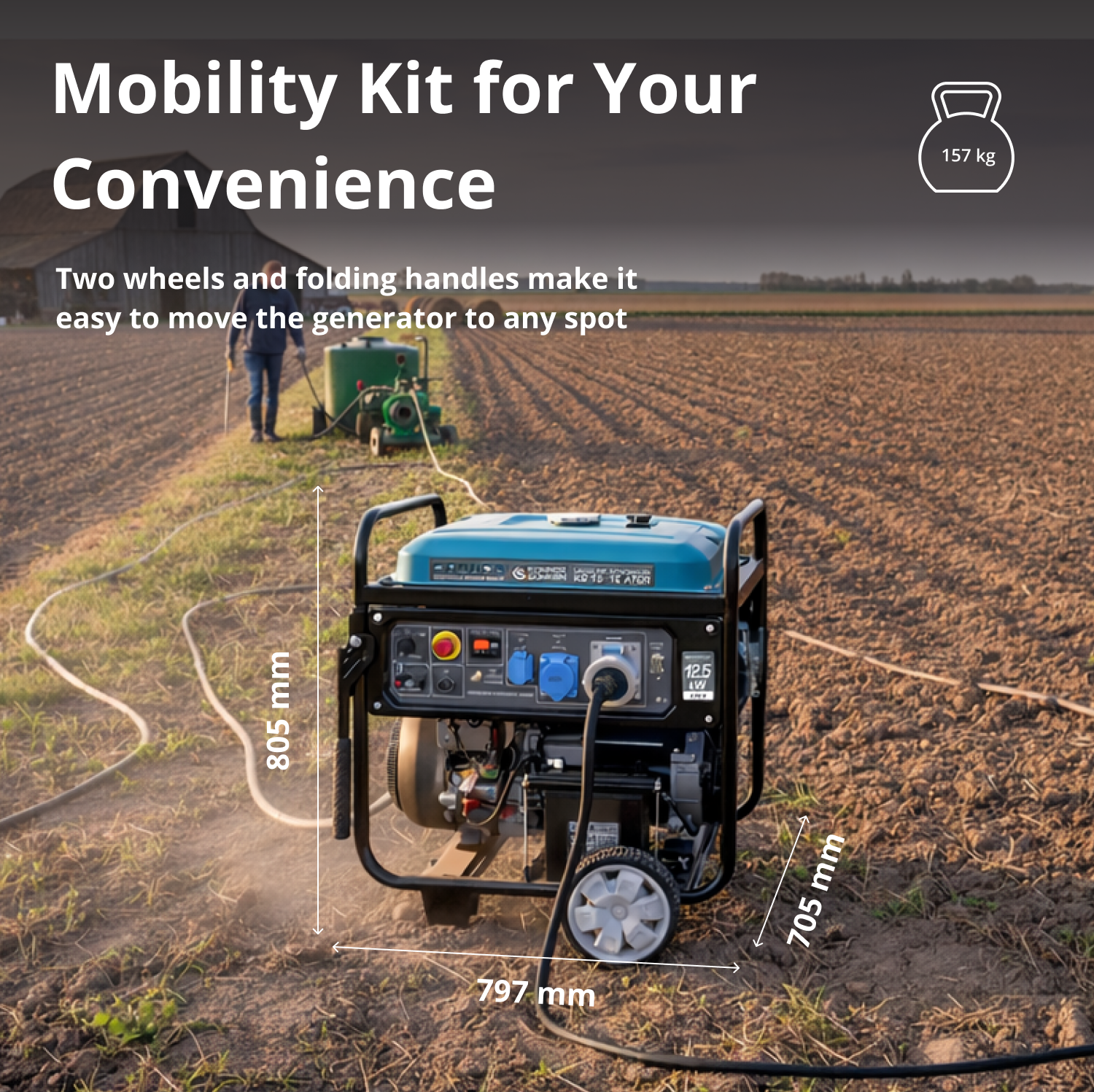

Net dimensions (LxWxH), mm	797x705x805
Gross dimensions (LxWxH), mm	807x715x905
Net weight, kg	155
Gross weight, kg	170.0
SKU	KS 15-1E ATSR
Barcode	4260405363438

Benefits

Autonomy: an ideal option for use in locations without access to the power grid or with frequent power outages
Quick start: the generator starts quickly and easily, even in cold weather
Generators with larger steel fuel tanks (55 L)
Enhanced safety: the multifunctional LED display will alert you to low oil levels or generator overloadhave an extended run time
Convenience and comfort: by connecting an ATS, you won't need to manually switch cables or start the generator when the power goes out

Features

01 High-performance engine

02 Ergonomic control panel

03 Ats output

04 Alternator with 100% copper winding

05 Steel tank

High-performance engine

Powerful and reliable 2-cylinders air-cooled engine (22 HP), high-performance and costeffective, and conform to European quality standards (including exhaust emissions and noise). Each engine has a corporate K&S stamp and an individual serial number in order to ensure the quality control of manufacture and after-sales service.

Ergonomic control panel

The user-friendly ergonomic control panel allows easy control of the whole device, requires no special skills, and is equipped with sockets designed for removal of full power delivered by the generator and modern LED- display (hour meter, frequency, voltage, oil alarm). PaneI is equipped with engine emergency switc.

Ats output

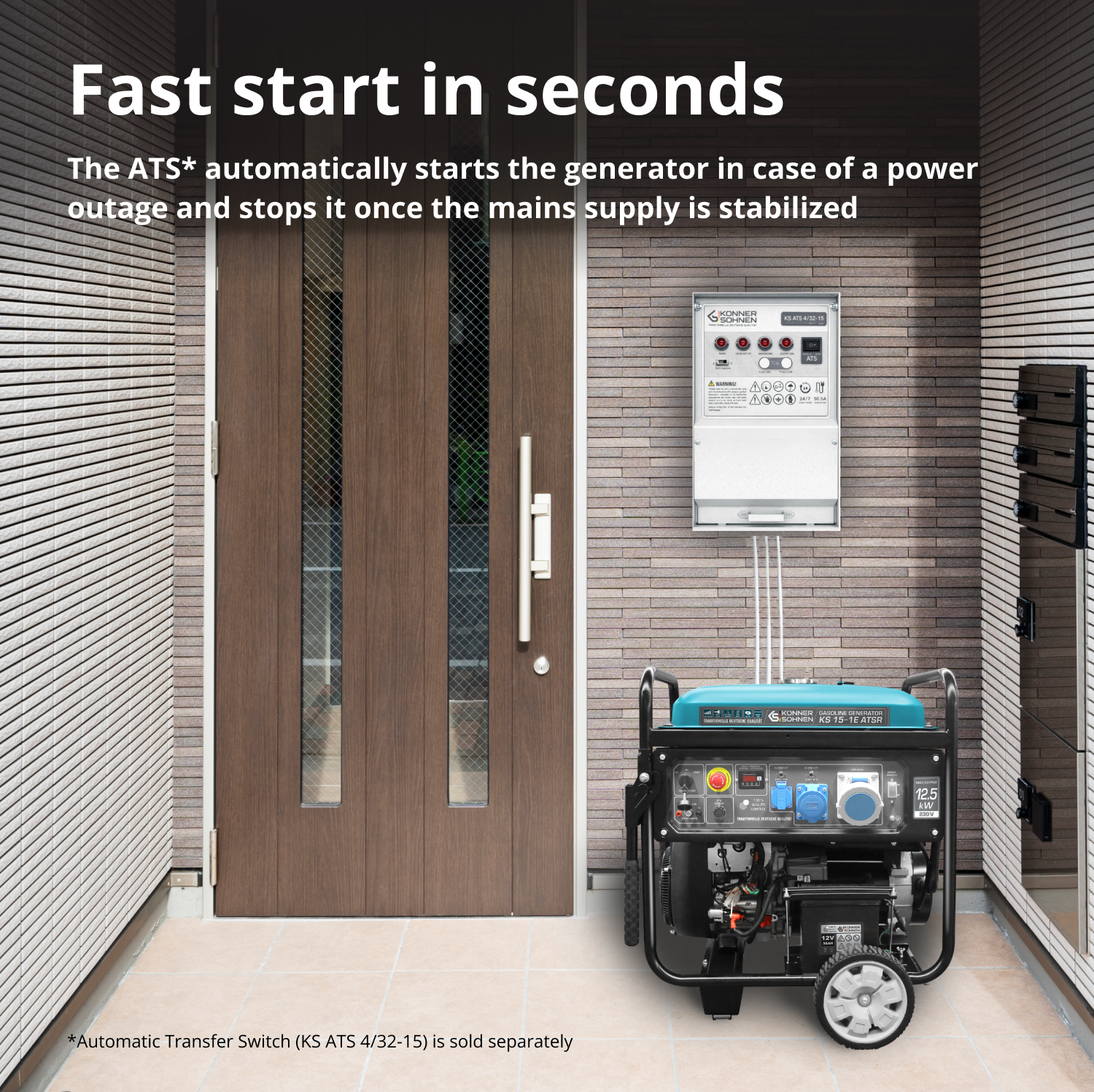

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

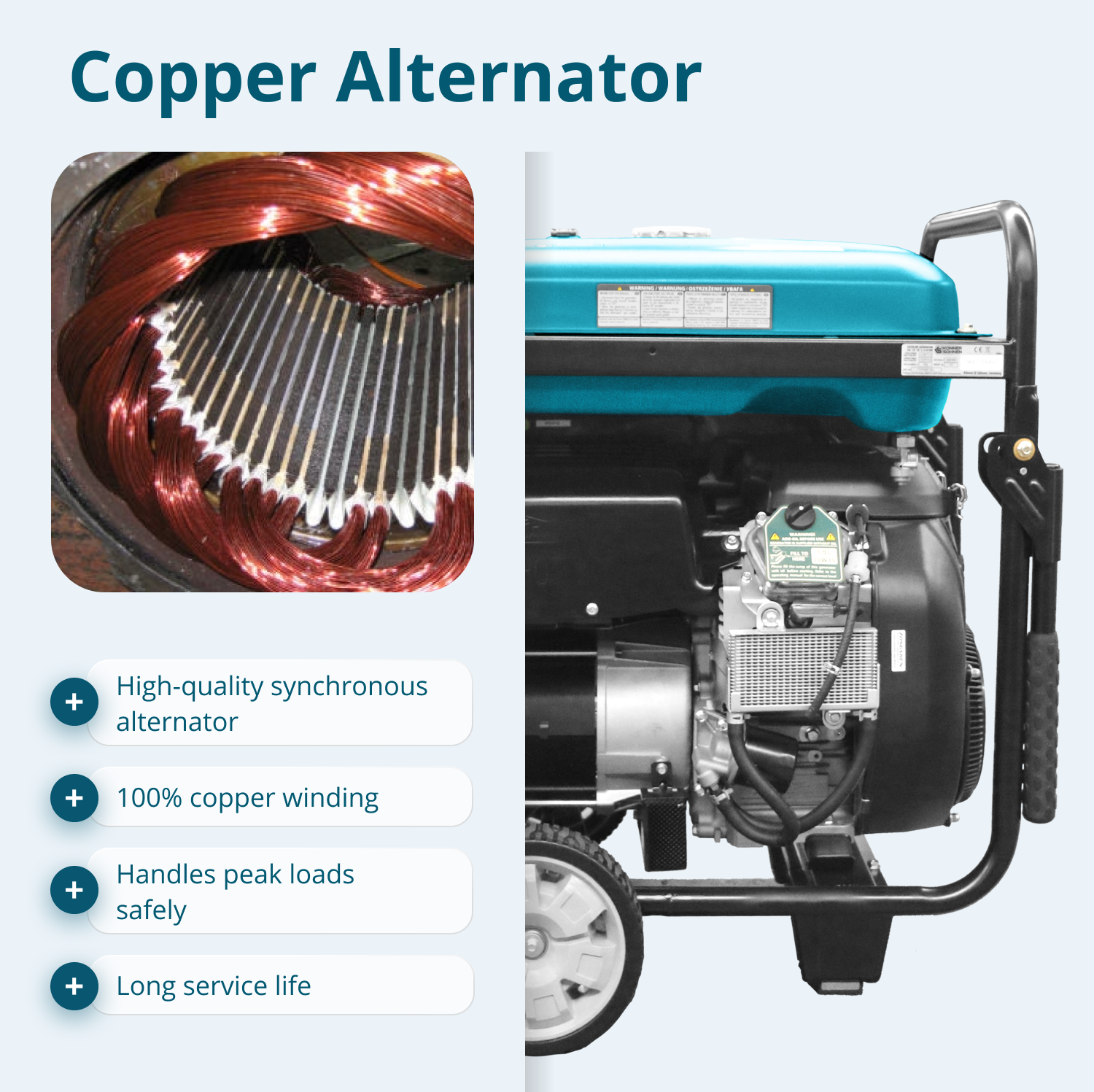

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

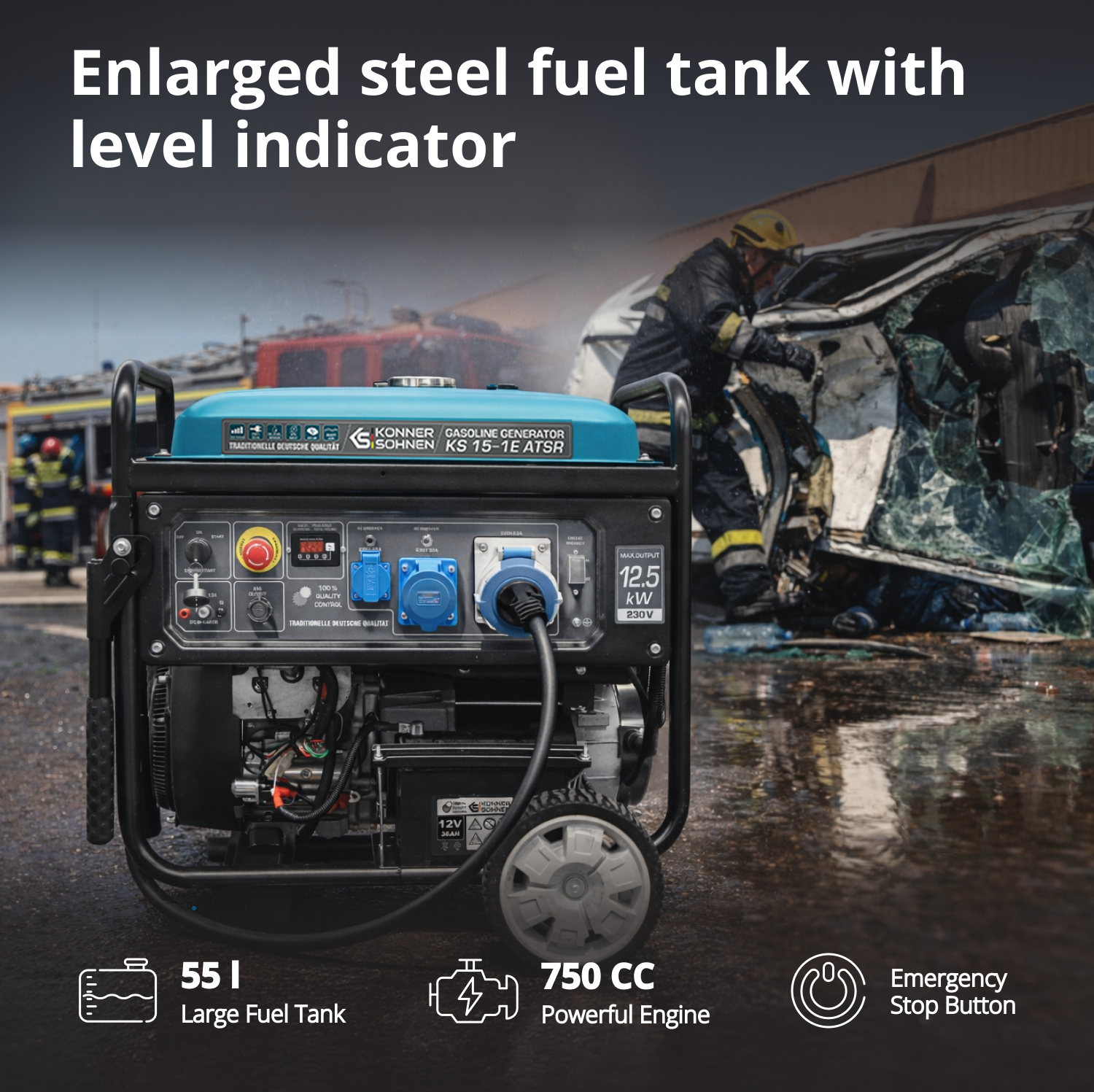

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank (55 l), which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Specification

2-cylinders gasoline generator "Könner & Söhnen" KS 15-1E ATSR

Voltage, V	230
Max power, kW	12.5
Nominal power, kW	12.0
Power factor, cosφ	1
Frequency, Hz	50**
Current (max), A	53
Outlets	1 x Schuko 230 V, 1 x CEE 230 V 32 A, 1 x CEE 230 V 63 A
Fuel tank volume, l	55
LED display	Voltage, frequency, working hours, oil alarm
Noise level Lpa (7m)/Lwa, dB	72/97
Power output DC, V/А	+
Engine model	KS 780
Engine type	Gasoline powered two-cylinder, four-stroke air-cooled
Engine power, hp/kW	22.0/16.18
Fuel type	Gasoline
Crank case volume, l	1.5
Engine cylinder volume, cm3	750
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Electric
Accumulator (A·h)	36
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	797x705x805
Gross dimensions (LxWxH), mm	807x715x905
Net weight, kg	155
Gross weight, kg	170.0
SKU	KS 15-1E ATSR
Barcode	4260405363438

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
