Automatic Transfer Switch KS ATS 4/100HD-O

Name: Automatic Transfer Switch KS ATS 4/100HD-O
Brand: Könner & Söhnen
SKU: 4260405365937
Price: 548.0 BGN
Availability: OutOfStock

Unavailable

548.00 лв

Specification

Working environment:	from -20 to + 45 °С; humidity: ⩽50%
Voltage, V:	230/400

Features

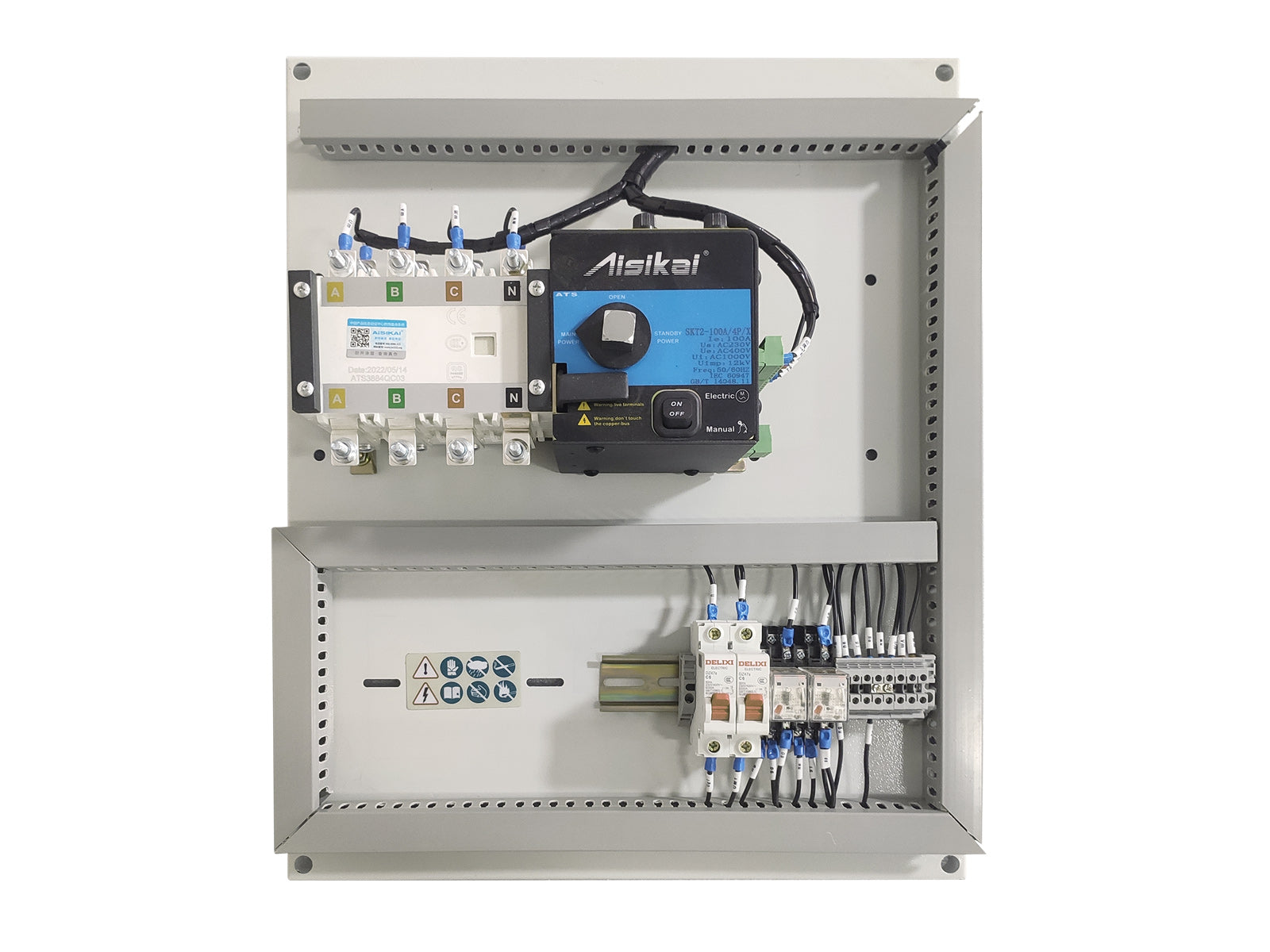

The KS ATS 4/100HD-O ATS unit (Automatic Transfer Switch) from the German brand “Könner & Söhnen” automatically starts the power station and transfers load to it when the main power source is turned off and automatically stops the power station when the central power supply is restored. It is compatible with Könner & Söhnen diesel power stations. The ATS unit can operate both in automatic and in manual mode.

PROGRAMMABLE LOGIC CONTROLLER OF THE ATS UNIT:

Universal design allows ATS unit connection to single- and three-phase networks
Automatic/manual operation
Motor-operated switch
Terminal block for control cables

Specification

Automatic Transfer Switch KS ATS 4/100HD-O

Peak power demand, W	18
Power (230V), kW	23
Current (max) 230 V, A	100
Power 400V, kW	55
Current (max) 400 V, A	100
Working environment	from -20 to + 45 °С; humidity: ⩽50%
Storage environment	from -30°C to +70°C; humidity: ⩽50%
Insulation class	AC1.0KV/1min 1mA
Voltage, V	230/400
IP protection class	IP44
Net dimensions (LxWxH), mm	515x415x150
Net weight, kg	5
Gross weight, kg	5.0
SKU	KS ATS 4/100HD-O
Barcode	4260405365937
