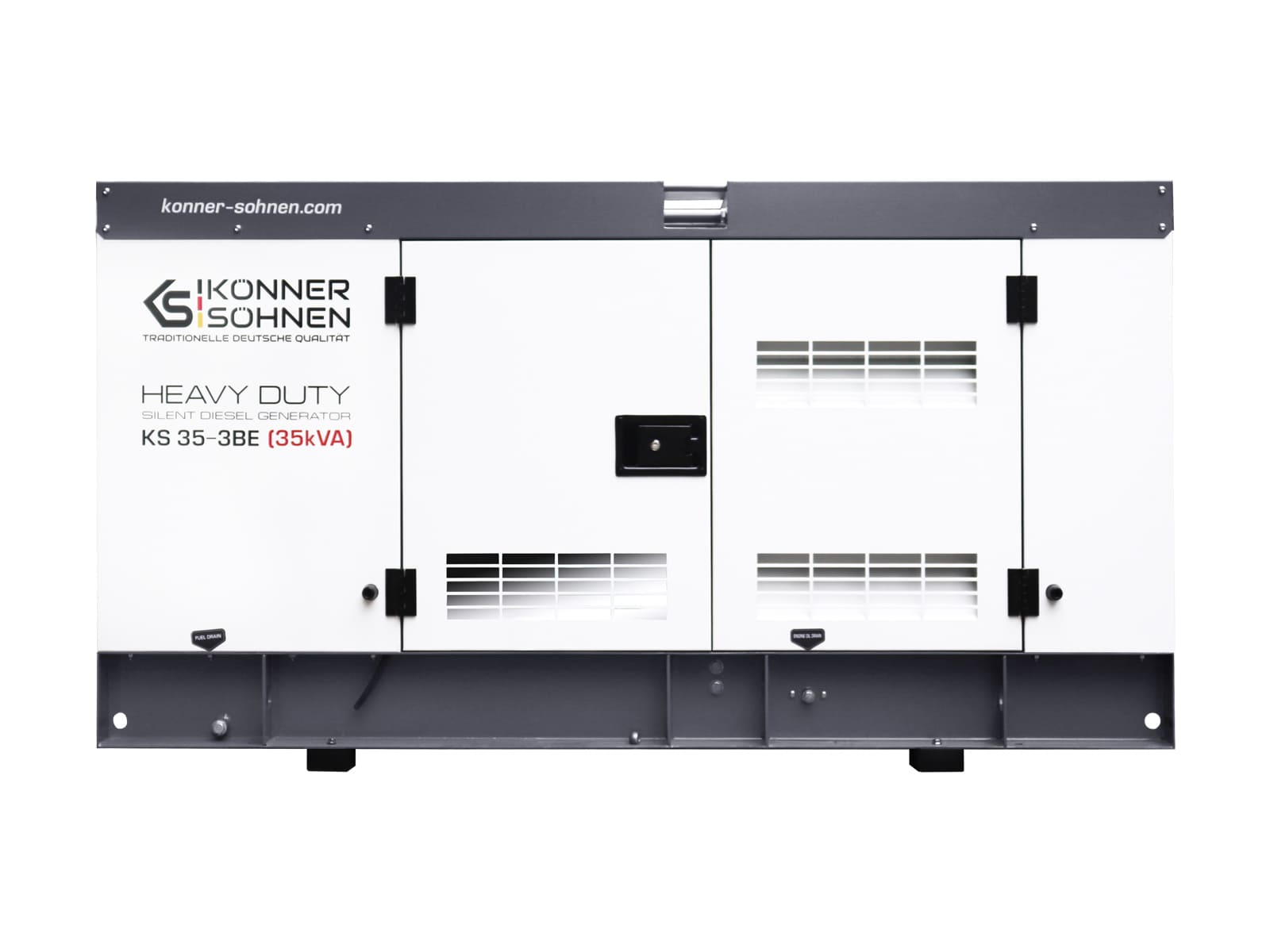

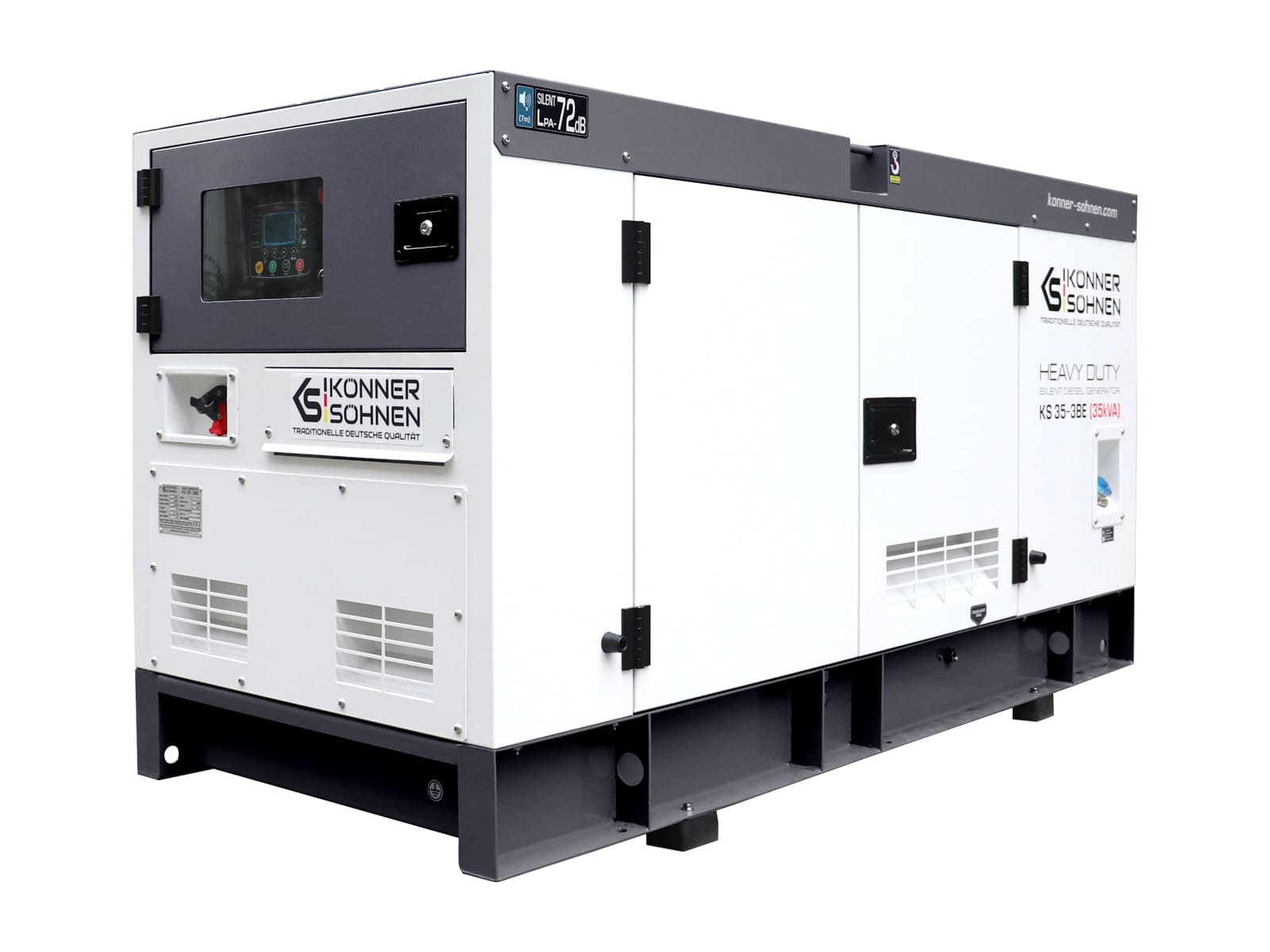

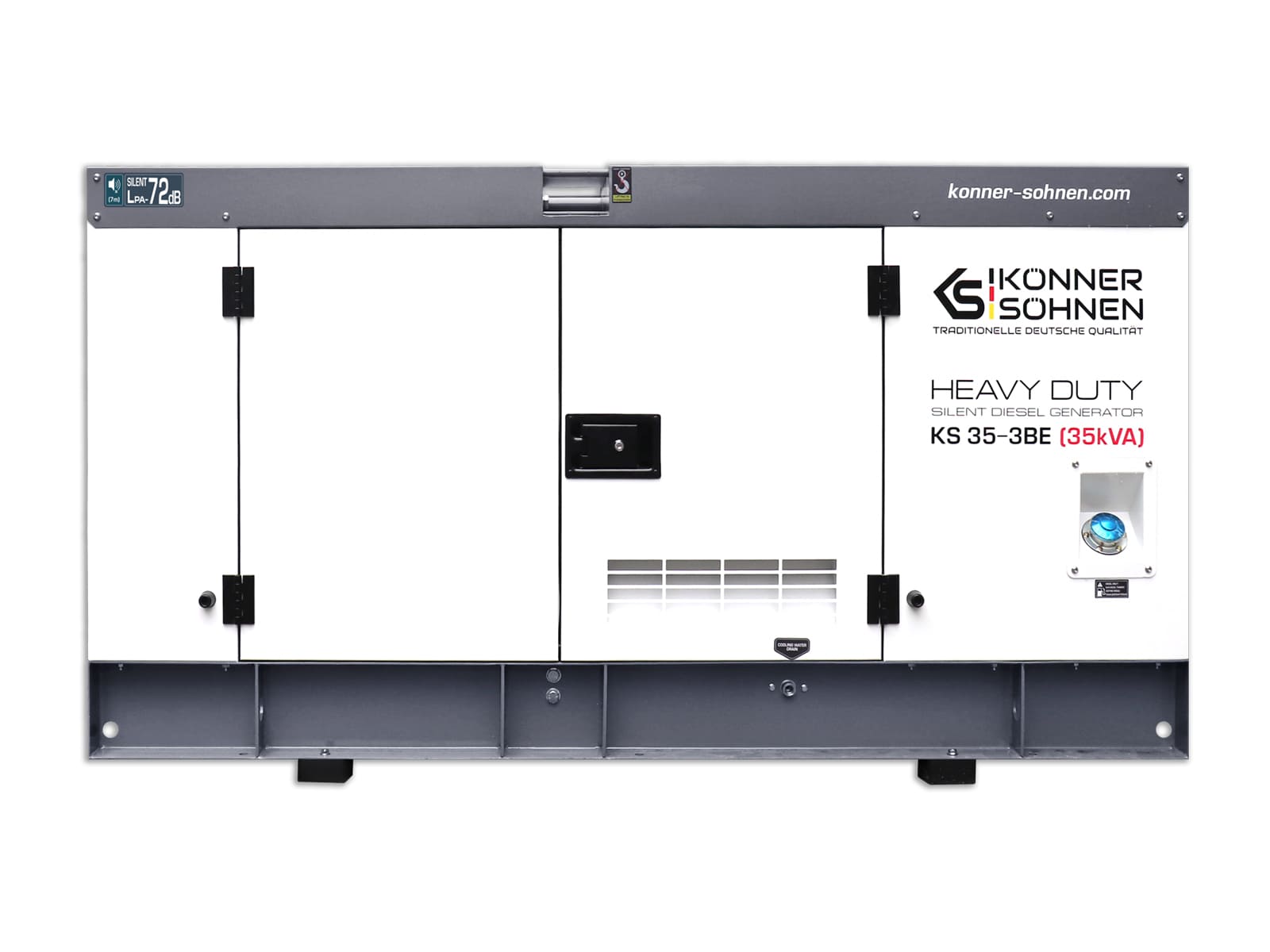

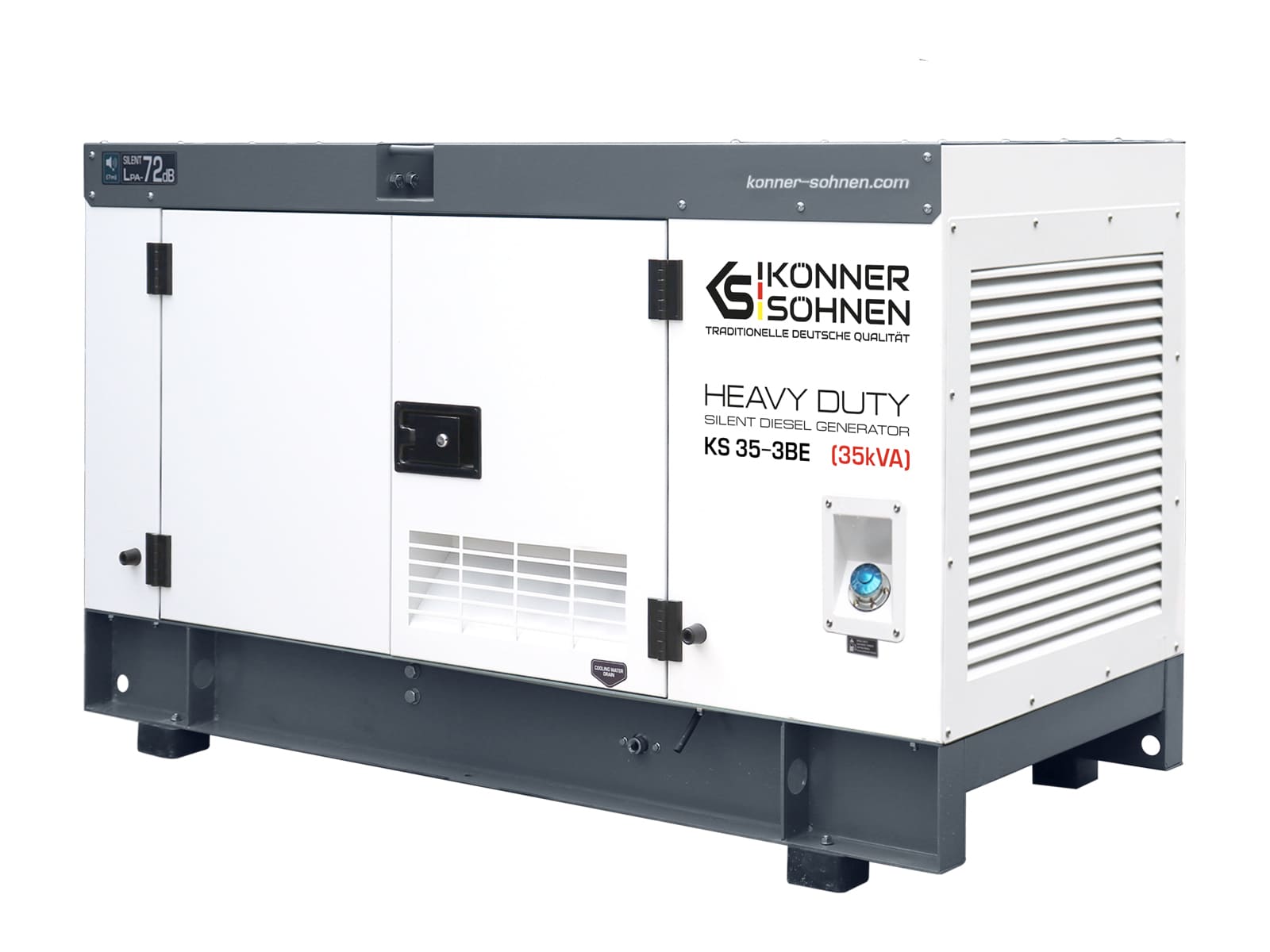

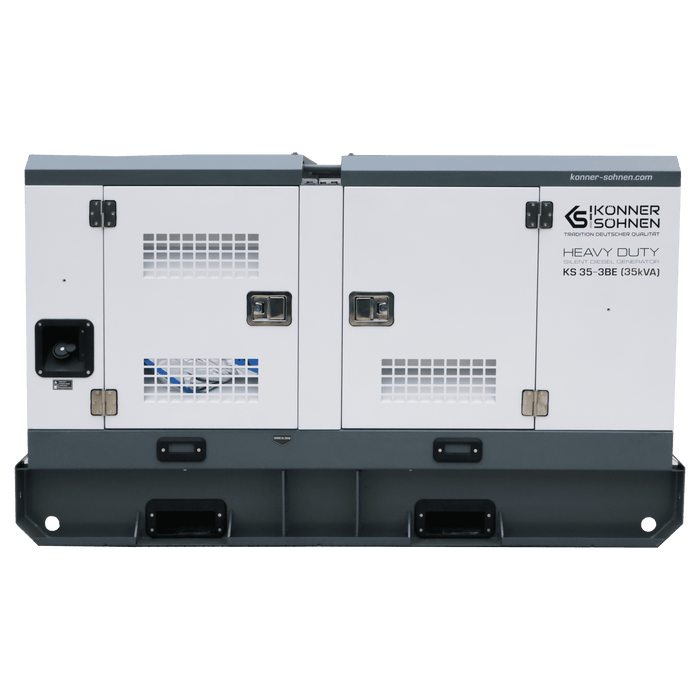

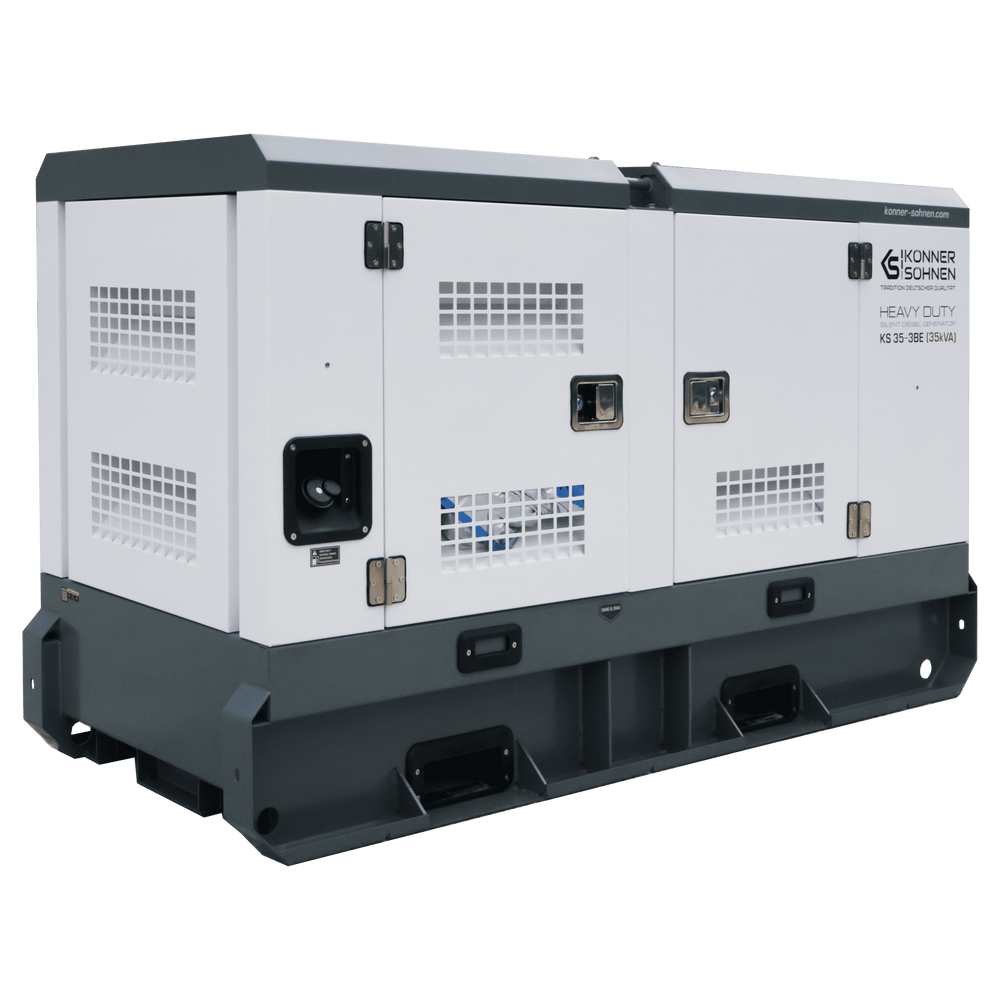

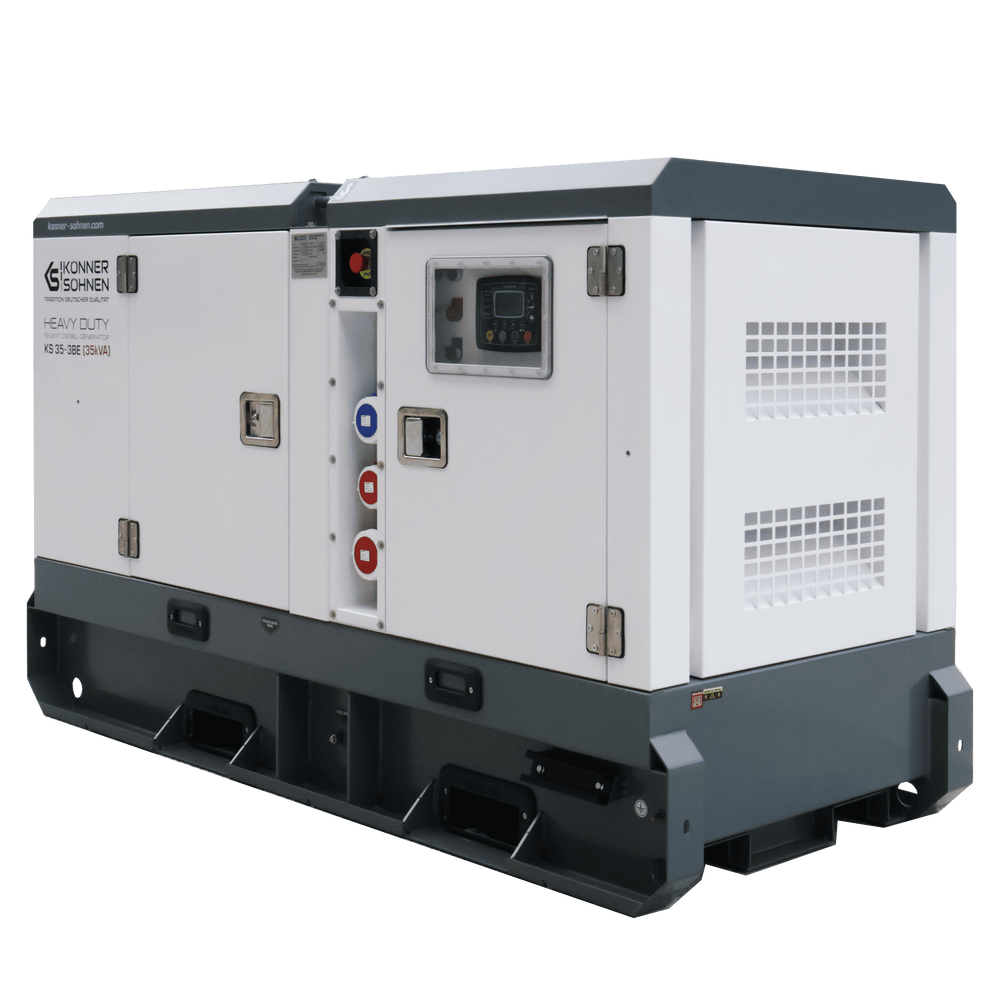

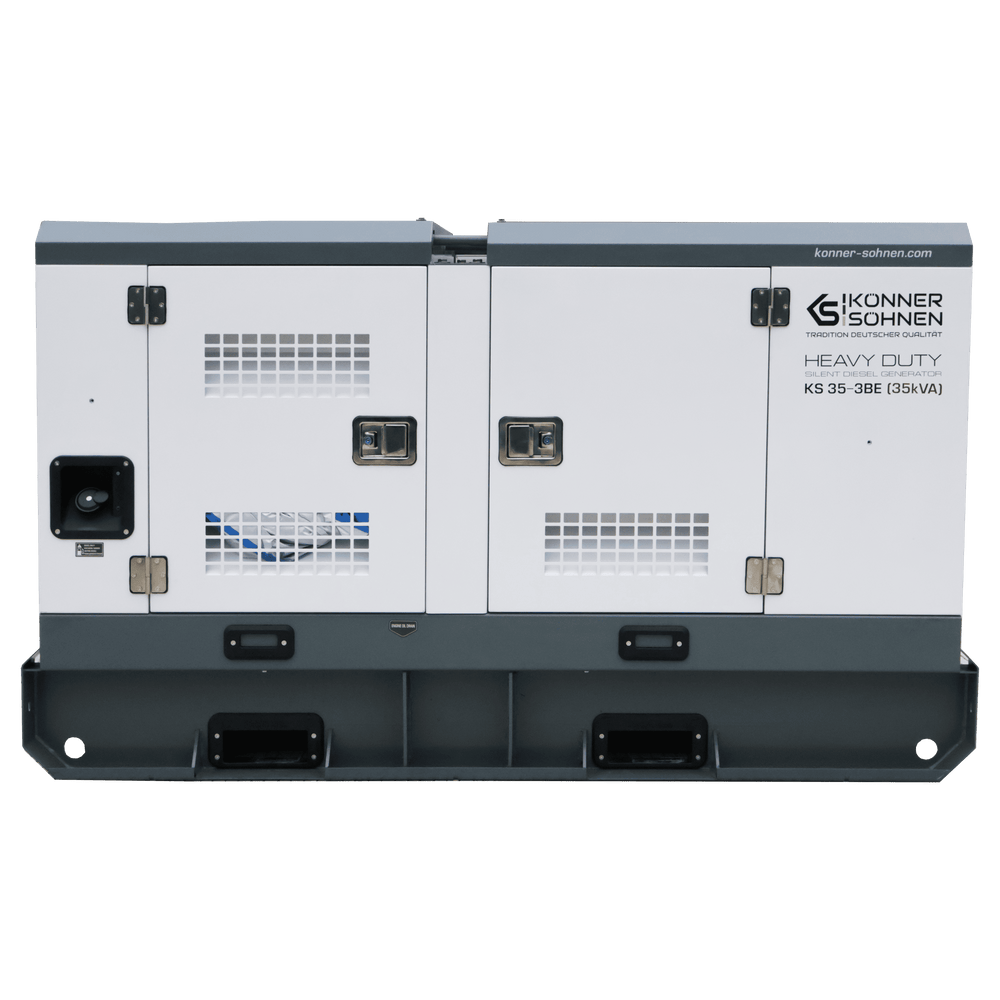

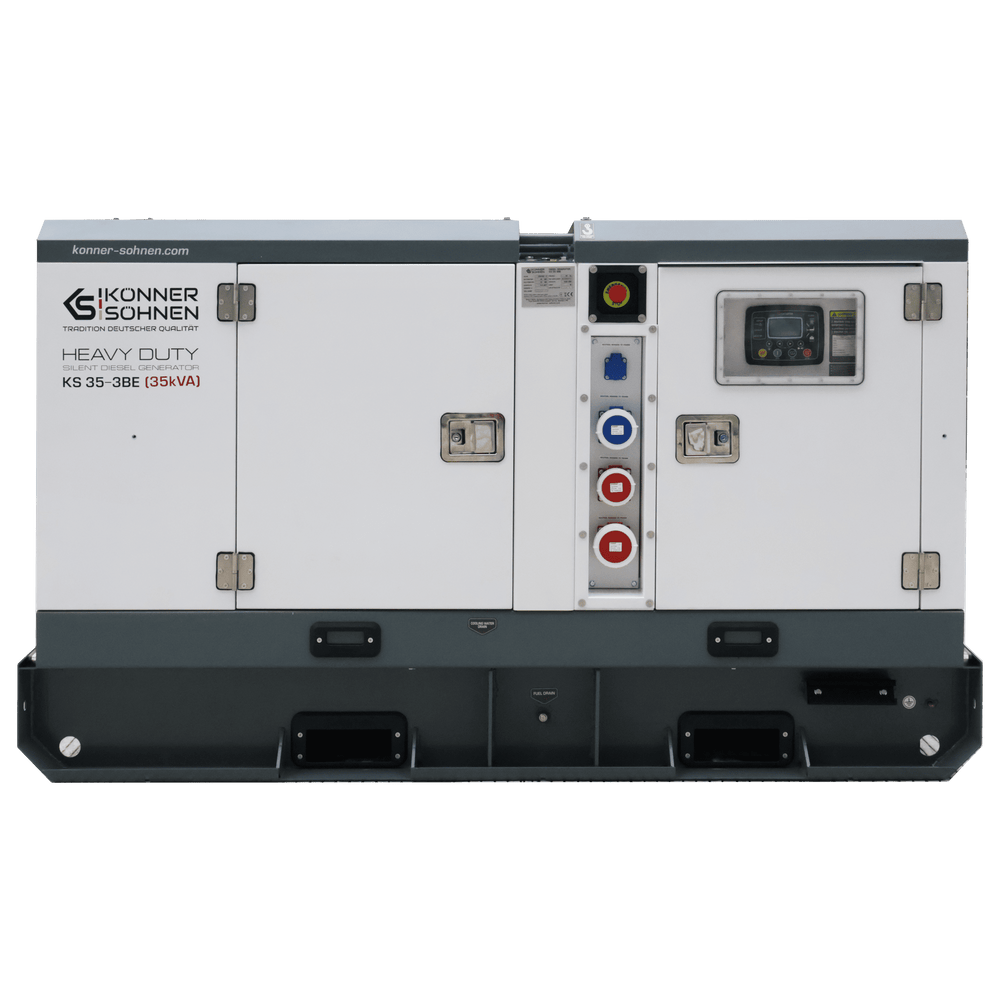

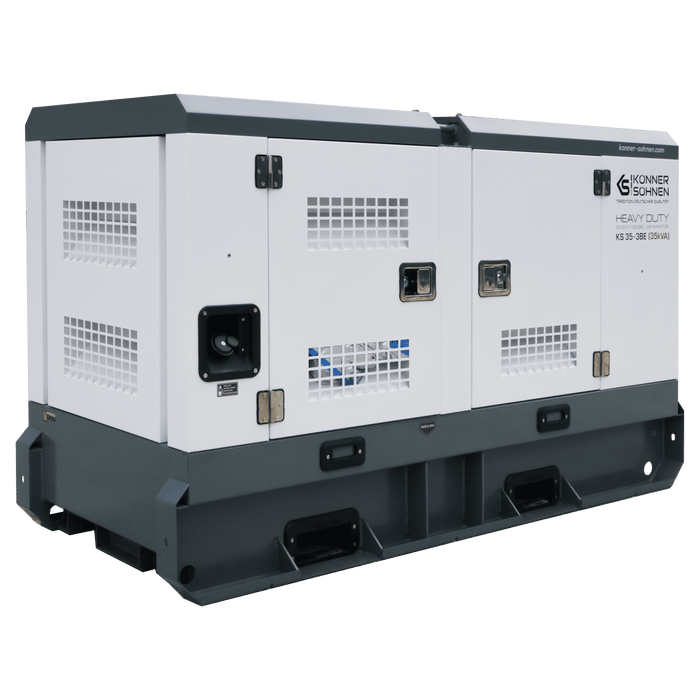

3 phase generator KS 35-3BE
21,431.00 лв
3 phase generator KS 35-3BE
21,431.00 лв
3 phase generator KS 35-3BE
Unavailable
21,431.00 лв
Specification
| Voltage, V: | 230/400 |
| Engine brand: | Baudouin |
| Max/Nominal power (400V), kVA: | 35/32 |
Specification
| Voltage, V | 230/400 |
| Max/Nominal power (400V), kVA | 35/32 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max), A | 50.5 |

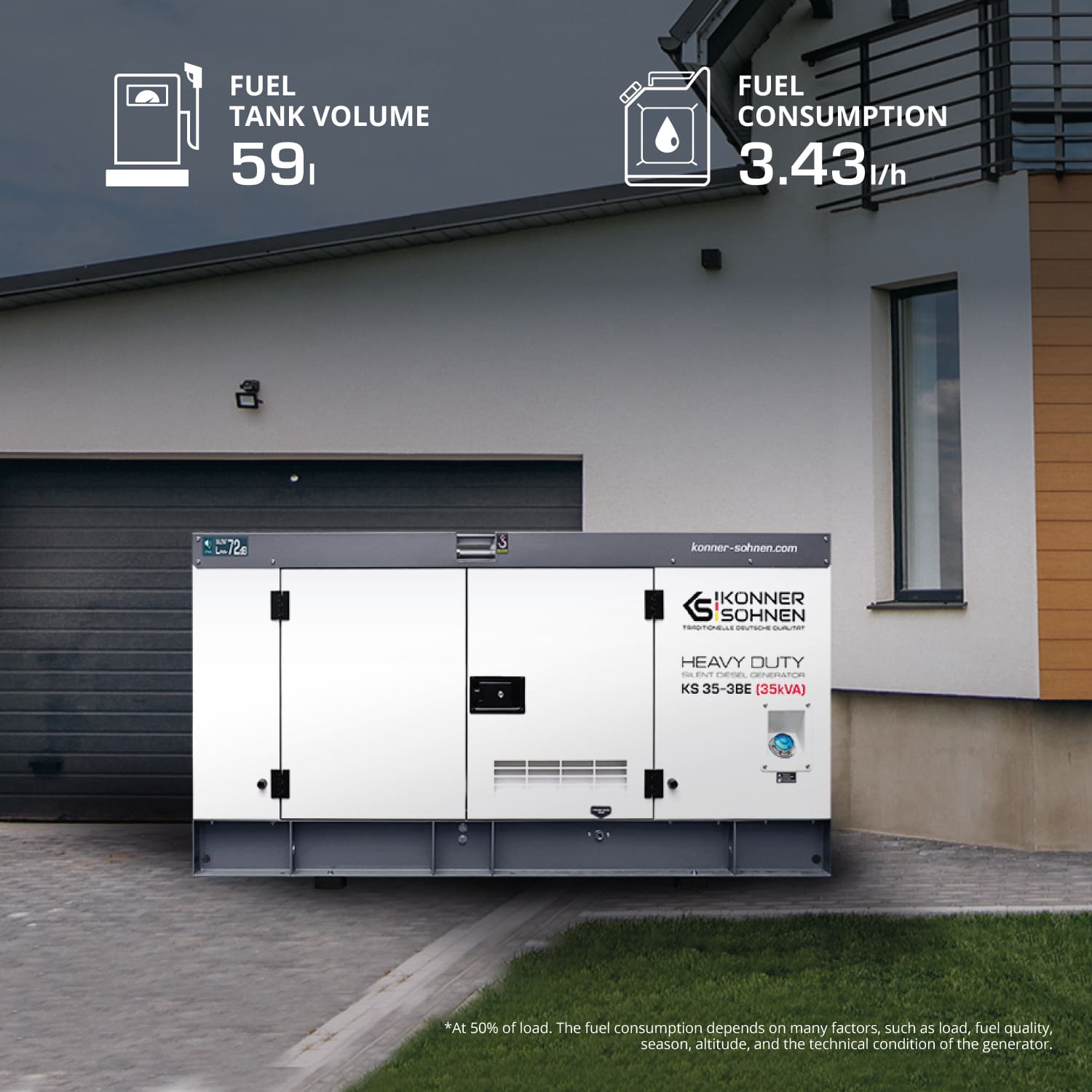

| Fuel consumption***, l/h | 3.43 (at 50% load) |
| Housing type | soundproof, moisture-proof, all-weather |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Control unit | multifunctional digital controller |
| Controller model | Datakom D300 |
| Alternator type | Stamford type, synchronous, excitation system, AC brushless, four-pole |
| Engine type | water-cooled four-cylinder four-stroke diesel engine |
| Engine brand | Baudouin |
| Engine model | 4M06G35/5 |
| Engine speed, U/min | 1500 |
| Cooling type | liquid |
| Engine speed control | electronic |
| Preheater | + |
| Output for ATS | + |
| Fuel tank volume, l | 59 |
| Crank case volume, l | 11.5 |
| Coolant volume, l | 5 |
| Accumulator (A·h) | 85 |
| Battery charger | integrated |
| Warranty | 1 year |
| Protection class | IP54 |
| Net dimensions (LxWxH), mm | 2050×850×1070 |
| Gross dimensions (LxWxH), mm | 2080×880×1090 |
| Net weight, kg | 748 |
| Gross weight, kg | 748.0 |
| SKU | KS 35-3BE |
| Barcode | 4260405368112 |
Features
01
BAUDOUIN LOW-SPEED ENGINE
02
WATER COOLING
03
PRE-START HEATING
04
DIGITAL CONTROLLER
05
CAPABILITY OF ATS CONNECTION
06
MAXIMUM DEGREE OF SECURITY
07
SUPER SILENT SOUNDPROOF ENCLOSURE
08
CONVENIENT TRANSPORTATION
09
GALVANIC COATING
10
COMMISSIONING IN EUROPE

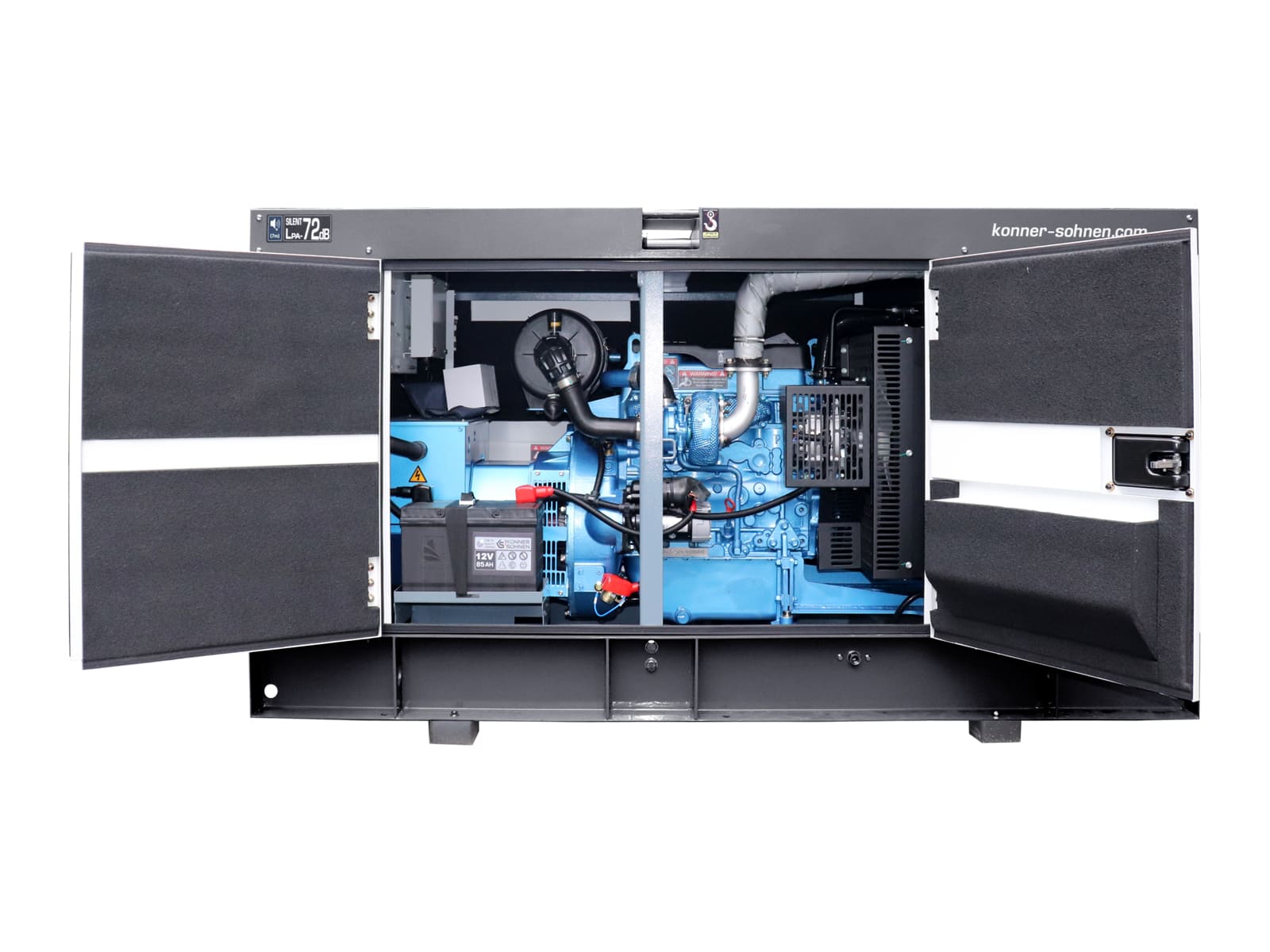

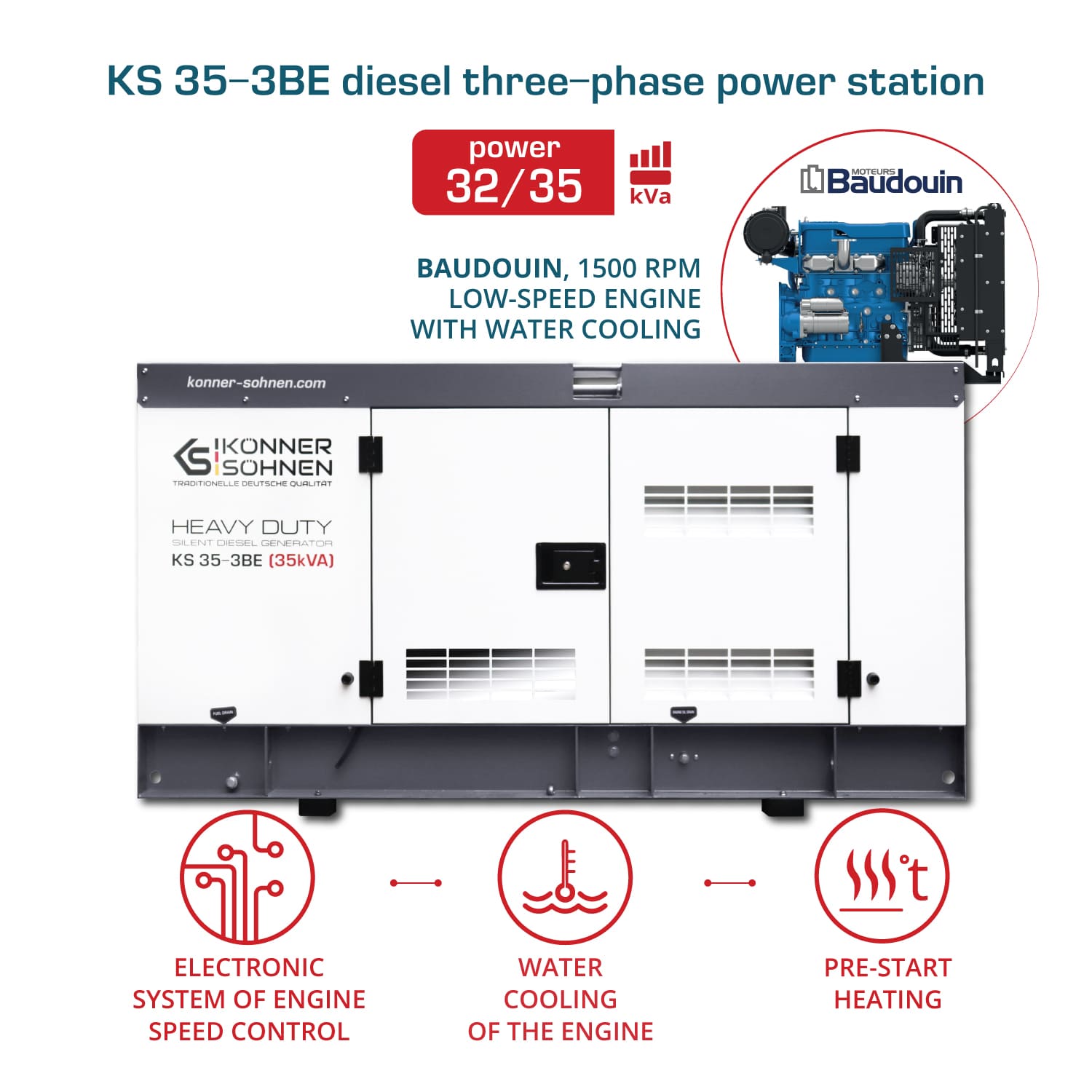

BAUDOUIN LOW-SPEED ENGINE
Reliable 4-cylinder low-speed water-cooled engines from the French company Baudouin, which has 100 years of experience in designing and manufacturing top-quality engines, fully comply with the highest European and international quality standards. Powerful and reliable, Baudouin engines are characterized by high performance.
WATER COOLING
The engine water cooling system ensures reliable operation and protects the engine from premature wear. Thanks to the efficient cooling of the engine, this generator can operate at high ambient temperatures.
PRE-START HEATING
The integrated pre-start coolant heating system automatically maintains the necessary temperature for a safe engine start, enabling a quick startup of the power plant in subzero temperatures.

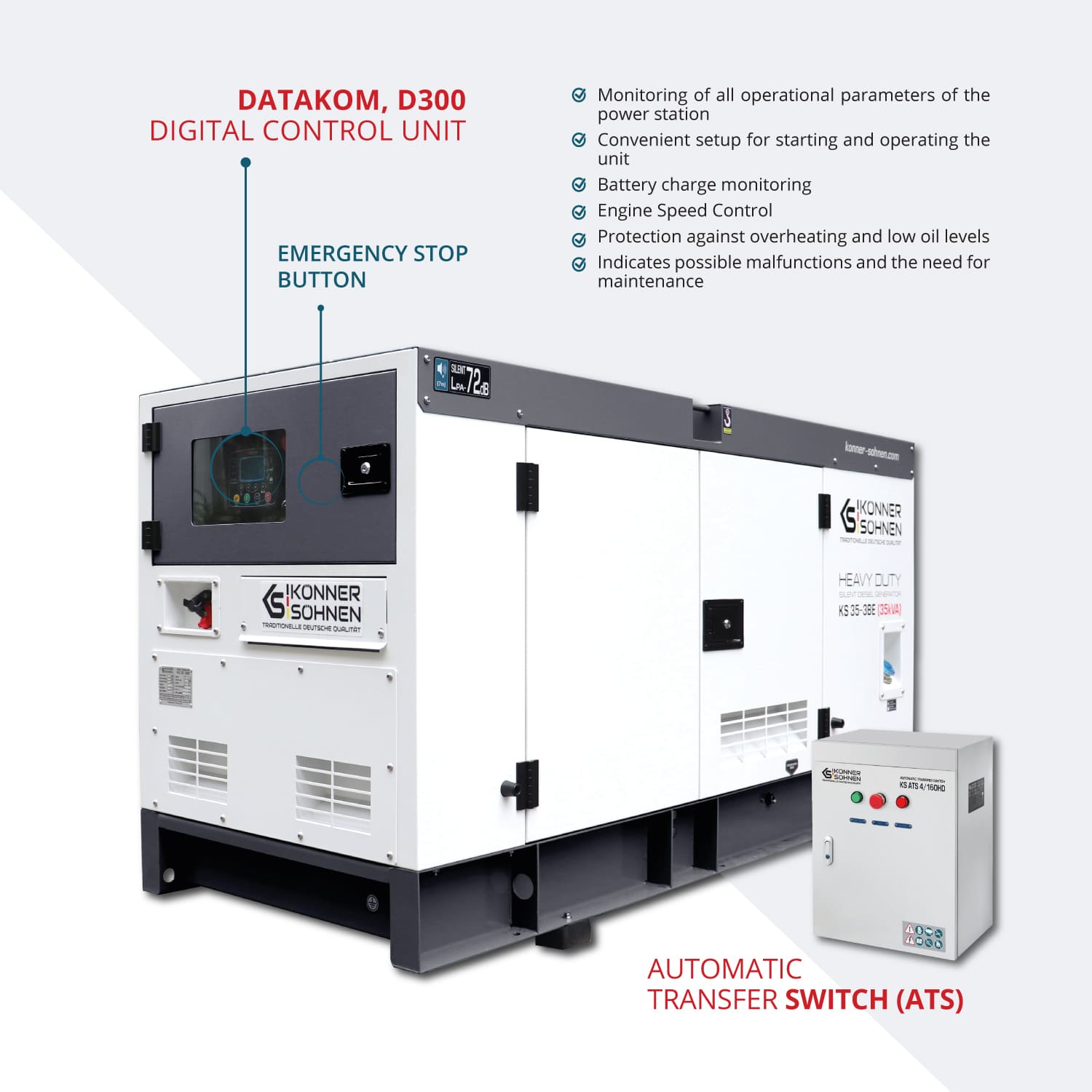

DIGITAL CONTROLLER
All work processes are controlled by a modern multifunctional digital control unit Datakom D300. The controller provides checking of all indicators of the power plant's operating status, convenient settings for starting and operating the plant, monitors the battery charge, controls the engine speed, protects against overheating and low oil level, signals possible malfunctions, and reports the need for service.
CAPABILITY OF ATS CONNECTION
The automatic transfer switch (ATS) automatically starts the power plant and switches the load to it when the main power source is disconnected. It also automatically stops the power plant when the central power supply is restored.

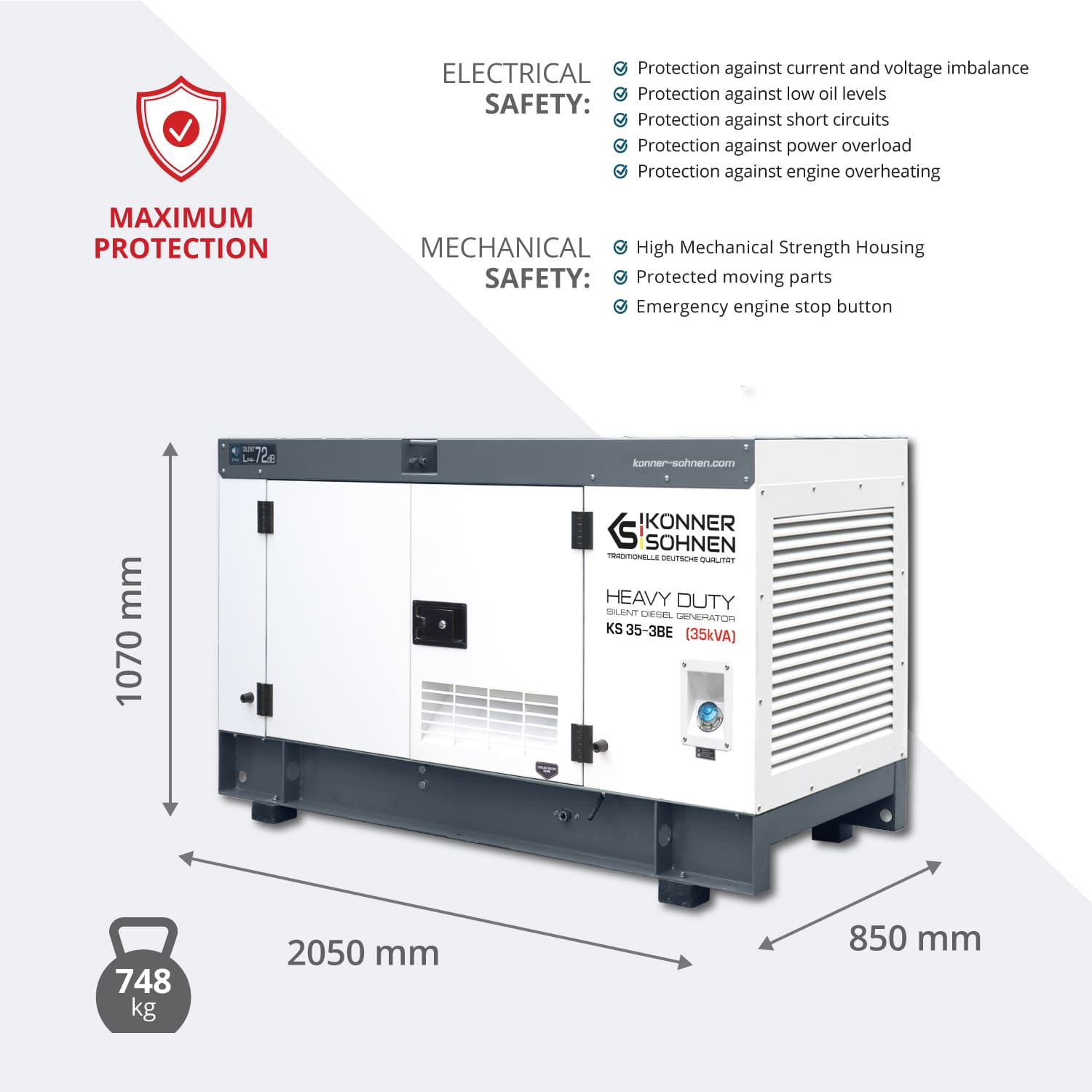

MAXIMUM DEGREE OF SECURITY
ELECTRIC SAFETY:
✔ protection against current and voltage imbalance
✔ protection against low oil level
✔ short circuit protection
✔ overpower protection
✔ protection against excessive temperature of the motor
MECHANICAL SAFETY:
✔ high mechanical strength housing
✔ protected moving parts
✔ emergency engine stop button

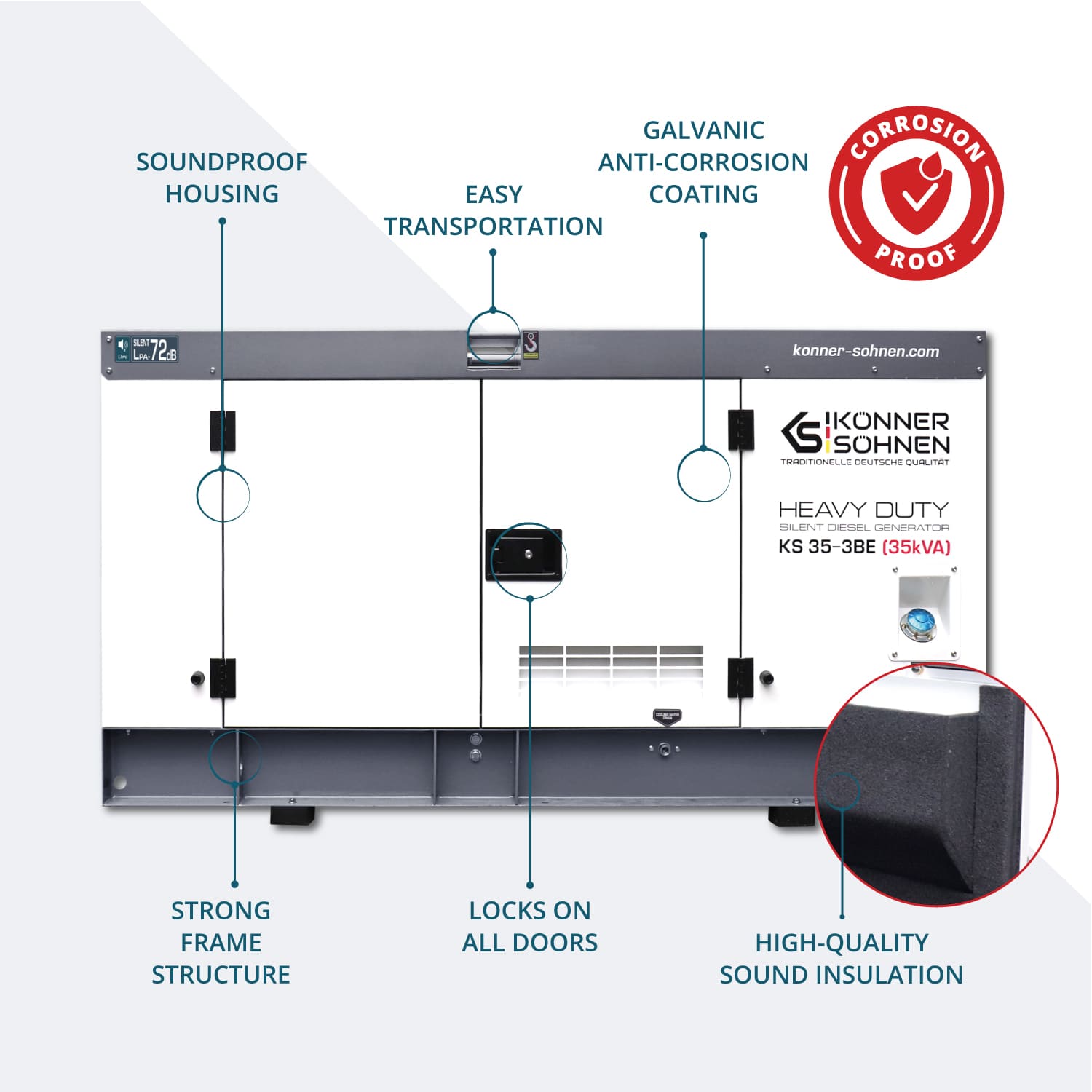

SUPER SILENT SOUNDPROOF ENCLOSURE
The high-quality SUPER SILENT soundproof enclosure features enhanced sound absorption due to an improved insulation layer, ensuring a minimal noise level of Lpa (7m) = 68 dB. These models are ideally suited for use in areas with strict noise level requirements and at locations where maintaining a quieter environment is essential.
The enclosure has improved thermal distribution, protects the power plant from moisture and condensation, adverse weather conditions and unauthorised interference.
The power plant has an emergency STOP button for quick engine shutdown in case of an emergency.
CONVENIENT TRANSPORTATION
The enclosure is equipped with special mounting holes that simplify the movement of the unit, loading and unloading operations and ensure reliable fixation during transportation.
GALVANIC COATING
All power plant enclosures are covered with an anti-corrosion galvanic coating, which provides additional protection against corrosion and resistance to harsh weather conditions, significantly extends the service life of the equipment and reduces maintenance costs.
COMMISSIONING IN EUROPE
Könner & Söhnen diesel power generators go through pre-start preparation and test starts to ensure compliance with all European operational parameters at our own service center. A specialized loading bench is used to check the power output of the power plant under different operating conditions and to adjust the electronic control unit.
Specification
3 phase generator KS 35-3BE
| Voltage, V | 230/400 |
| Max/Nominal power (400V), kVA | 35/32 |
| Power factor, cosφ | 1 (230V)/0.8 (400V) |
| Frequency, Hz | 50** |
| Current (max), A | 50.5 |
| Fuel consumption***, l/h | 3.43 (at 50% load) |
| Housing type | soundproof, moisture-proof, all-weather |
| Noise level Lpa (7m)/Lwa, dB | 72/97 |
| Control unit | multifunctional digital controller |
| Controller model | Datakom D300 |
| Alternator type | Stamford type, synchronous, excitation system, AC brushless, four-pole |
| Engine type | water-cooled four-cylinder four-stroke diesel engine |
| Engine brand | Baudouin |
| Engine model | 4M06G35/5 |
| Engine speed, U/min | 1500 |
| Cooling type | liquid |
| Engine speed control | electronic |
| Preheater | + |
| Output for ATS | + |
| Fuel tank volume, l | 59 |
| Crank case volume, l | 11.5 |
| Coolant volume, l | 5 |
| Accumulator (A·h) | 85 |
| Battery charger | integrated |
| Warranty | 1 year |
| Protection class | IP54 |
| Net dimensions (LxWxH), mm | 2050×850×1070 |
| Gross dimensions (LxWxH), mm | 2080×880×1090 |
| Net weight, kg | 748 |
| Gross weight, kg | 748.0 |
| SKU | KS 35-3BE |
| Barcode | 4260405368112 |
