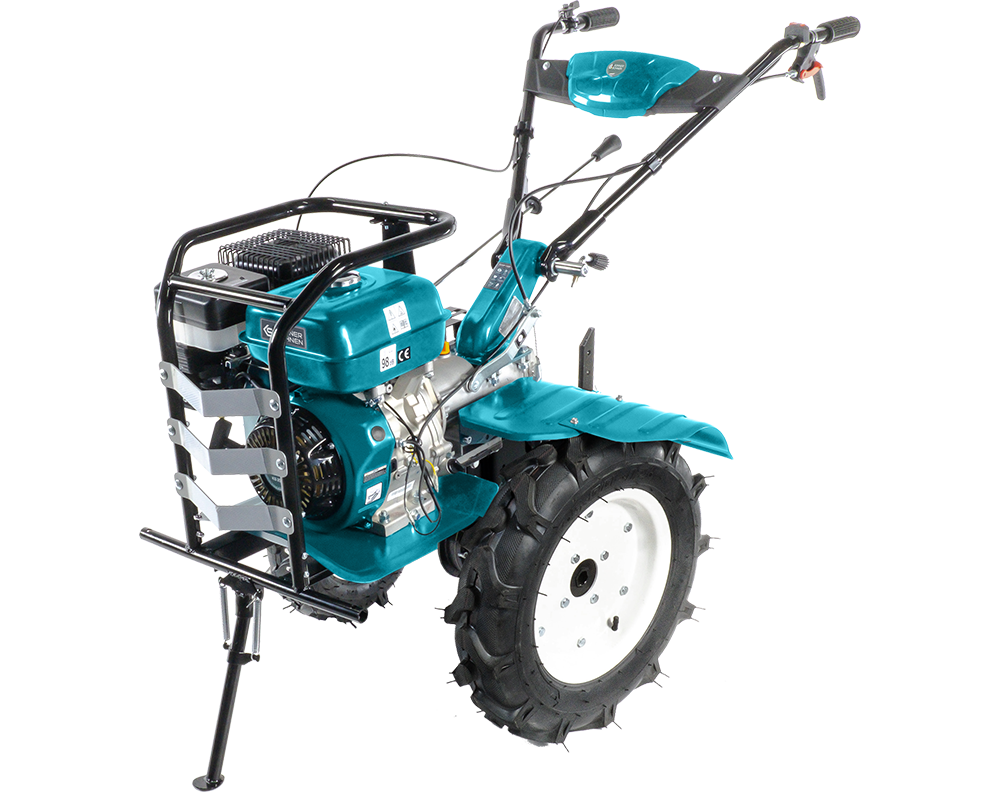

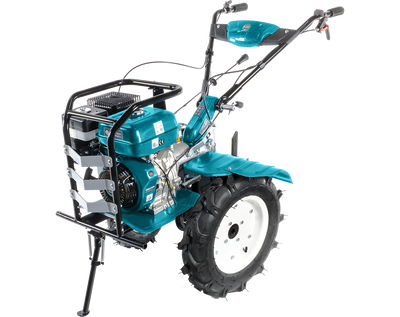

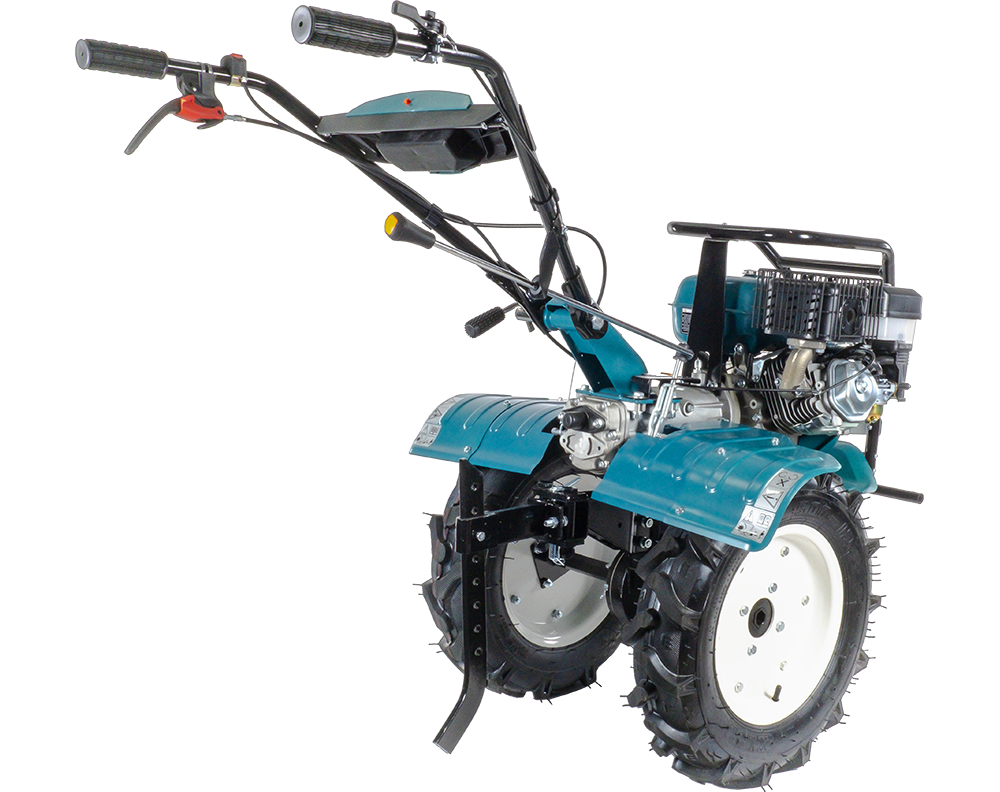

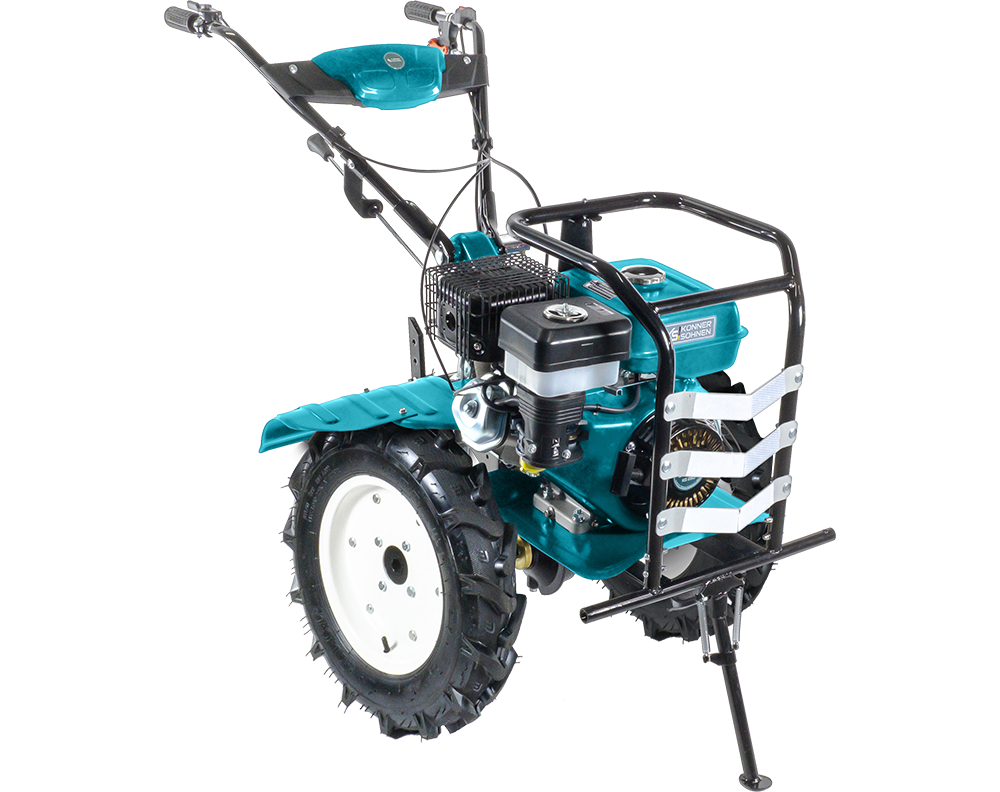

KS 9HP-1350G-3 (500)

Name: KS 9HP-1350G-3 (500)
Brand: Könner & Söhnen
SKU: 4260405363544
Price: 1299.0 EUR
Availability: InStock

Available

€1.299,00

Specification

Engine power, hp:	9
Number of gears:	+3 +2 +1 0 -1
Gearbox:	Direct drive with gearbox
Fuel tank volume, l:	6
Tilling width, cm:	≤ 134
Tilling depth, max., cm:	≤ 35

Features

High-performance engines

Proprietary high-performance engines from Könner & Söhnen have increased lifespan and are characterized by an easy start and reduced vibration. Each engine has its own individual serial number, which allows us to control the quality of production and service.

Manual start

Easy start system enables a quick start of the engine without much effort.

Ergonomic control panel

The ergonomic control panel allows you to quickly control and easily steer the cultivator. The possibility of vertical adjustment of the handles by 180° and horizontal by 360° allows you to customize the cultivator for any user, provides easy control and convenient storage of the cultivator. The panel is equipped with a toolbox.

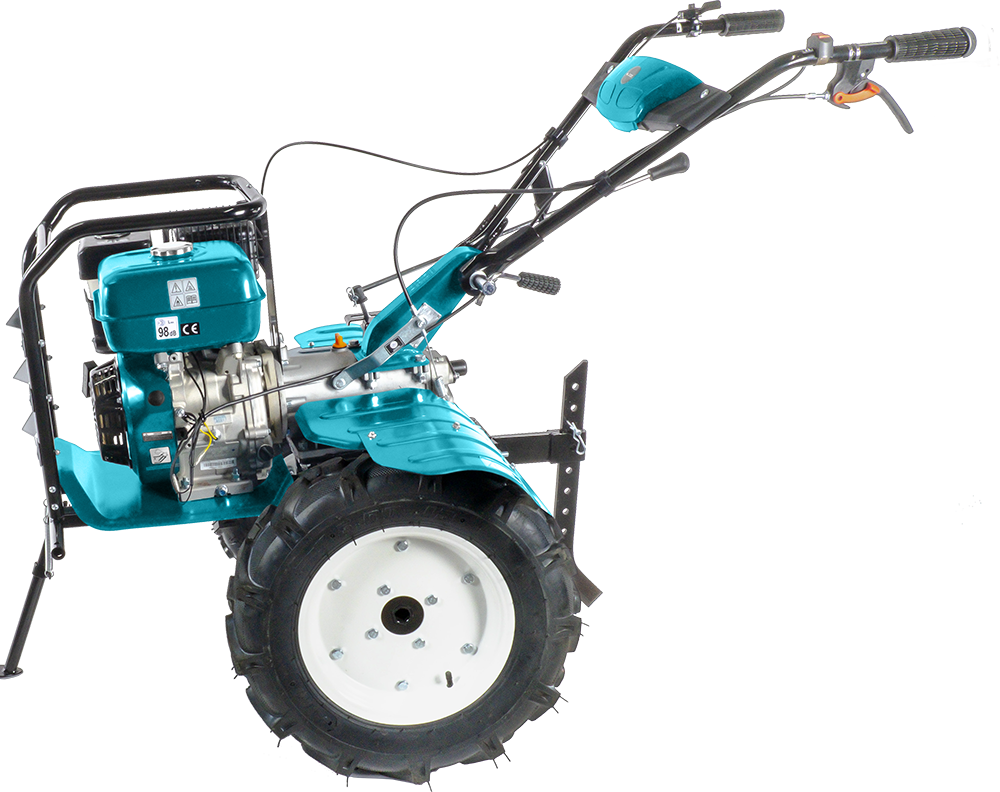

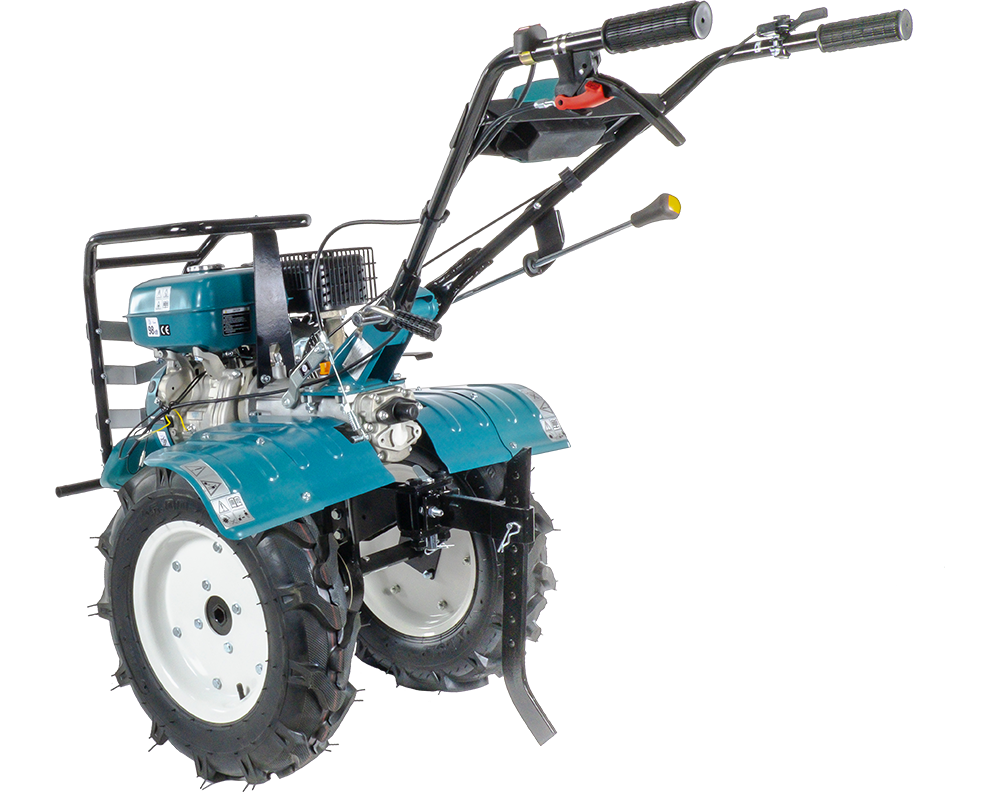

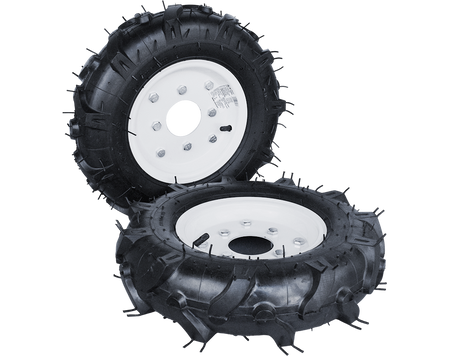

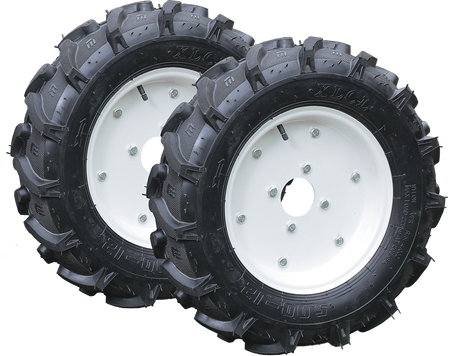

Tubeless or pneumatic wheels

These cultivator models are equipped with high-quality wheels. Model KS 7HP-1050G has low-profile tubeless rubber wheels, which require no pumping during operation. Cultivator model KS 9HP-1350G-3 comes complete with high-quality pneumatic wheels with a diameter of 40 or 50 cm.

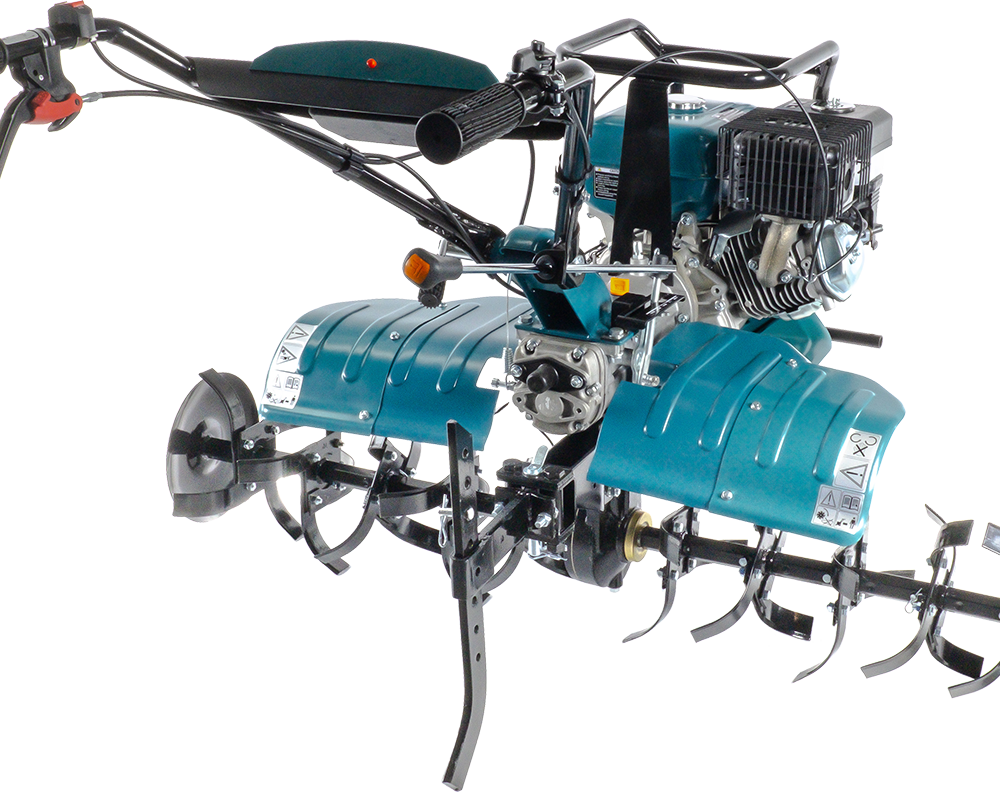

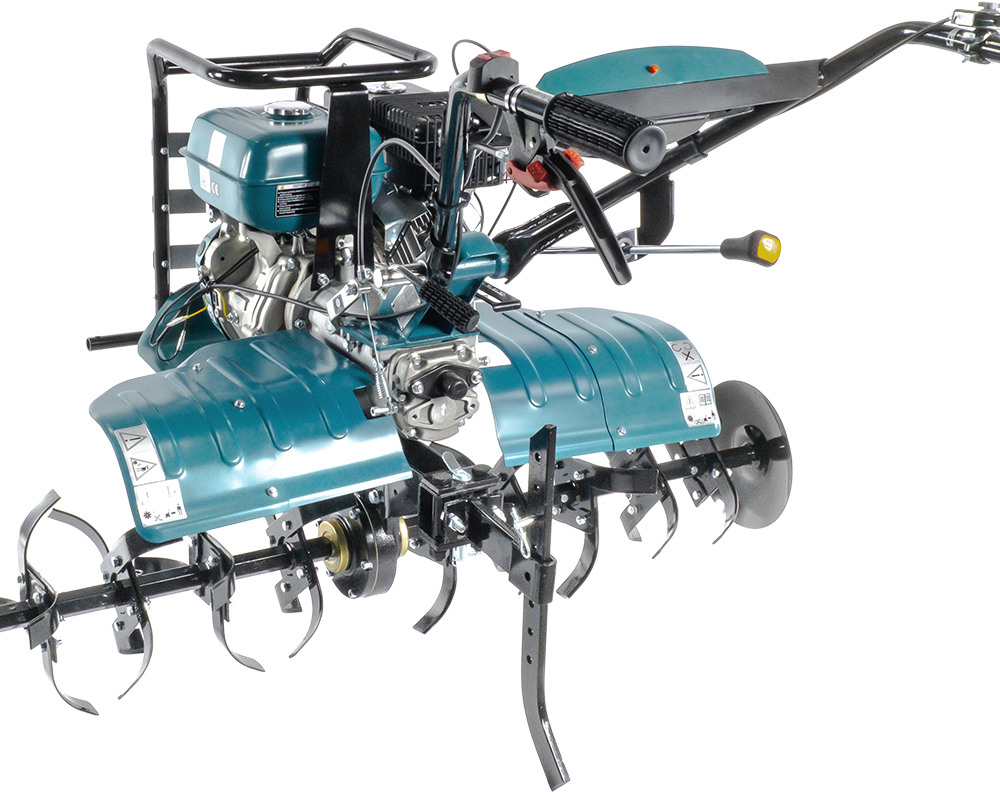

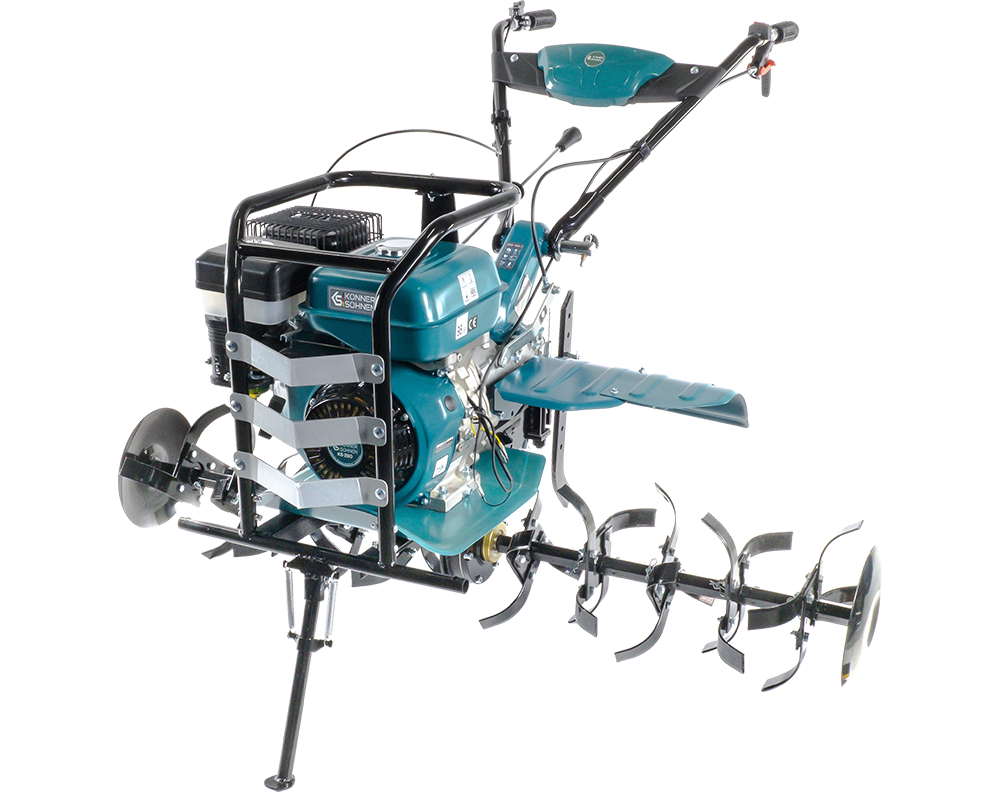

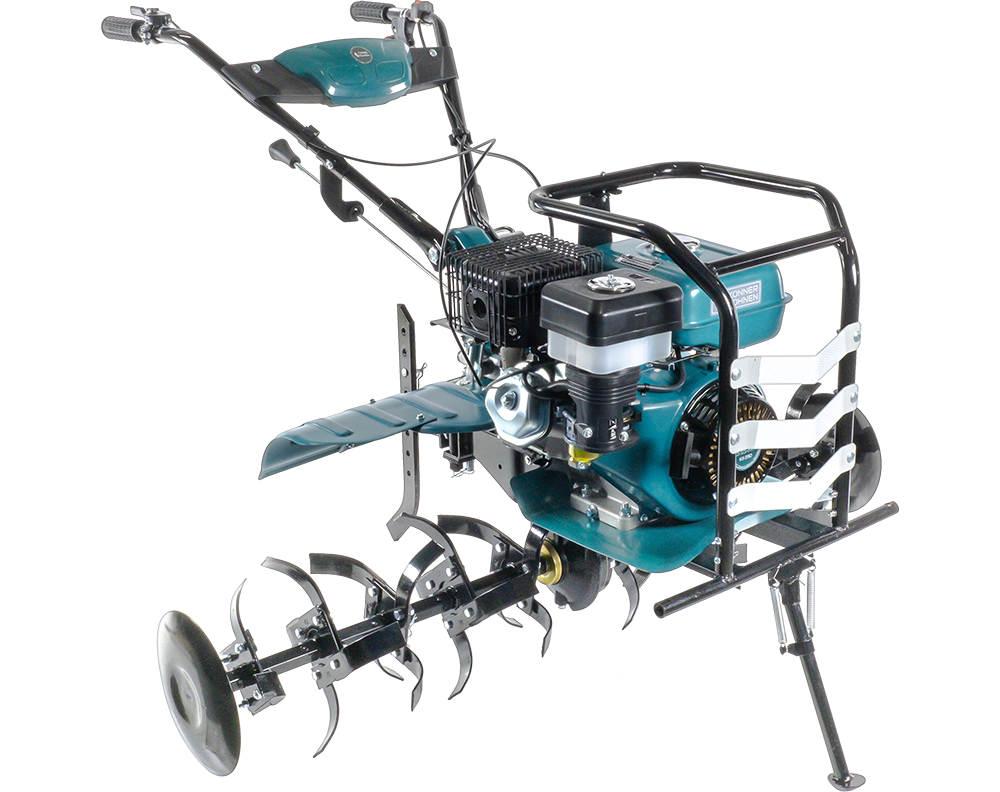

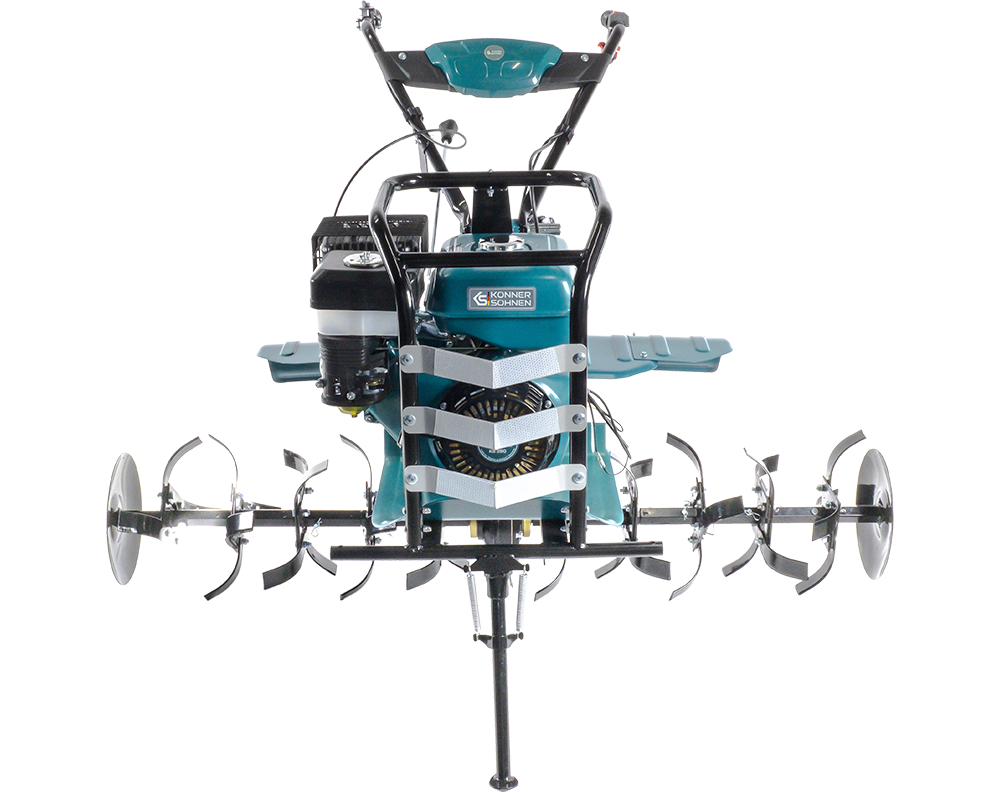

Forged cutters

With forged saber-shaped cutters, the cultivator is suitable for any type of soil, both virgin and well-managed soil. Plant shields are provided to protect plants during tilling. Cutters are made up of 4 blades. Metal discs are included.

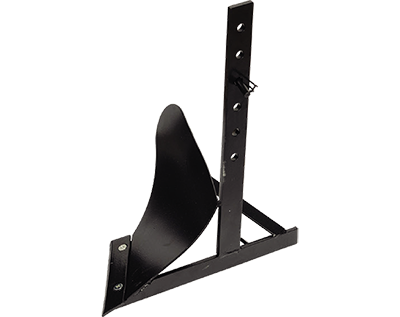

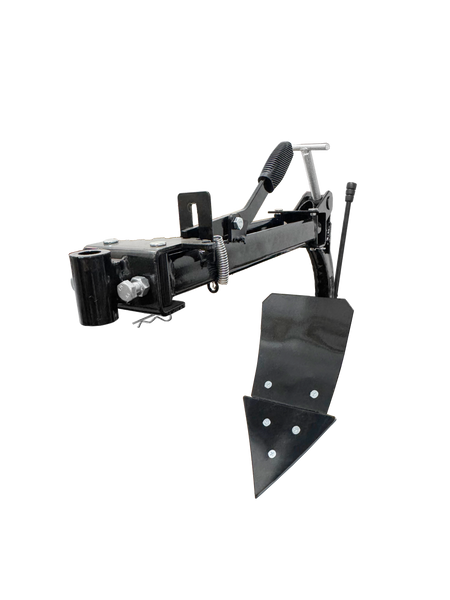

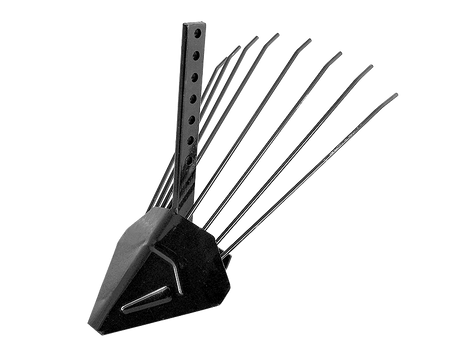

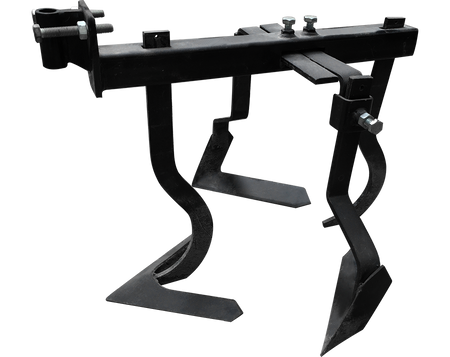

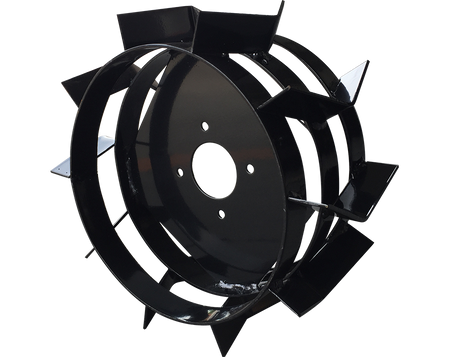

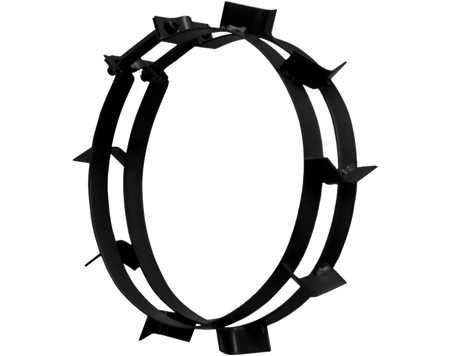

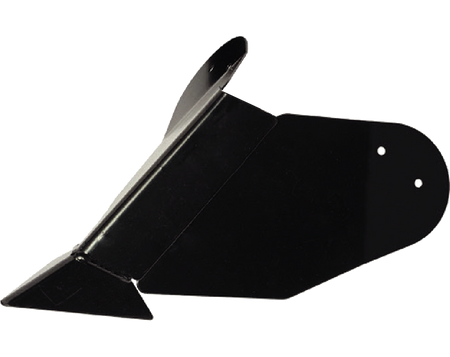

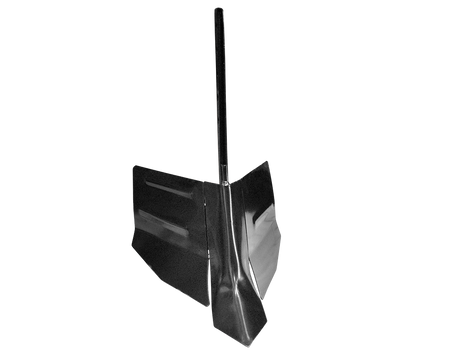

Accessories

High-performance cultivators from Könner & Söhnen with direct drive and gearbox are suitable for accommodating attachments. A wide range of attachments designed to process all types of soils to maximize customer satisfaction.

Toolbox

For the better convenience during the operating the tiller equipped with a tollbox. Now you will always have the most necessary tools at hand.

Specification

KS 9HP-1350G-3 (500)

Engine model	KS 290
Engine power, hp	9
Engine volume, cm3	270
Engine type	Gasoline
Tilling width, cm	≤ 134
Tilling depth, max., cm	≤ 35
Fuel tank volume, l	6
Crank case volume, l	1.1
Gear	Bevel gear drive
Gearbox	Direct drive with gearbox
Number of gears	+3 +2 +1 0 -1
Reverse	+
Adjustable handles	Vertical/horizontal
Wheels	Low-profile tubeless wheels 5.00-12″
Noise level Lpa (7m)/Lwa, dB	73/98
Includes	Tiller, Manual, Packing, 40×Blades, Coulter, Support leg, Gear housing, Console, 2×Side protectors, Control panel, 2×Pneumatic wheels 5.00-12″, A set of fasteners and tools, 6×Reflective stickers for front grille
Gross dimensions (LxWxH), mm	910×570×750
Net weight, kg	94
Gross weight, kg	110.0
SKU	KS 9HP-1350G-3 (500)
Barcode	4260405363544
