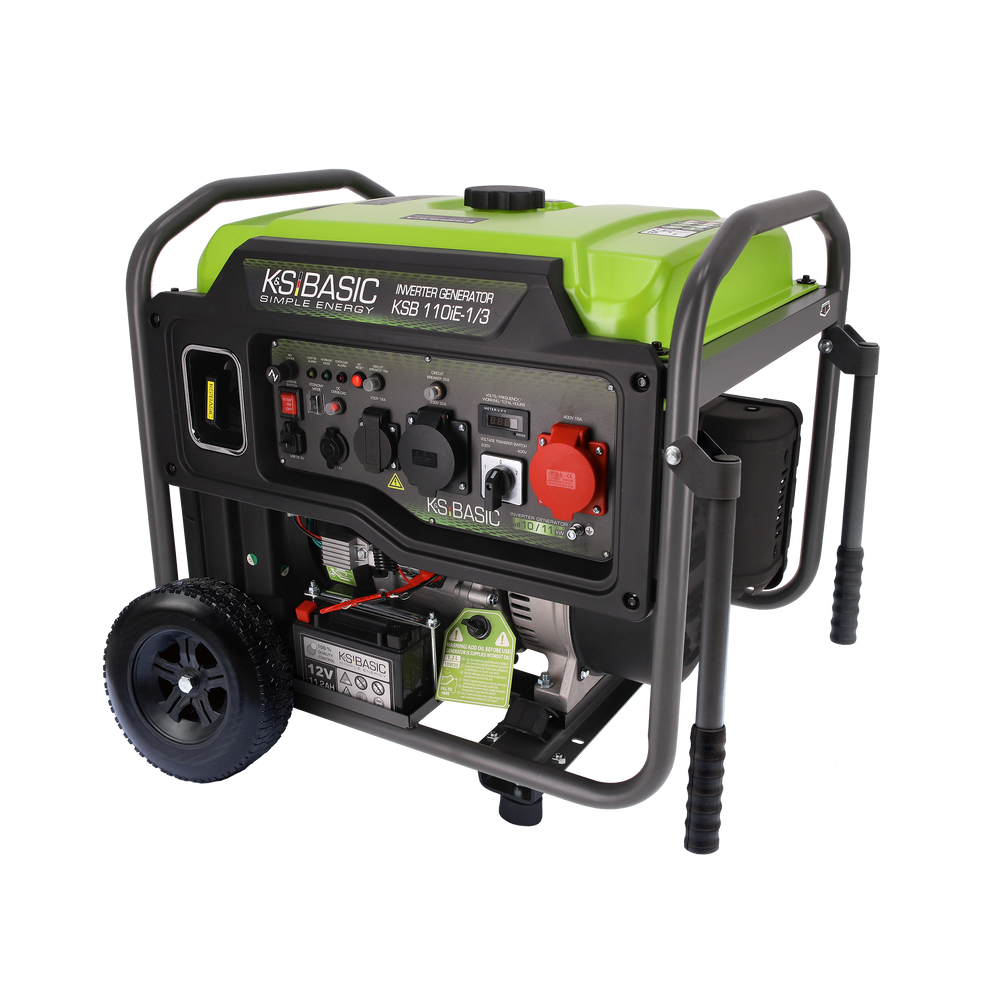

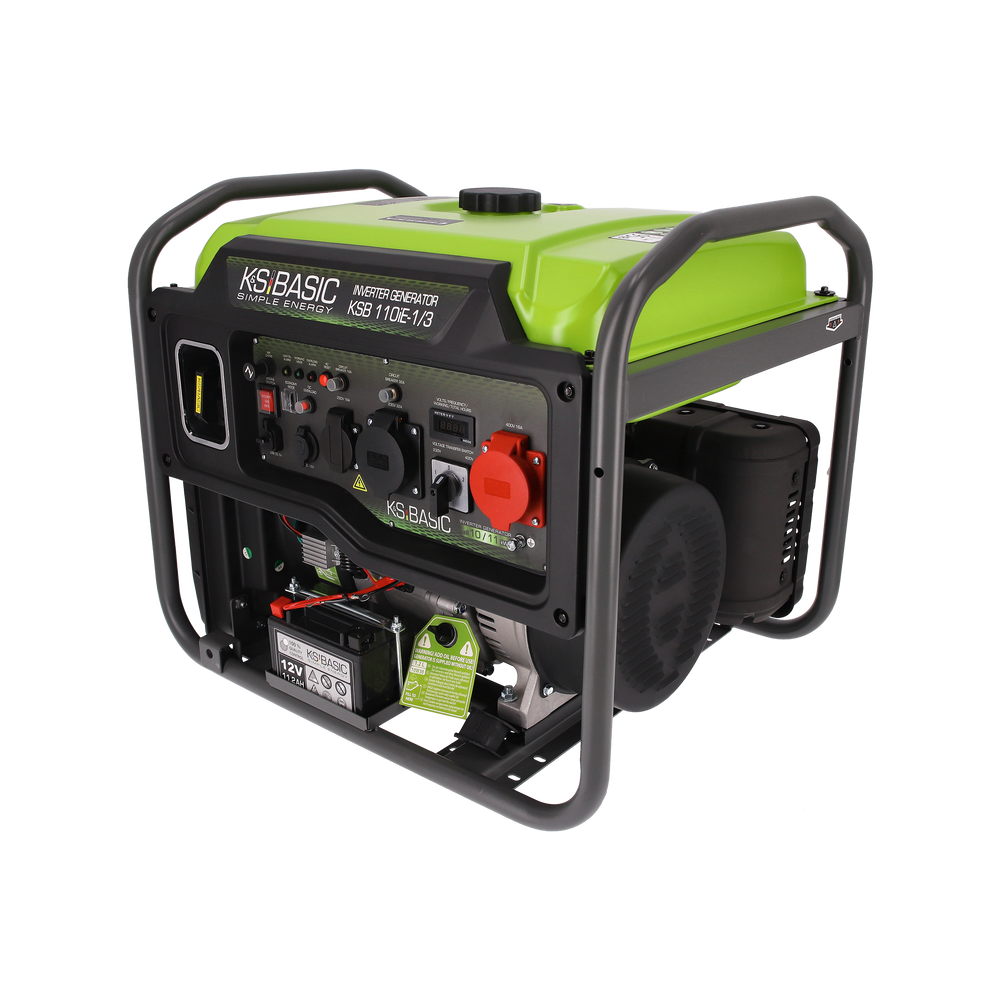

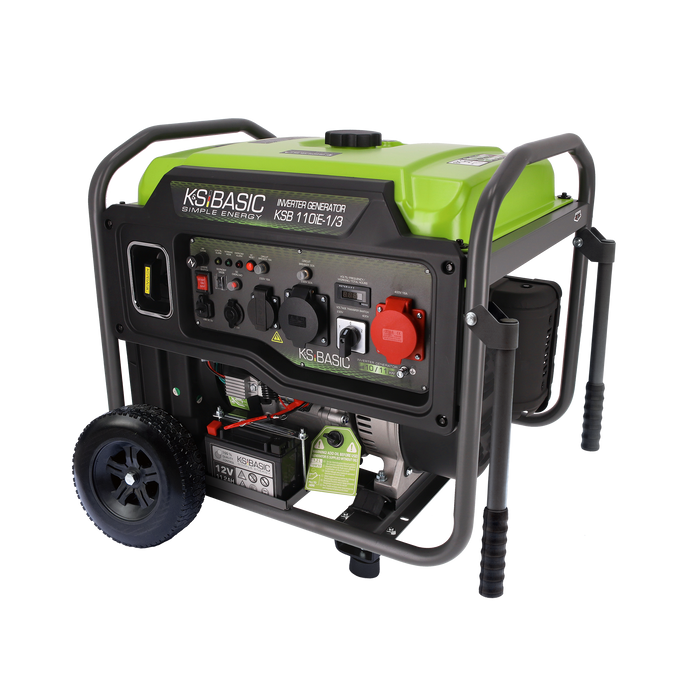

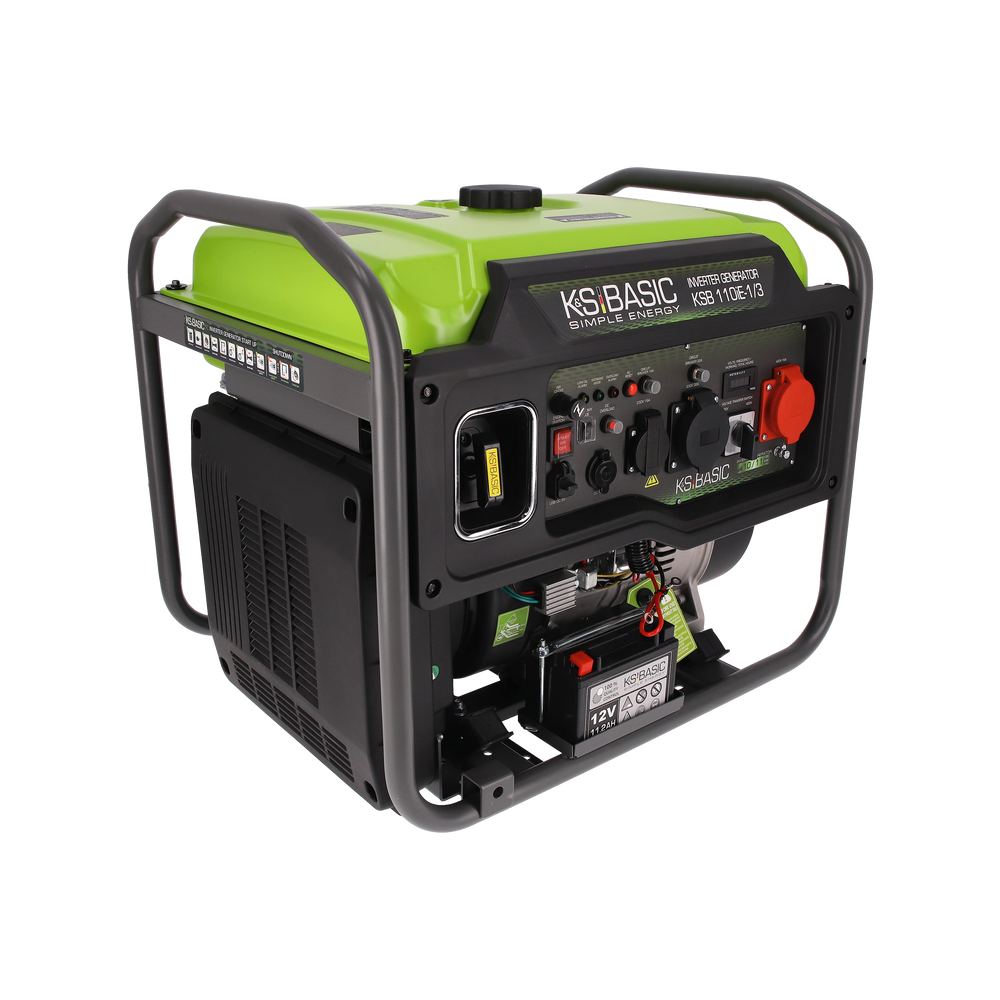

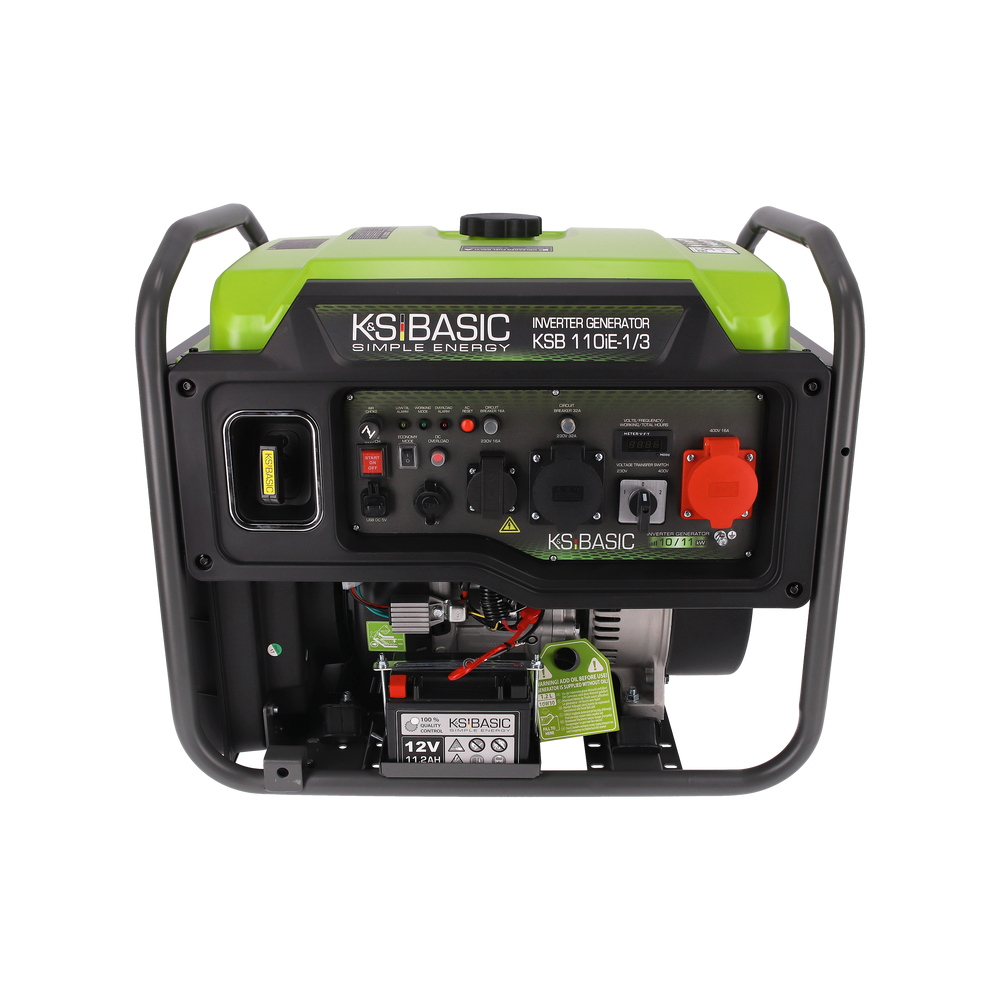

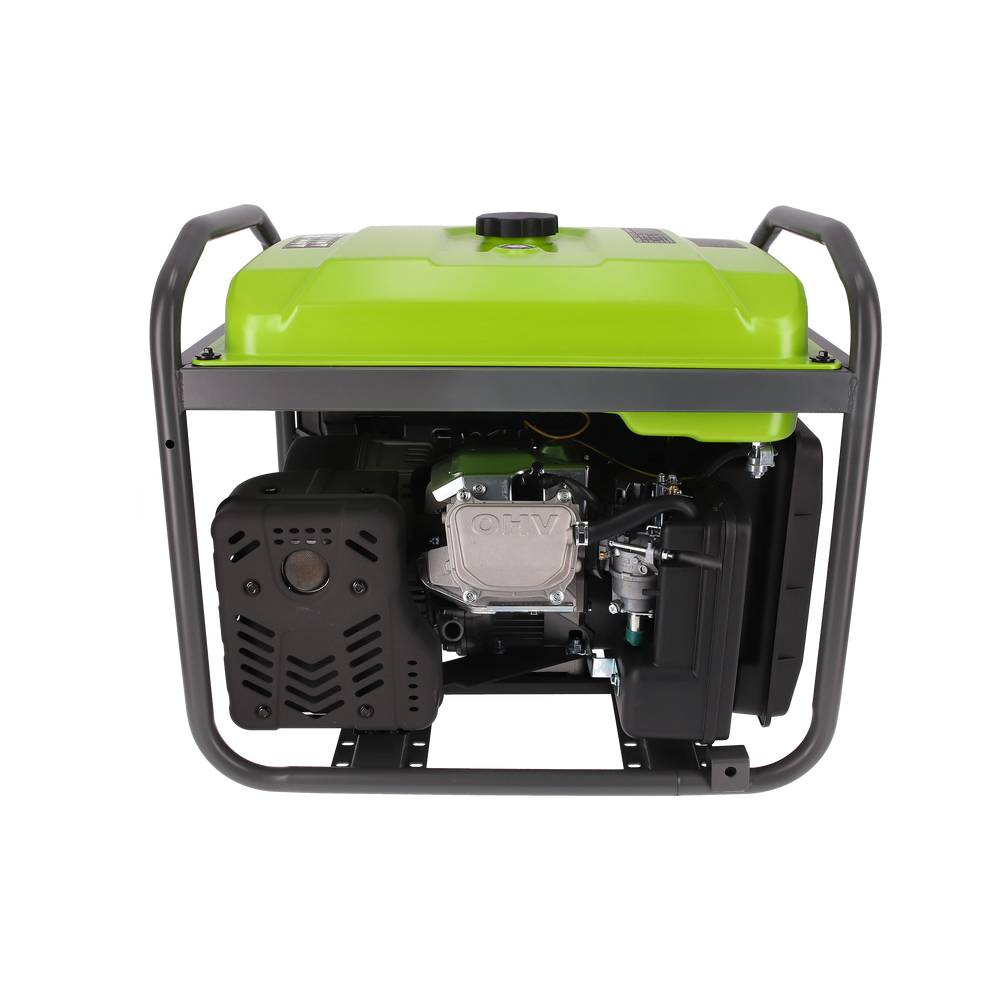

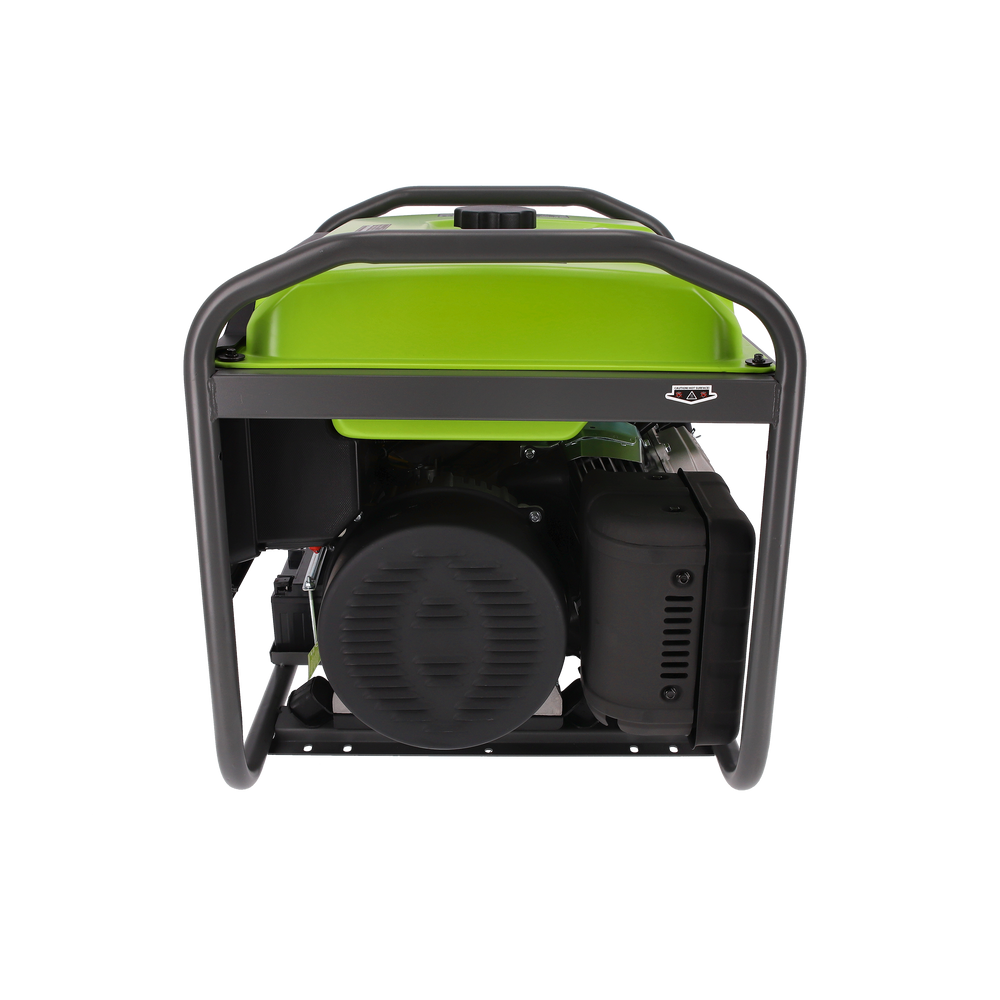

Inverter generator KSB 110iE-1/3

Name: Inverter generator KSB 110iE-1/3
Brand: ‎K&S BASIC
SKU: 4260405369362
Price: 1369.0 EUR
Availability: OutOfStock

Unavailable

€1.369,00

Specification

Voltage, V:	230/400
Max power, kW:	11.0 (230V/400V)
Nominal power, kW:	10.0 (230V/400V)
Engine start:	Manual/Electric
Outlets:	1×Schuko 230V 16A, 1×CEE 230V 32A, 1×CEE 400V 16A

Specification

Voltage, V	230/400
Max power, kW	11.0 (230V/400V)
Nominal power, kW	10.0 (230V/400V)
Power factor, cosφ	1 (230 V) / 0.8 (400 V)
Frequency, Hz	50
Current (max), A	47.83 / 19.85
Outlets	1×Schuko 230V 16A, 1×CEE 230V 32A, 1×CEE 400V 16A
Engine start	Manual/Electric
Fuel tank volume, l	40
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12/8.3
USB-Outputs	USB 3.0 + Type C
Engine model	KSB 530i
Engine cylinder volume, cm3	520
Engine type	Gasoline 4-stroke cycle
Engine power, hp	20
Crank case volume, l	1.2
Accumulator (A·h)	11.2
Protection class	IP23M
Includes	Generator, Packaging, Instruction manual, Spark plug wrench, Oil funnel, 2×Anti-vibration feet, Portable power plug 230V 16A, Portable power plug 230V 32A, Portable power plug 400V 16A, Open-end wrench, Tool case, DC connection line, 2×Transport wheels, 2×Transport handles

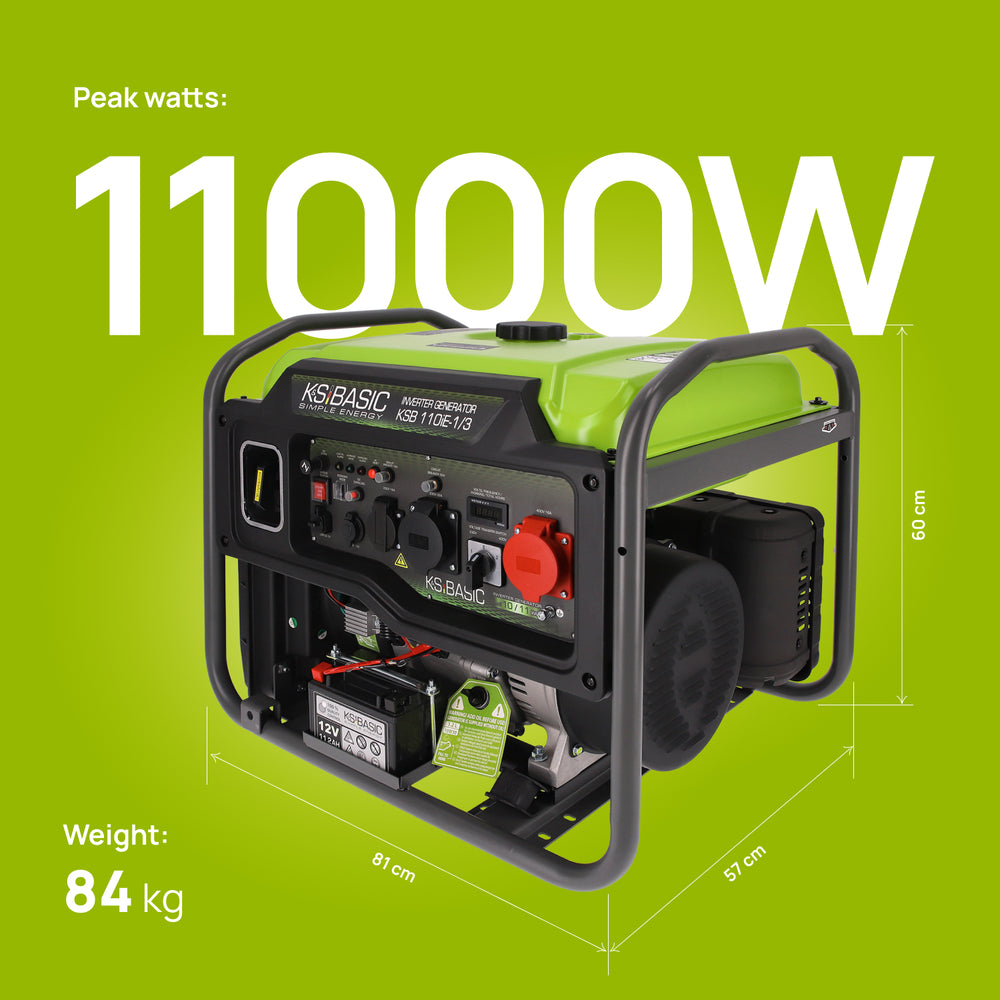

Net dimensions (LxWxH), mm	680×550×585
Gross dimensions (LxWxH), mm	810×570×600
Net weight, kg	84
Gross weight, kg	86.0
SKU	KSB 110iE-1/3
Barcode	4260405369362

Variants

Max Power: 11 kW

Benefits

High power 10,0 kW rated power allows powering most household appliances simultaneously.
Safe for electronics – inverter technology provides pure sine wave for laptops, phones, medical equipment, and other sensitive devices.
VTS system allows using the generator in both single-phase (230V) and three-phase (400V) modes without power loss.
Easy to transport, as built-in handles and wheels make it easy to move the generator.
Two start options – manual and electric start provide convenience in different conditions.
Convenient control panel – the model is equipped with an LED display showing voltage, frequency, and operating hours, as well as indicators for low oil level, overload, and operating status. Equipped with Schuko 230V 16A, CEE 230V 32A, CEE 400V 16A sockets, 12 V output and USB port.

Features

KSB 110iE-1/3 is an inverter generator with a rated power of 10,0 kW and a maximum of 11,0 kW, providing stable power supply for household and professional devices, including boilers, refrigerators, lighting, and sensitive electronics. Pure sine wave ensures safety for laptops, phones, and medical equipment. The VTS system allows operation in 230V and 400V without power loss. Eco Mode reduces fuel consumption and noise. Manual and electric start are provided, as well as wheels and handles for easy transport. LED display shows operating parameters, and there are status indicators. Sockets: Schuko 230V (16A/32A), 400V 16A, 12V output and USB port.

Inverter Technology

Delivers a stable output voltage with a clean sine wave, suitable for the reliable operation of sensitive electronics.

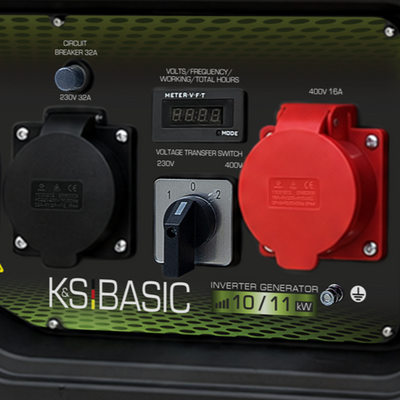

VTS System

The VTS system allows operation in both single-phase and three-phase modes without power loss, giving you greater flexibility when using various equipment.

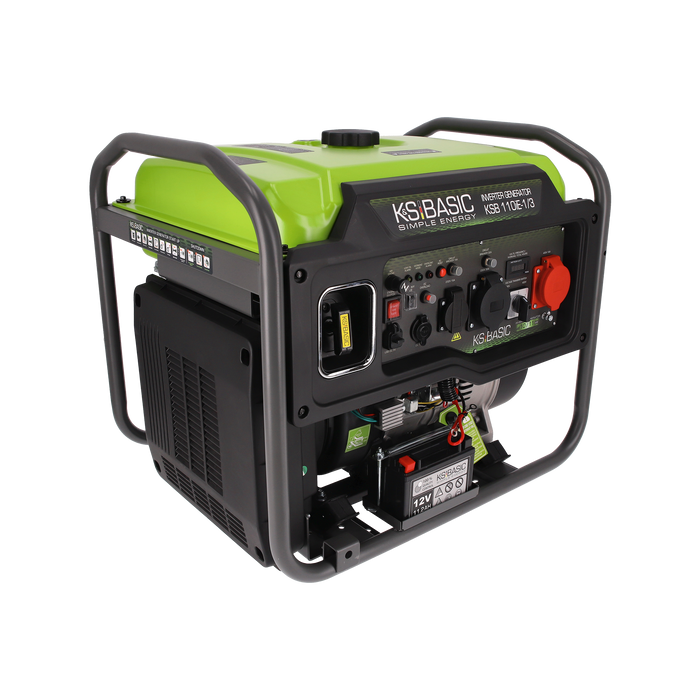

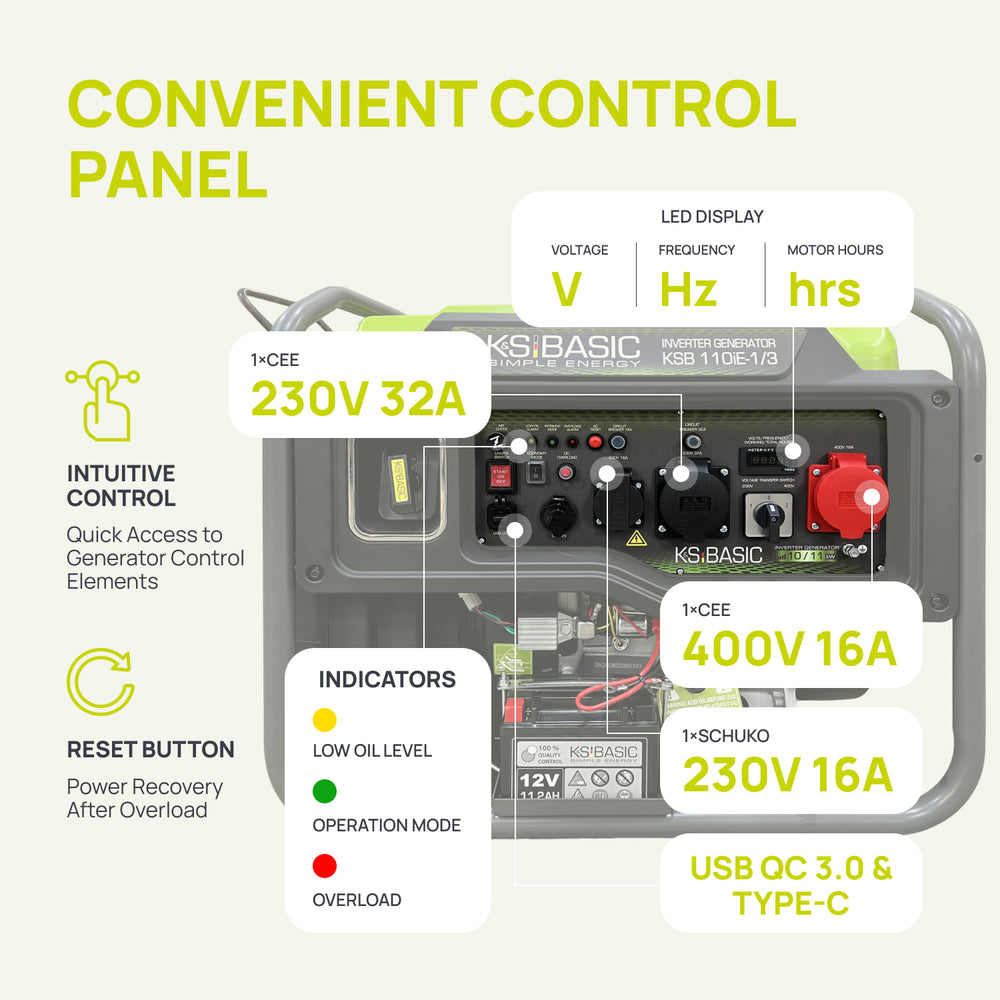

Universal Control Panel

The model is equipped with an LED display for monitoring voltage, frequency, and operating hours. Operational safety is ensured by indicators for operating status, overload, and low oil level. The panel features an ECONOMY MODE switch that reduces fuel consumption by up to 50%, extending runtime and engine life for more hours of reliable operation. A Reset button for restarting the control system and restoring voltage supply, as well as two 230 V outlets (16 A and 32 A), a 400 V outlet (16 A), a 12 V output, and a USB port.

Economy Mode

The ECONOMY MODE reduces fuel consumption under low loads by lowering engine speed. It extends runtime and engine life, providing more hours of reliable operation.

High-Quality Alternator

KS Basic inverter generators are equipped with a reliable brushless alternator with 100% copper winding. Thanks to the use of permanent magnets, it is compact, withstands peak loads without risk of damage, and ensures the longevity of the entire system.

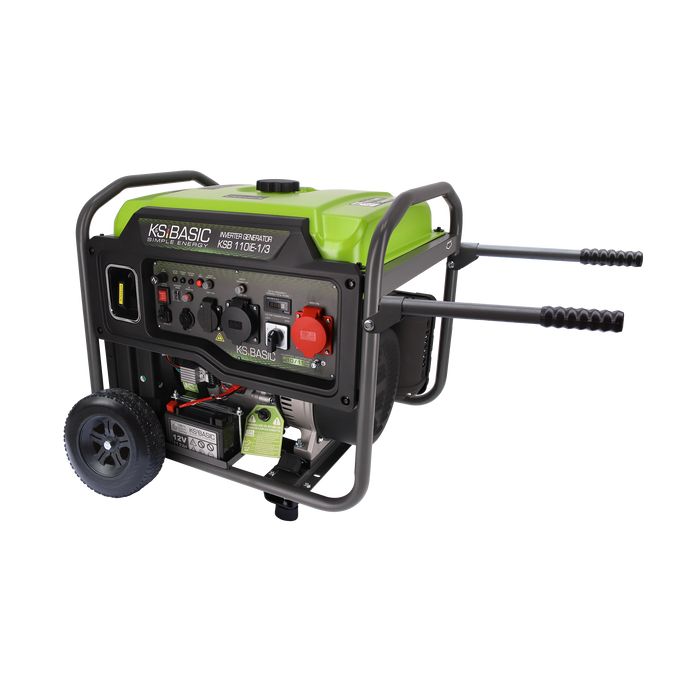

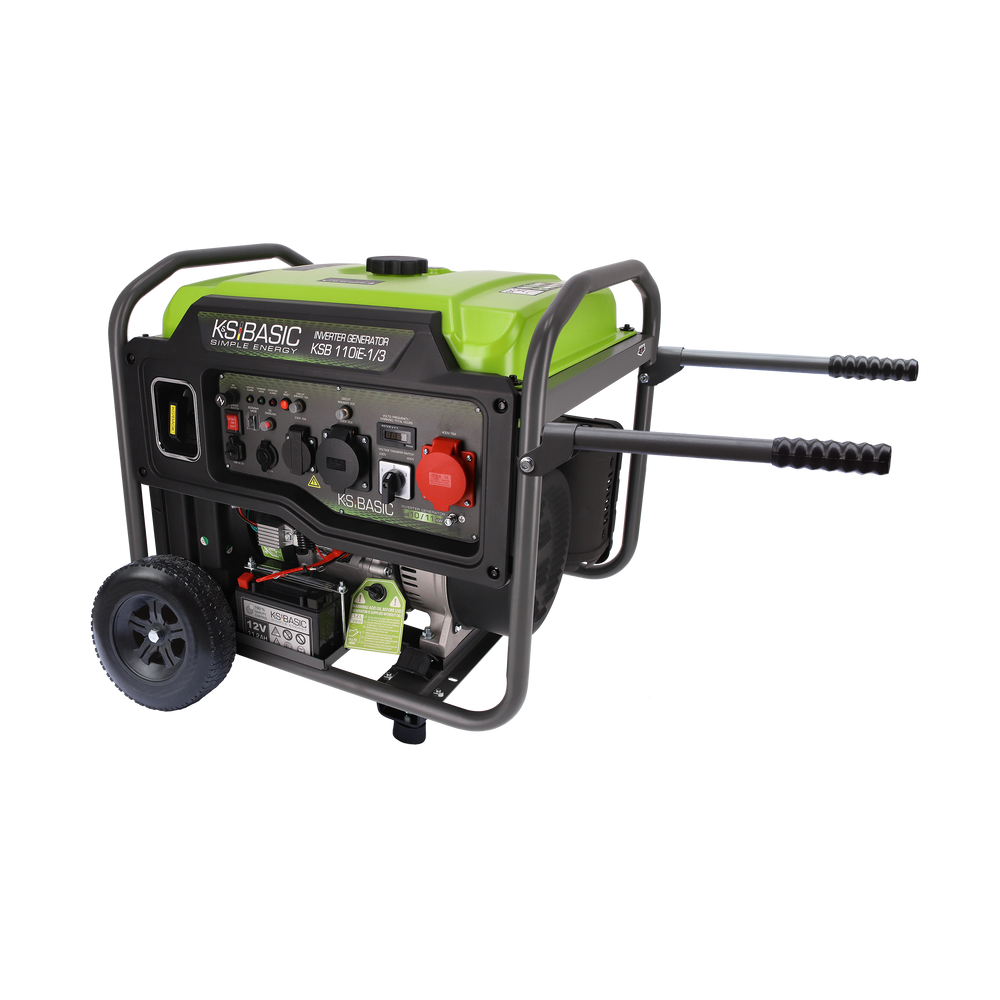

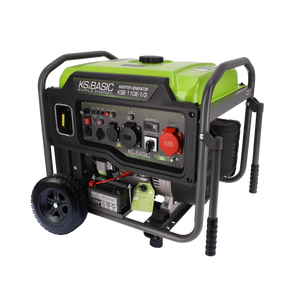

Easy Transportation

Equipped with handles and wheels, this generator is easy to transport even by one person, making it ideal for use on construction sites or while camping.

Two Start Options

The generator can be started manually or electrically, adding convenience in any situation.

Accessory Kit

Included: spark plug wrench – 1 pc., oil filling funnel – 1 pc., anti-vibration feet – 2 pcs., power plug 230 V 16 A – 1 pc., power plug 230 V 32 A – 1 pc., power plug 400 V 16 A – 1 pc., open-end wrench – 1 pc., screwdriver (PH2 / 6.0 mm) – 1 pc.

Benefits

High rated power of 10.0 kW

Provides stable and reliable power for multiple devices simultaneously, including large household appliances and tools.

VTS System

The generator supports single-phase and three-phase modes without power loss, giving you more options for working with different types of equipment.

Safe power supply for electronics

Inverter technology delivers a clean sine wave, allowing safe powering of sensitive devices such as laptops, smartphones, heating boilers, medical equipment, and other electronics without risk of damage.

Efficient fuel consumption

The built-in economy mode adjusts engine speed according to the load, reducing fuel consumption and extending runtime under low load.

Simple and intuitive operation

The ergonomic control panel with indicators for operating status, oil level, and overload makes operating the device easy even for inexperienced users.

Convenient start: manual and electric

Choose between manual and electric start for greater convenience and speed.

Easy transportation

Equipped with handles and wheels, the generator can be easily moved even by one person.

Specification

Inverter generator KSB 110iE-1/3

Voltage, V	230/400
Max power, kW	11.0 (230V/400V)
Nominal power, kW	10.0 (230V/400V)
Power factor, cosφ	1 (230 V) / 0.8 (400 V)
Frequency, Hz	50
Current (max), A	47.83 / 19.85
Outlets	1×Schuko 230V 16A, 1×CEE 230V 32A, 1×CEE 400V 16A
Engine start	Manual/Electric
Fuel tank volume, l	40
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12/8.3
USB-Outputs	USB 3.0 + Type C
Engine model	KSB 530i
Engine cylinder volume, cm3	520
Engine type	Gasoline 4-stroke cycle
Engine power, hp	20
Crank case volume, l	1.2
Accumulator (A·h)	11.2
Protection class	IP23M
Includes	Generator, Packaging, Instruction manual, Spark plug wrench, Oil funnel, 2×Anti-vibration feet, Portable power plug 230V 16A, Portable power plug 230V 32A, Portable power plug 400V 16A, Open-end wrench, Tool case, DC connection line, 2×Transport wheels, 2×Transport handles
Net dimensions (LxWxH), mm	680×550×585
Gross dimensions (LxWxH), mm	810×570×600
Net weight, kg	84
Gross weight, kg	86.0
SKU	KSB 110iE-1/3
Barcode	4260405369362

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
