KS 24VGS-DC Constant Voltage Generator with Dual-Fuel System

KS 24VGS-DC Constant Voltage Generator with Dual-Fuel System

Name: KS 24VGS-DC Constant Voltage Generator with Dual-Fuel System
Brand: Könner & Söhnen
SKU: 4260405368303
Price: 1731.0 BGN
Availability: OutOfStock

Nem elérhető

1,731.00 лв

Specifikáció

Feszültség, V:	24-27
Névleges teljesítmény, kW:	1.4
Motor indítás:	automatic (gasoline), manual

Előnyök

Ideal solution for charging batteries in 24V systems such as solar stations, surveillance and security systems, and for maintaining/charging the battery during vehicle parking, and more.
Dual-Fuel Support (Gasoline/LPG) – Operates on either gasoline or liquefied petroleum gas (LPG), enabling you to choose the most cost-efficient and available fuel option.

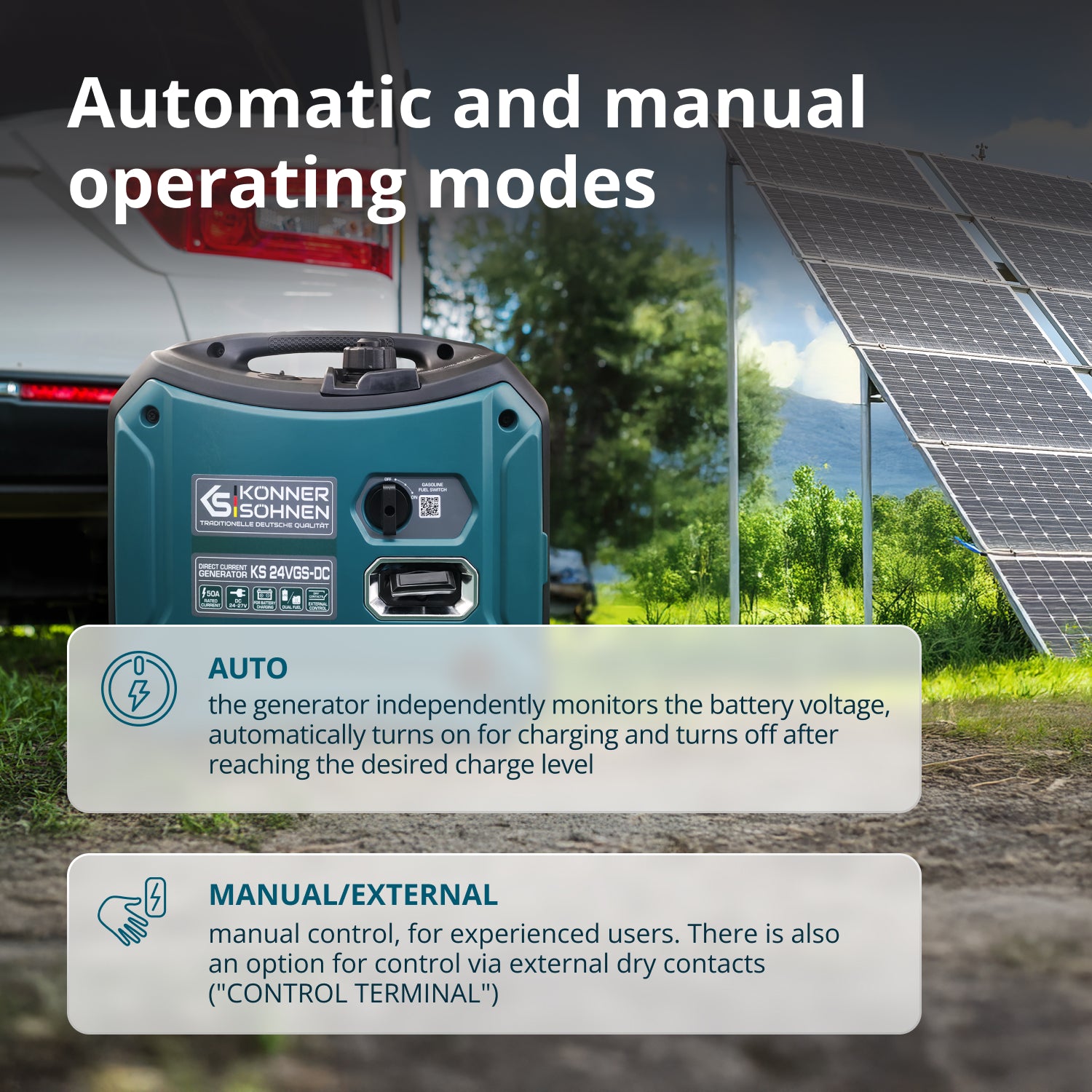

Automatic Operation Mode – In AUTO mode, the generator functions as a battery charger: it starts automatically when the battery runs low and stops once charging is complete, switching to standby mode.
MANUAL/EXTERNAL Control Mode – In this mode, the generator can be started manually or via an external device using "dry contacts".
Soundproof Casing – Reduces noise level during use, ensuring quieter and more comfortable working conditions.

Jellemzők

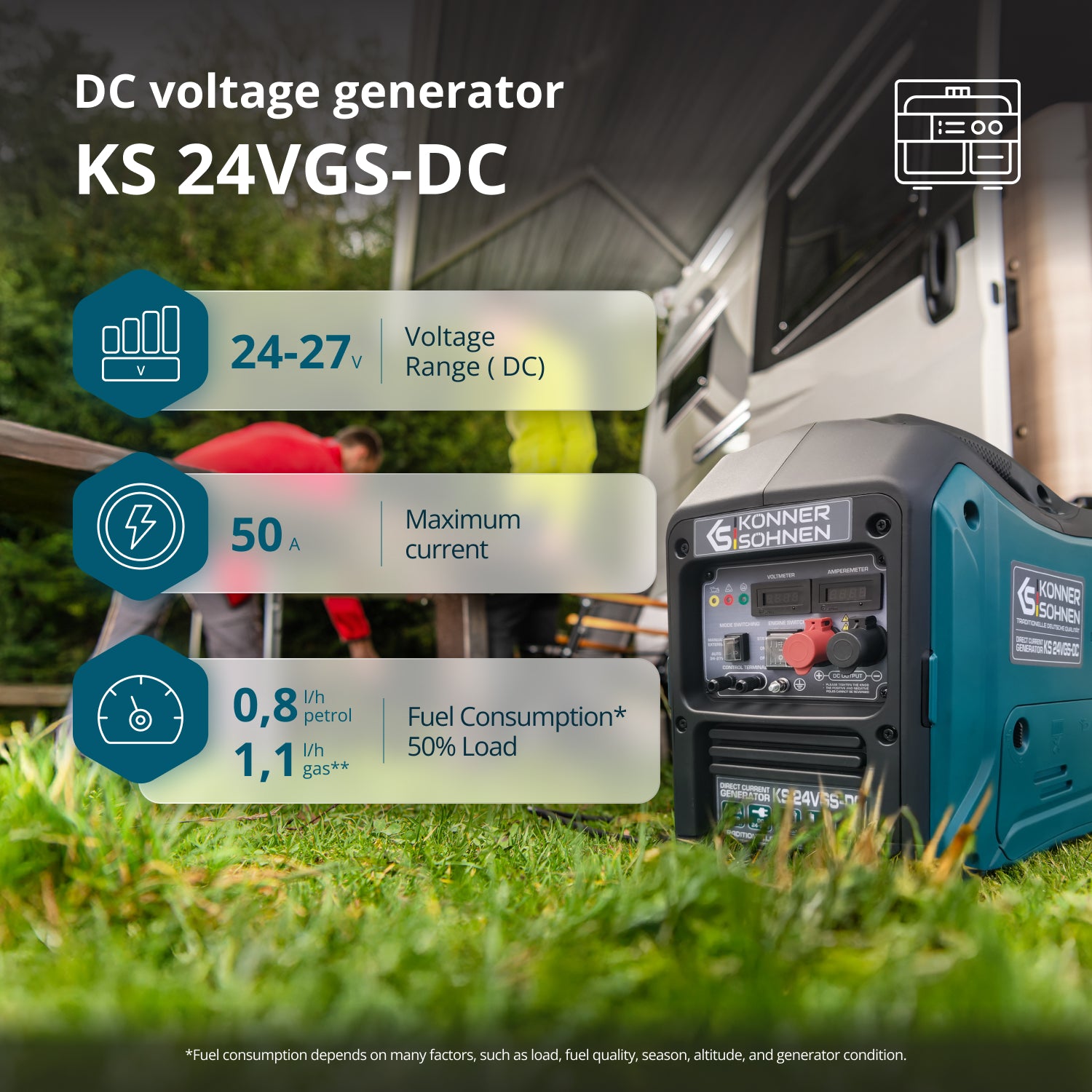

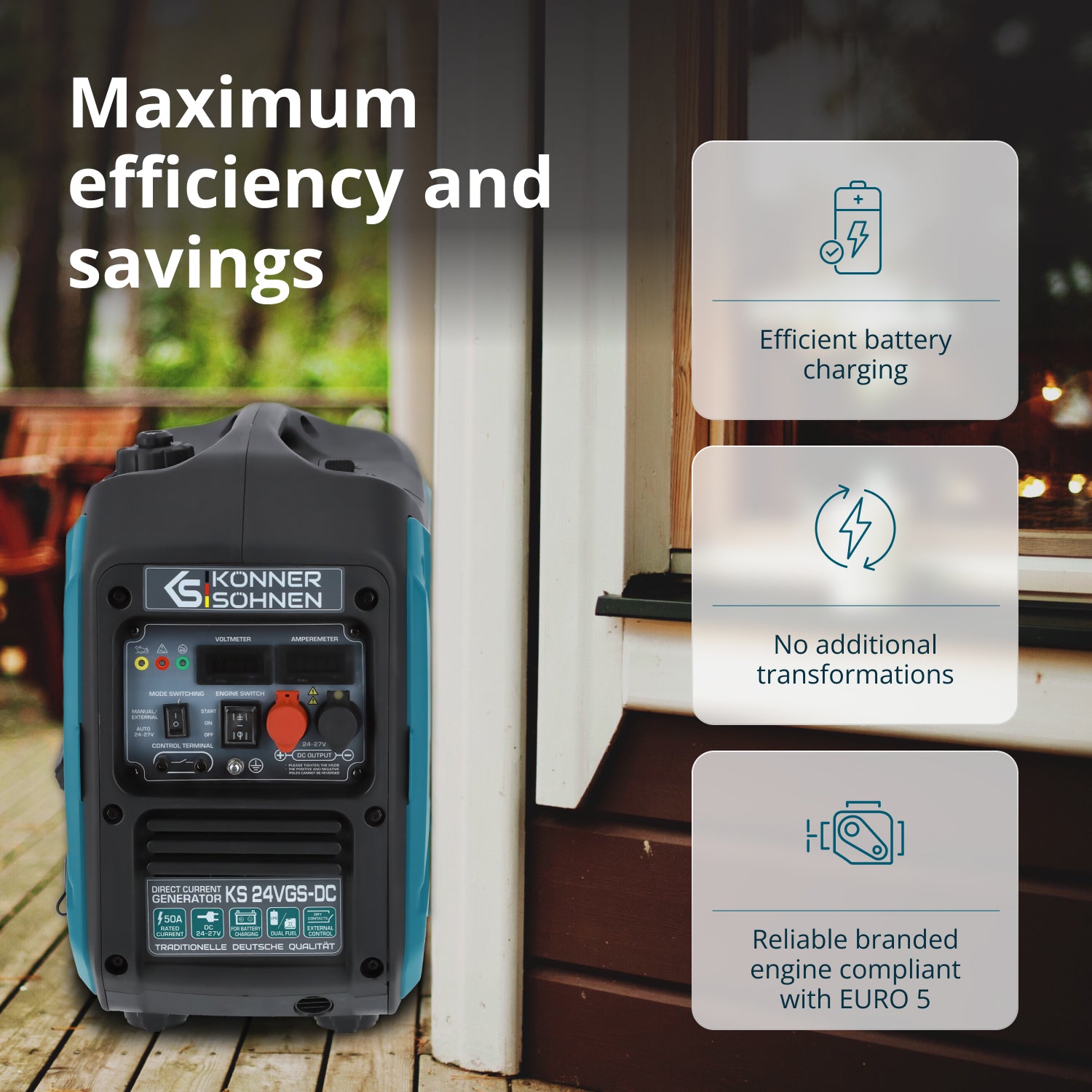

The 24–27V 50A, dual-fuel, constant voltage generator by German brand Könner & Söhnen® is designed as a backup charging device for 24–27V batteries, combining efficiency and ease of use. Direct DC charging eliminates the need for voltage conversion and reduces fuel consumption, compared to AC generators. Automatic mode monitors battery charge, while a user-friendly control panel simplifies operation. Ideal for solar stations, telecom systems, and more. Operates on gasoline or LPG. Soundproof casing reduces noise, ensuring comfortable operation.

01 Dual-fuel mode (gasoline/LPG)

02 Parameter control

03 Convenient start-up

04 Engine protection

05 Operational safety

06 Reduced noise level

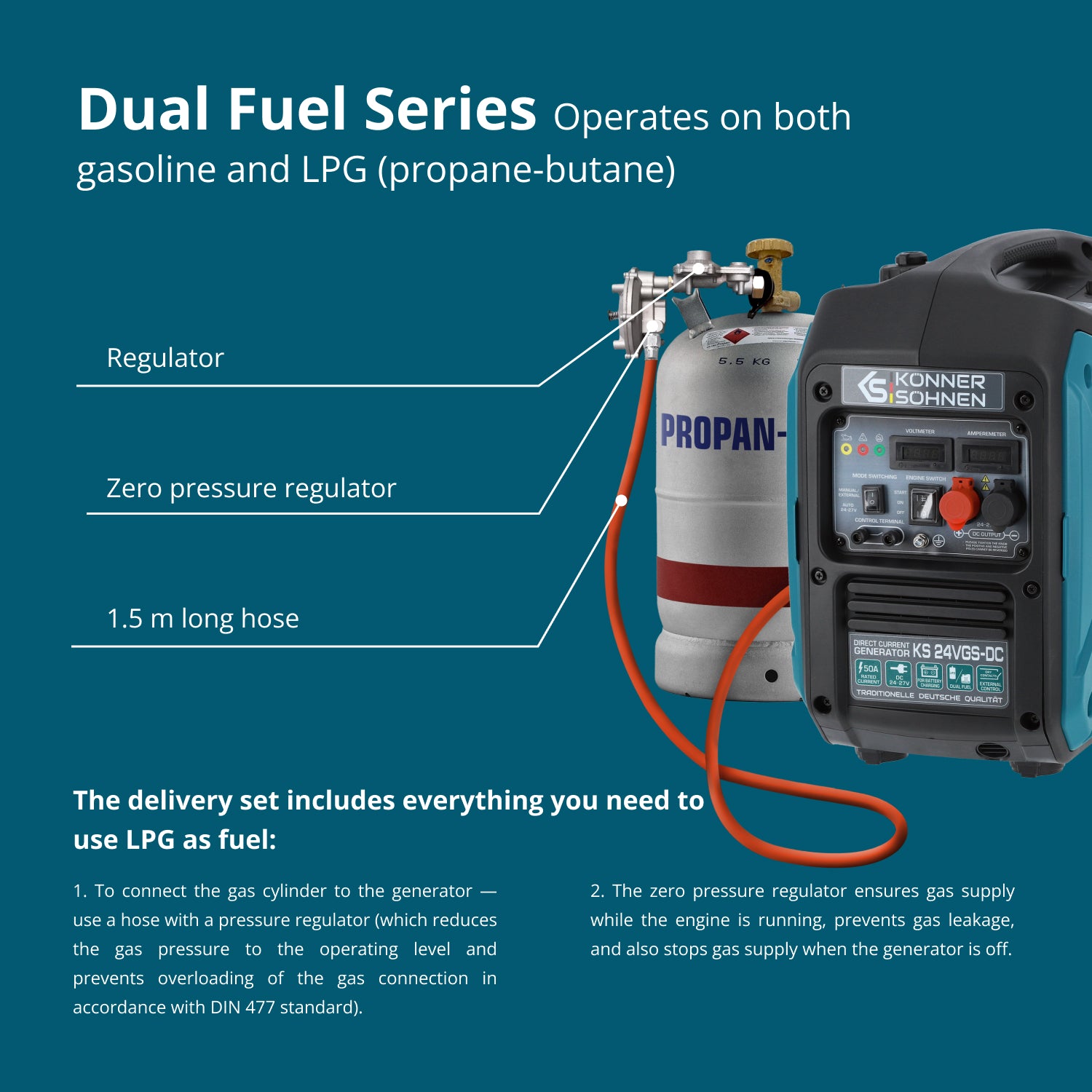

Dual-fuel mode (gasoline/LPG)

The generator can run on both gasoline and liquefied petroleum gas, ensuring flexibility in fuel choice. LPG helps reduce operating costs and harmful emissions.

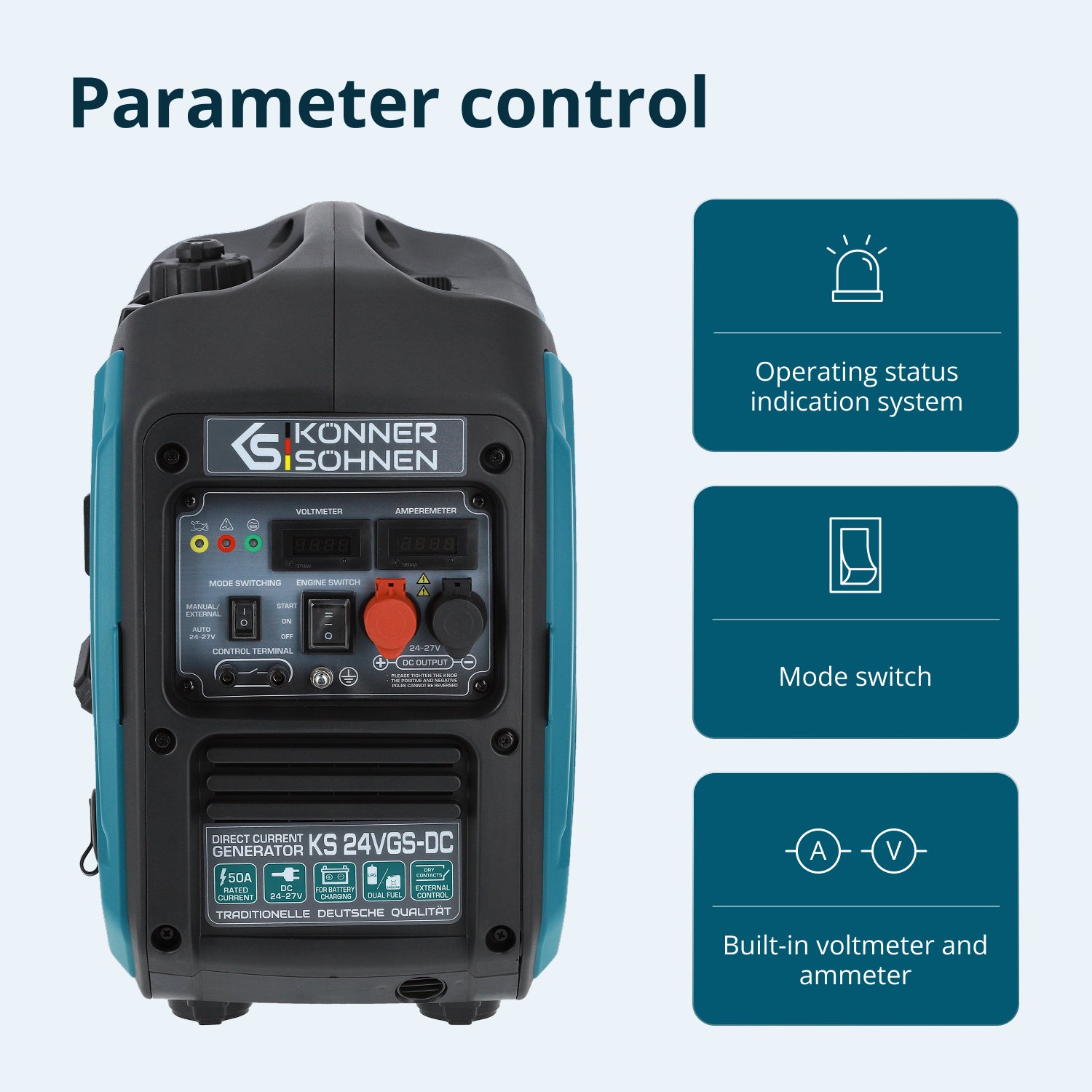

Parameter control

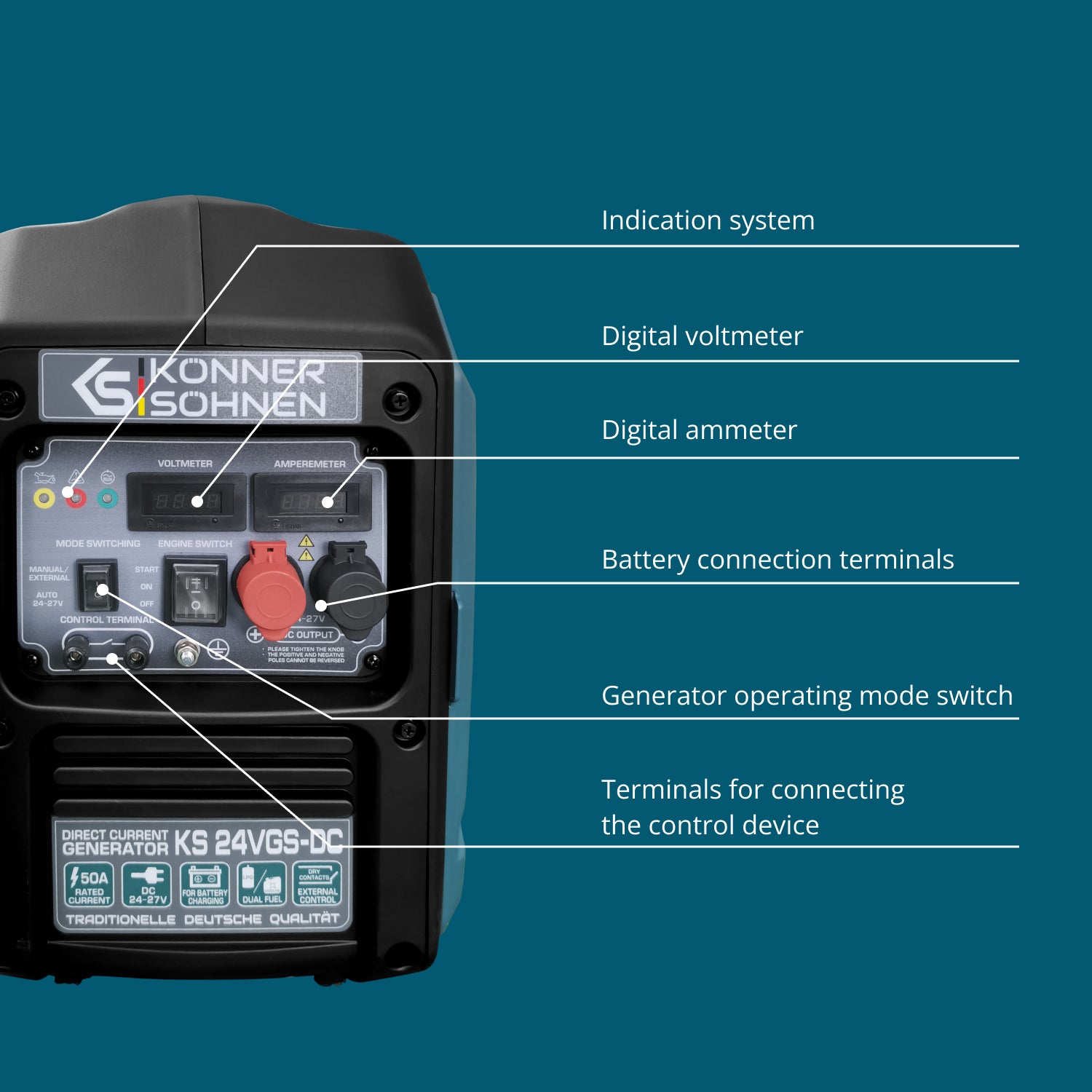

Thanks to integrated measuring instruments (voltmeter and ammeter), you can accurately monitor electrical parameters, which is essential for safe operation.

Convenient start-up

The option of manual or automatic starting enables the generator to adapt to different usage scenarios, ensuring autonomy during power outages.

Engine protection

Thanks to the oil level sensor and indicator, the user receives timely notifications when oil needs to be added, preventing overheating and extending engine life.

Operational safety

The generator is equipped with a control system that protects it from overload, overheating, and conditions that could put the inverter unit and alternator out of order, increasing the reliability of the device.

Reduced noise level

The vandal-resistant soundproof casing ensures quieter operation, making the generator suitable not only for construction sites but also for use in residential areas.

Specifikáció

KS 24VGS-DC Constant Voltage Generator with Dual-Fuel System

Feszültség, V	24-27
Névleges teljesítmény, kW	1.4
Jelenlegi (max), A	50
Üzemanyagtartály térfogata, l	5
LED kijelző	voltage, amperage
Zajszint Lpa (7m)/Lwa, dB	62/87
Motormodell	KS 100i
Motortípus	Gasoline/LPG 4-stroke
Motor teljesítmény, LE	2.5
Forgattyúház térfogata, l	0.4
Motor hengerűrtartalma, cm3	79.7
Motor indítás	automatic (gasoline), manual
Védelmi osztály	IP23M

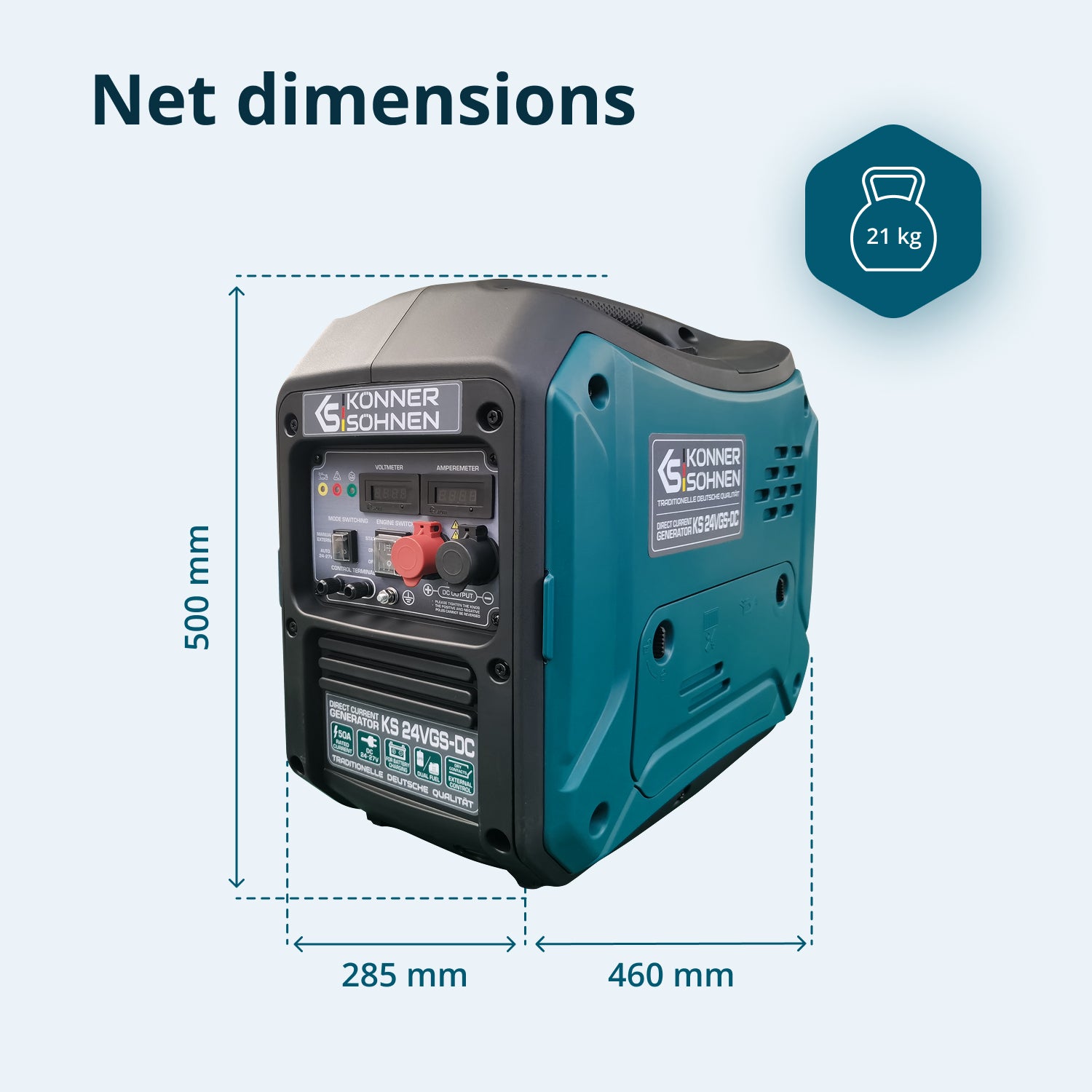

Nettó méretek (HxSzxM), mm	500×285×46
Bruttó méretek (HxSzxM), mm	700×335×540
Nettó tömeg, kg	21
Bruttó súly, kg	24.0
SKU	KS 24VGS-DC
Vonalkód	4260405368303

FIGYELEM! A terméket motorolaj és benzin nélkül árusítjuk. Az első indítás előtt négyütemű benzinmotorokhoz való motorolajat kell betölteni. Ajánlott 10W-30 vagy 10W-40 olaj használata. Minden használat előtt ellenőrizze az olajszintet. Kizárólag ólommentes, 90–95 oktánszámú, legfeljebb 10% etanolt tartalmazó benzint használjon.
