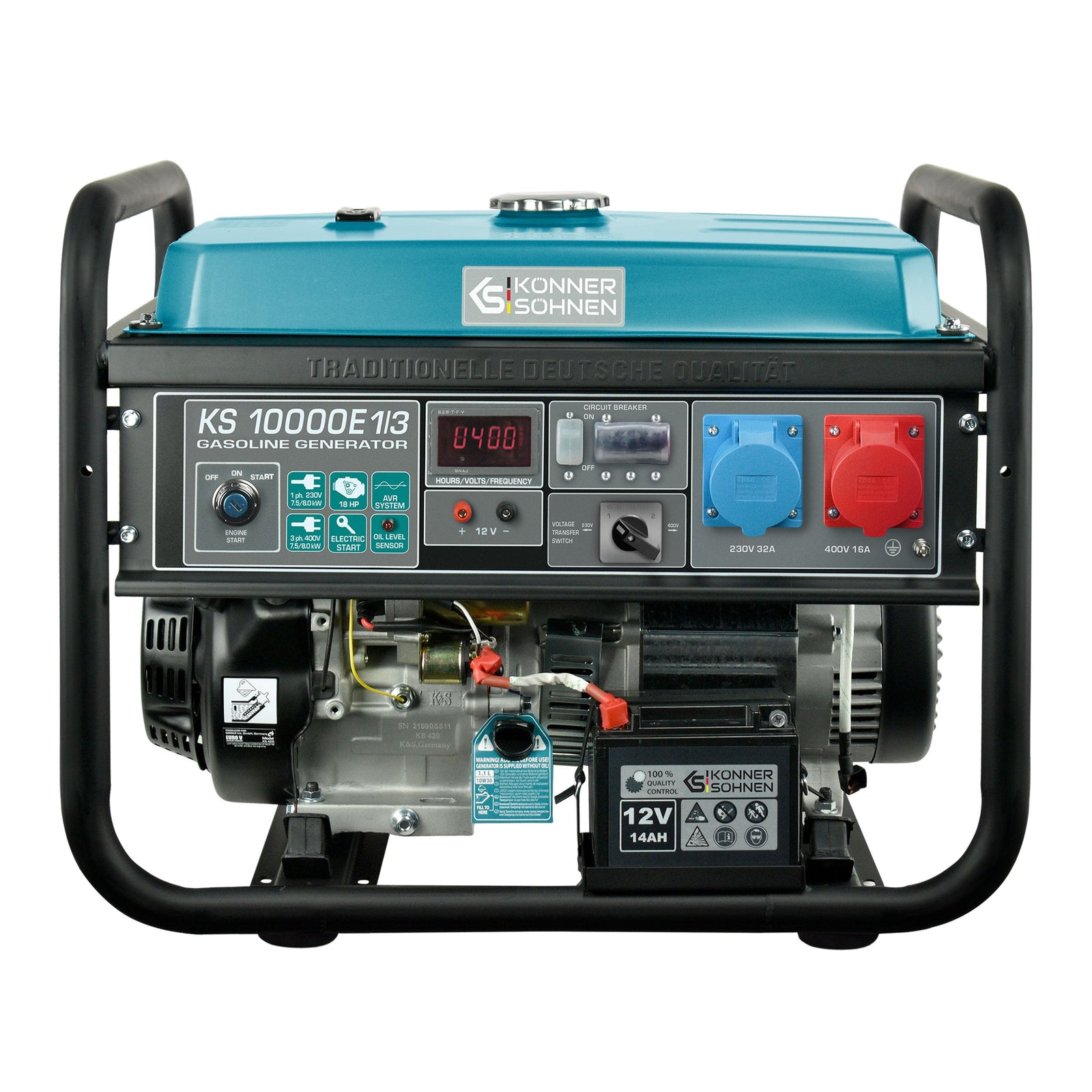

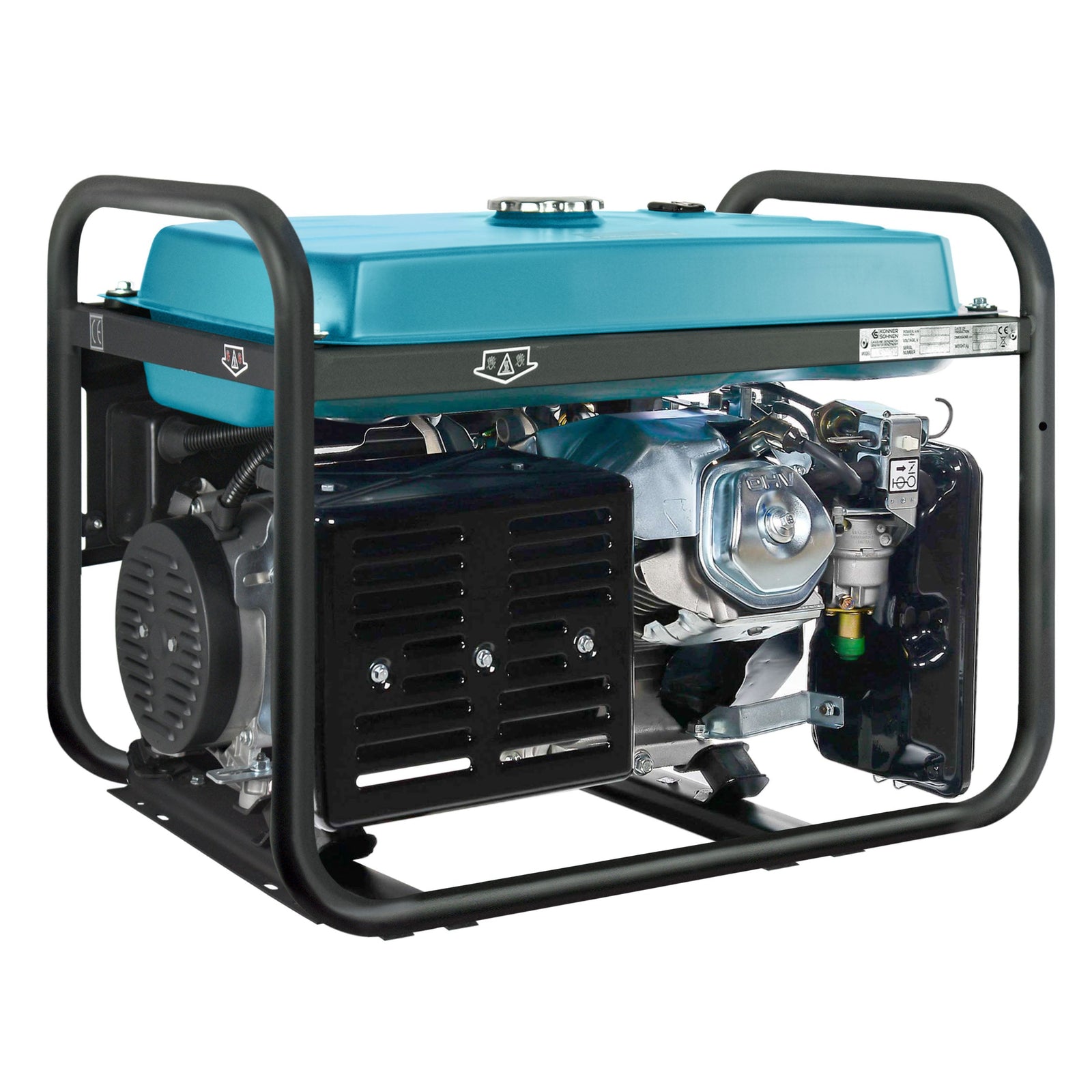

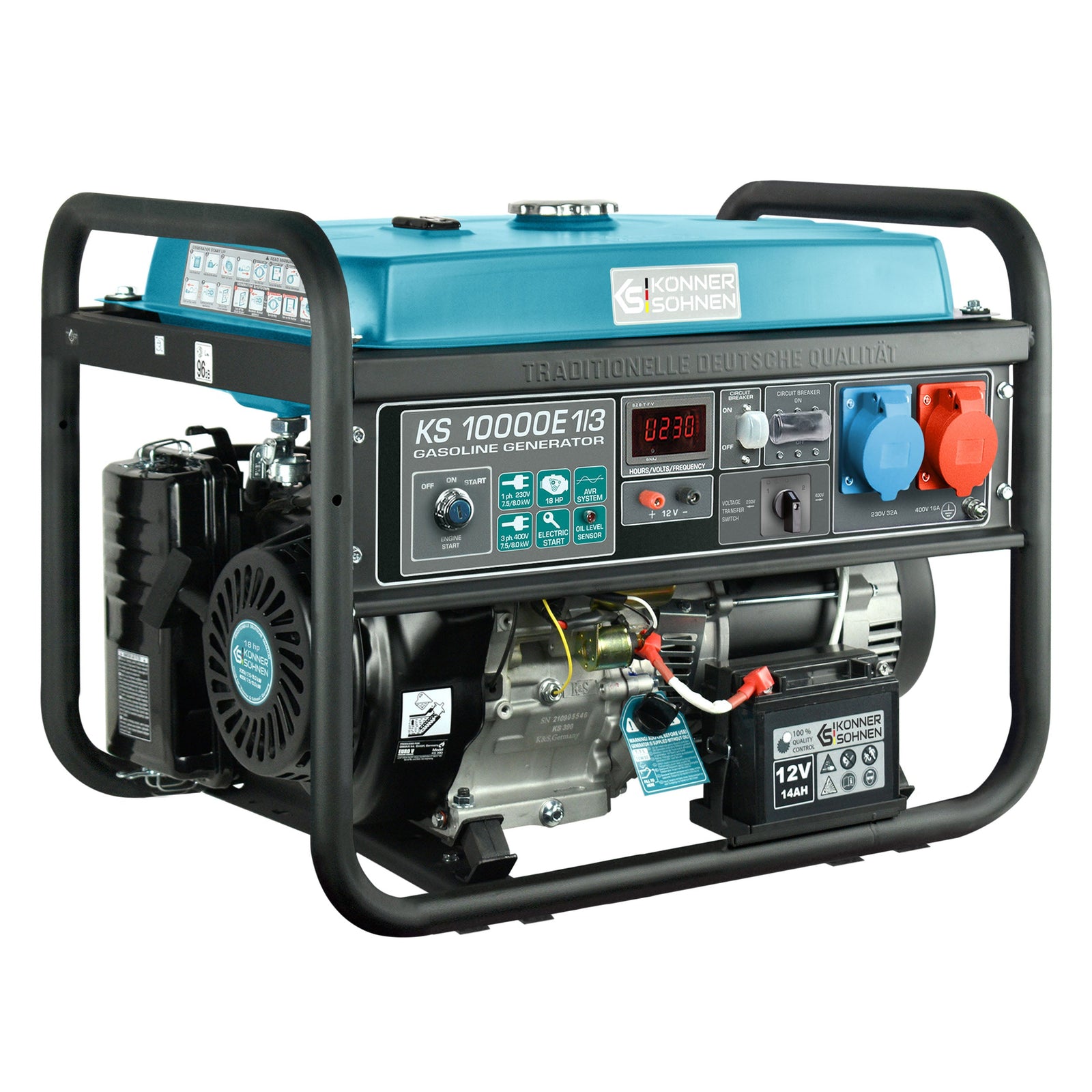

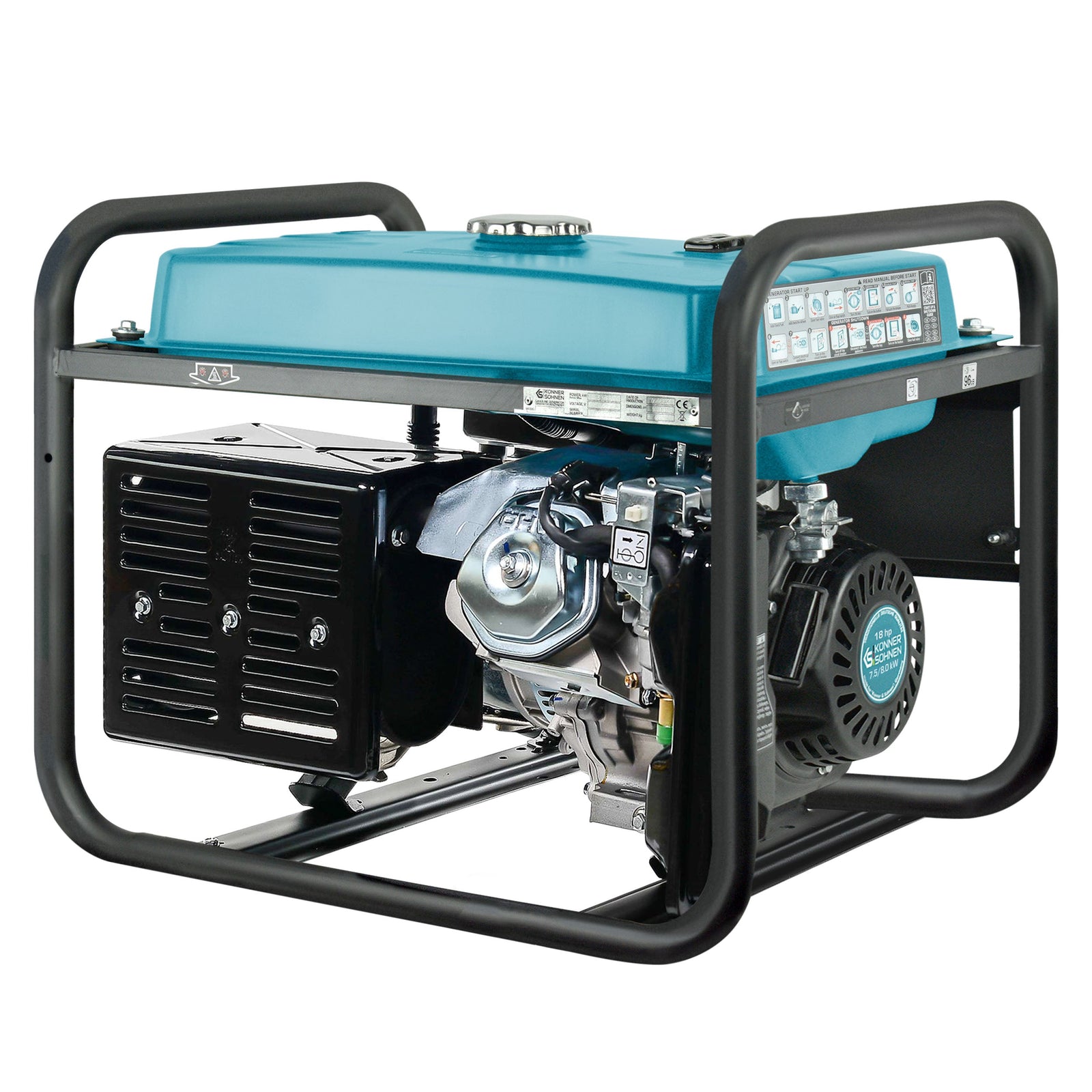

Name: Gasoline generator "Könner & Söhnen" KS 10000E 1/3
Brand: Könner & Söhnen
SKU: 4260405361601
Price: 1185.95 EUR
Availability: InStock

Available

€1.185,95

Specification

Voltage, V:	230/400
Max/Nominal power (230V), kW:	8.0/7.5
Max/Nominal power (400V), kW:	8.0/7.5
Engine start:	Manual/electric
Outlets:	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	8.0/7.5
Max/Nominal power (400V), kW	8.0/7.5
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	34.78/14.45
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Runtime at 50% load, h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M

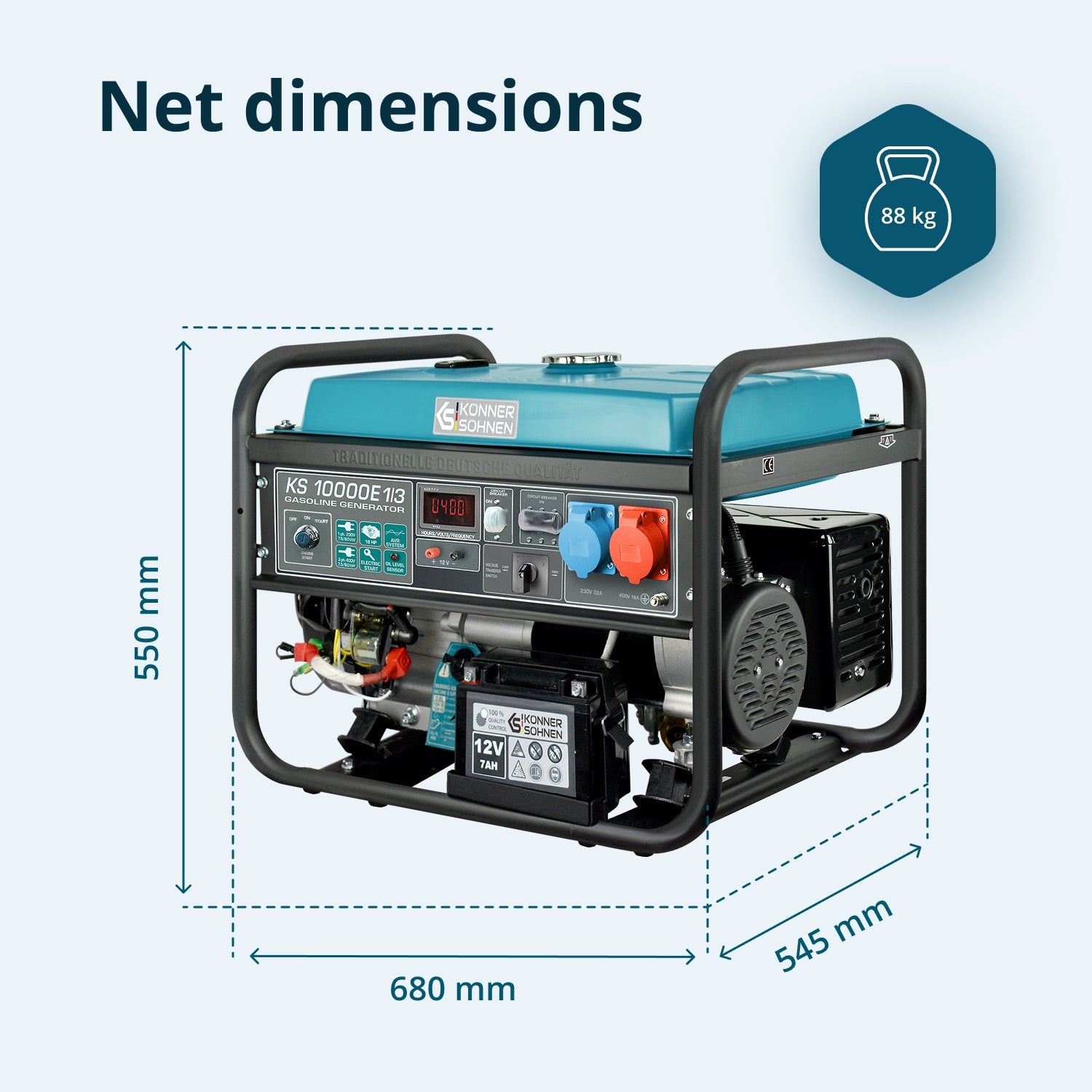

Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	88
Gross weight, kg	90.0
SKU	KS 10000E 1/3
Barcode	4260405361601

Benefits

The innovative VTS phase-switching system allows the generator to operate in both 3-phase and single-phase modes without power loss
The generator is equipped with all necessary protections, extending its lifespan
The display shows real-time electrical production metrics as well as the number of operating hours
Extended runtime on a single tank due to the large fuel tank
Rubber feet protect against slipping and corrosion

Features

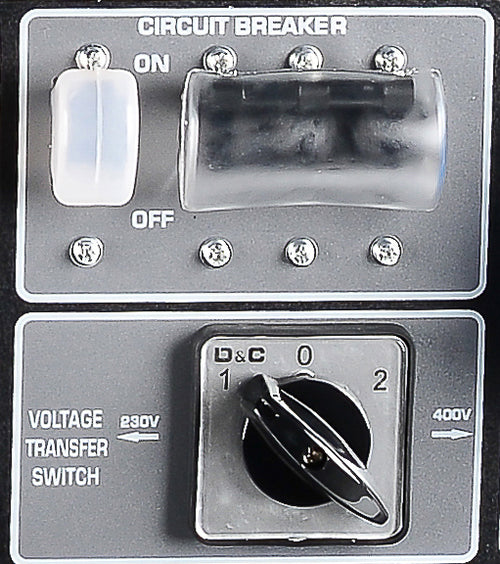

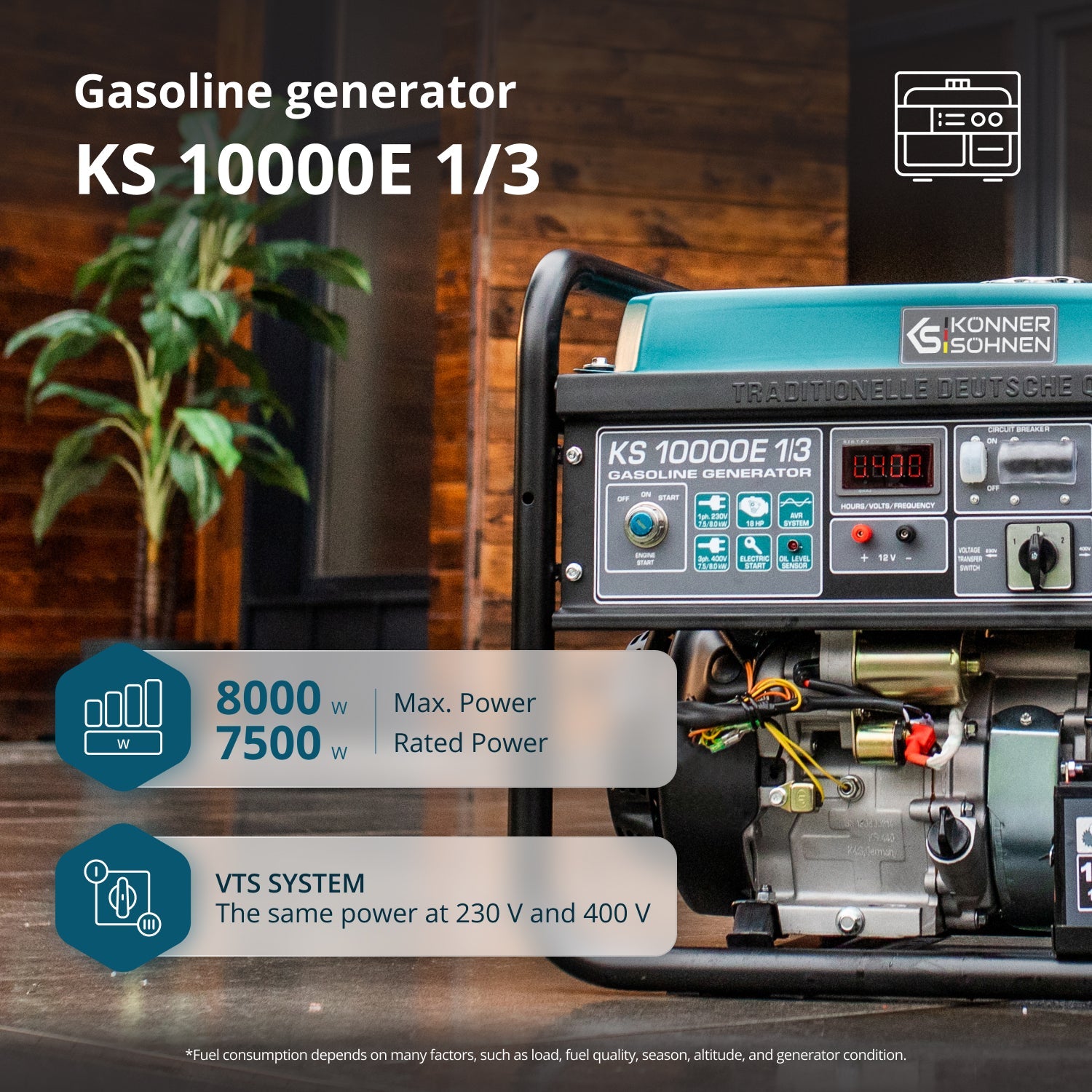

Vts system

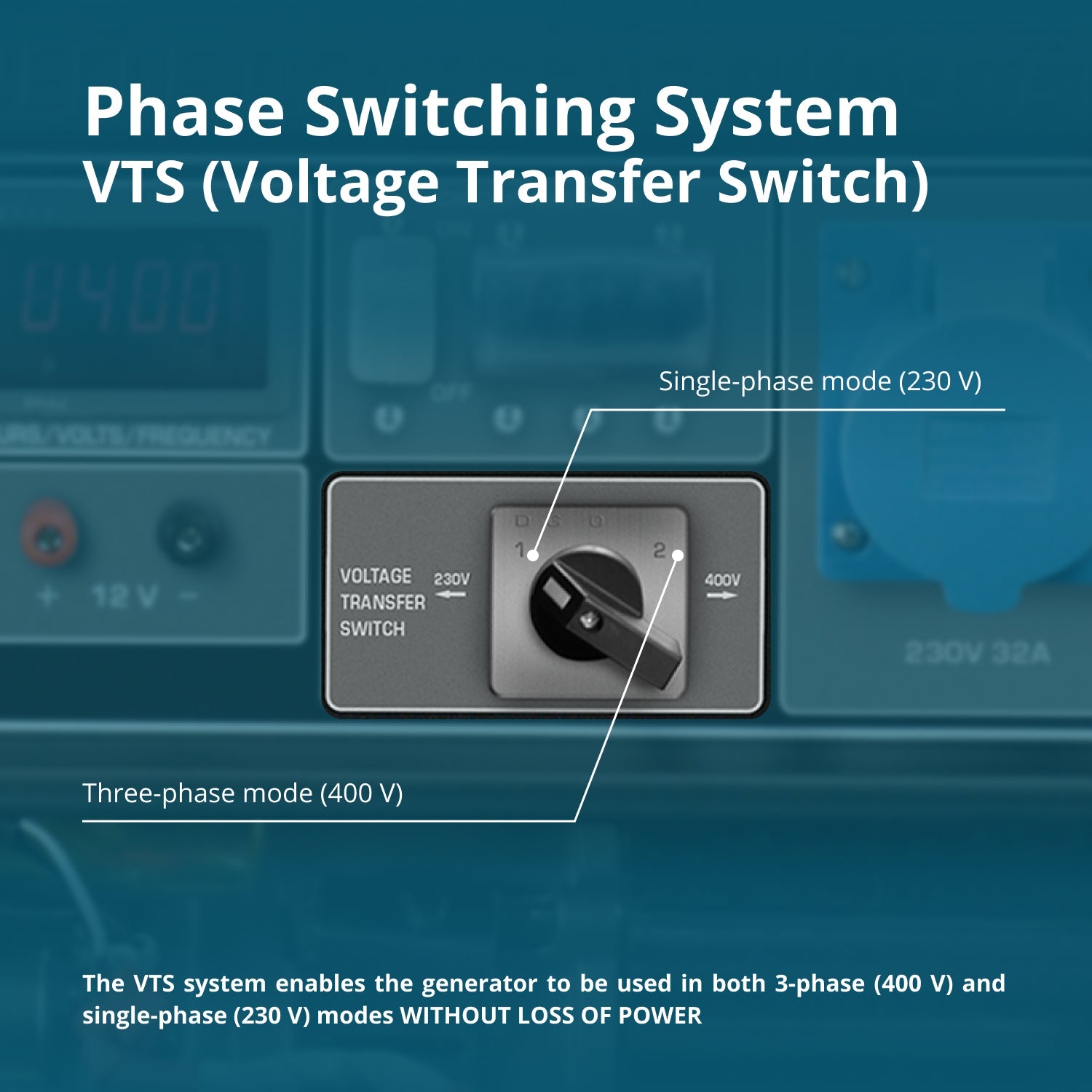

The unique innovative VTS (Voltage Transfer Switch) phase switching system with equal power for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker.

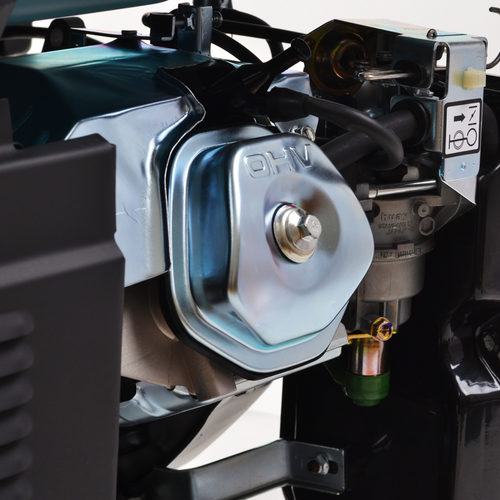

Könner & söhnen engines

Each TM Könner & Söhnen engine has an additional power reserve, which ensures TM Könner & Söhnen generators deliver the declared power for sure.

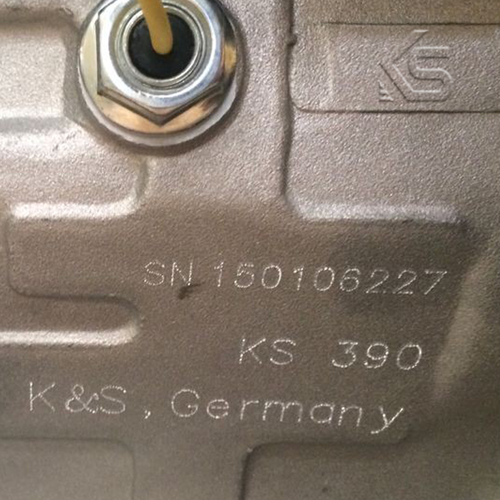

Individual serial numbers on engines

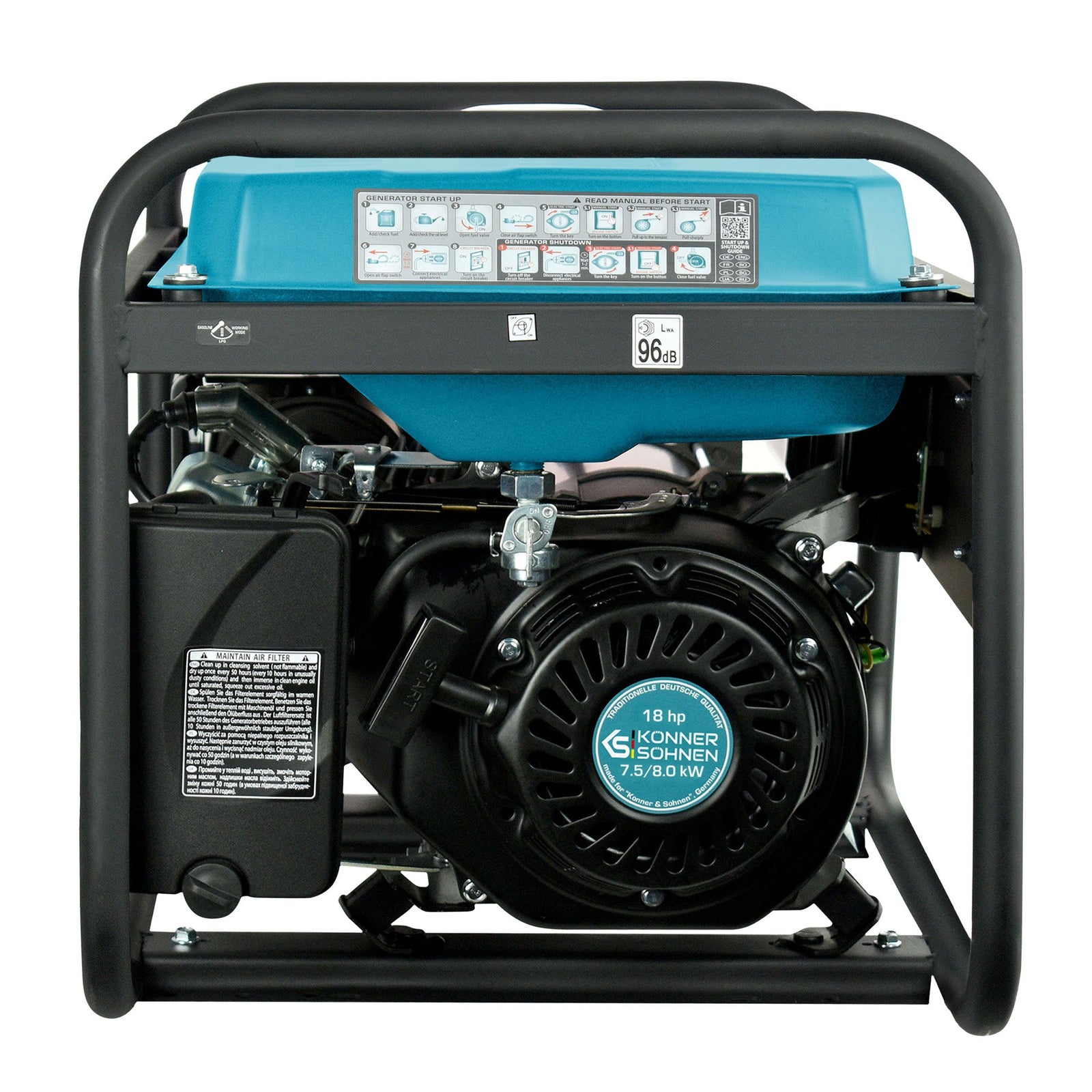

Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO V emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service. Könner & Söhnen motors have easy start and low vibration. The KS 10000 range of gasoline generators is equipped with a reliable 1-cylinder 18 hp engine.

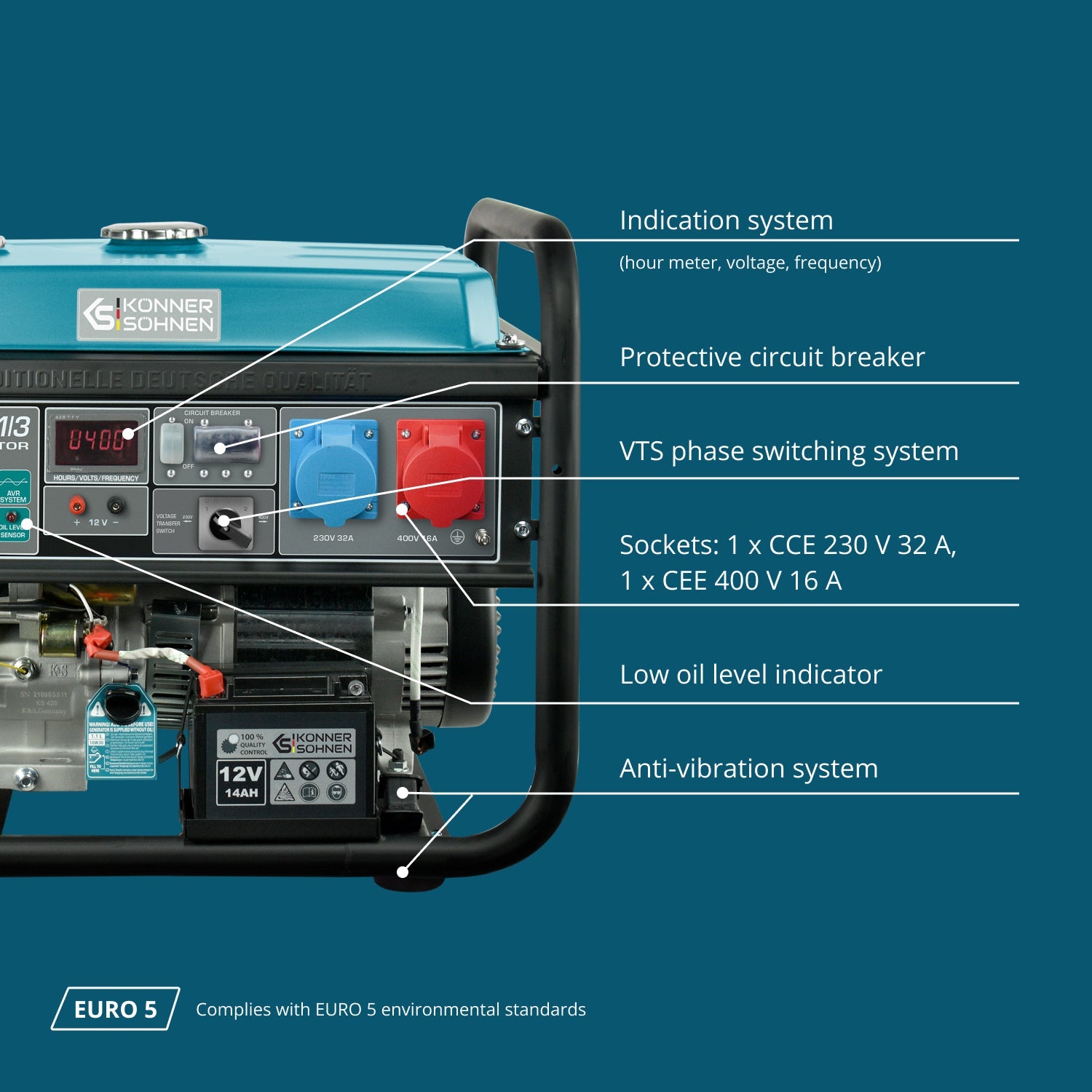

Convenient ergonomic control panel

Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

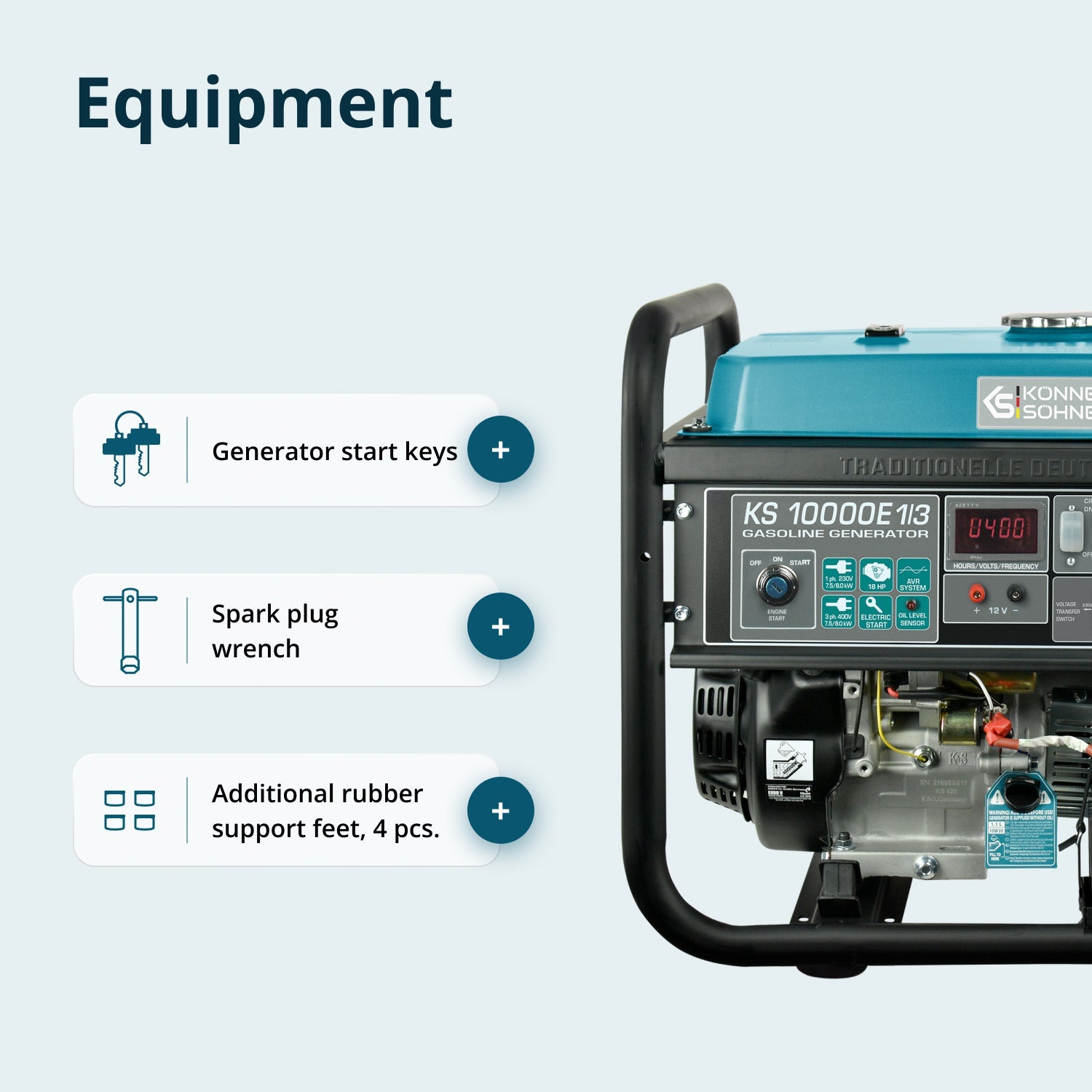

Equipment

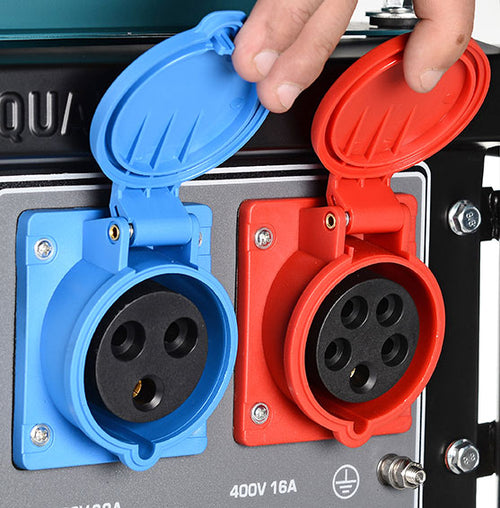

The generator panel is equipped with ergonomic connectors for connecting single- and threephase consumers. High-output sockets are made of high-quality heat-resistant plastic.

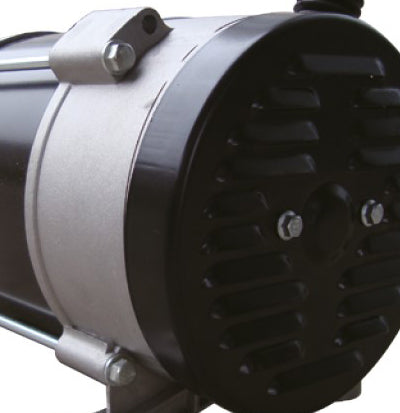

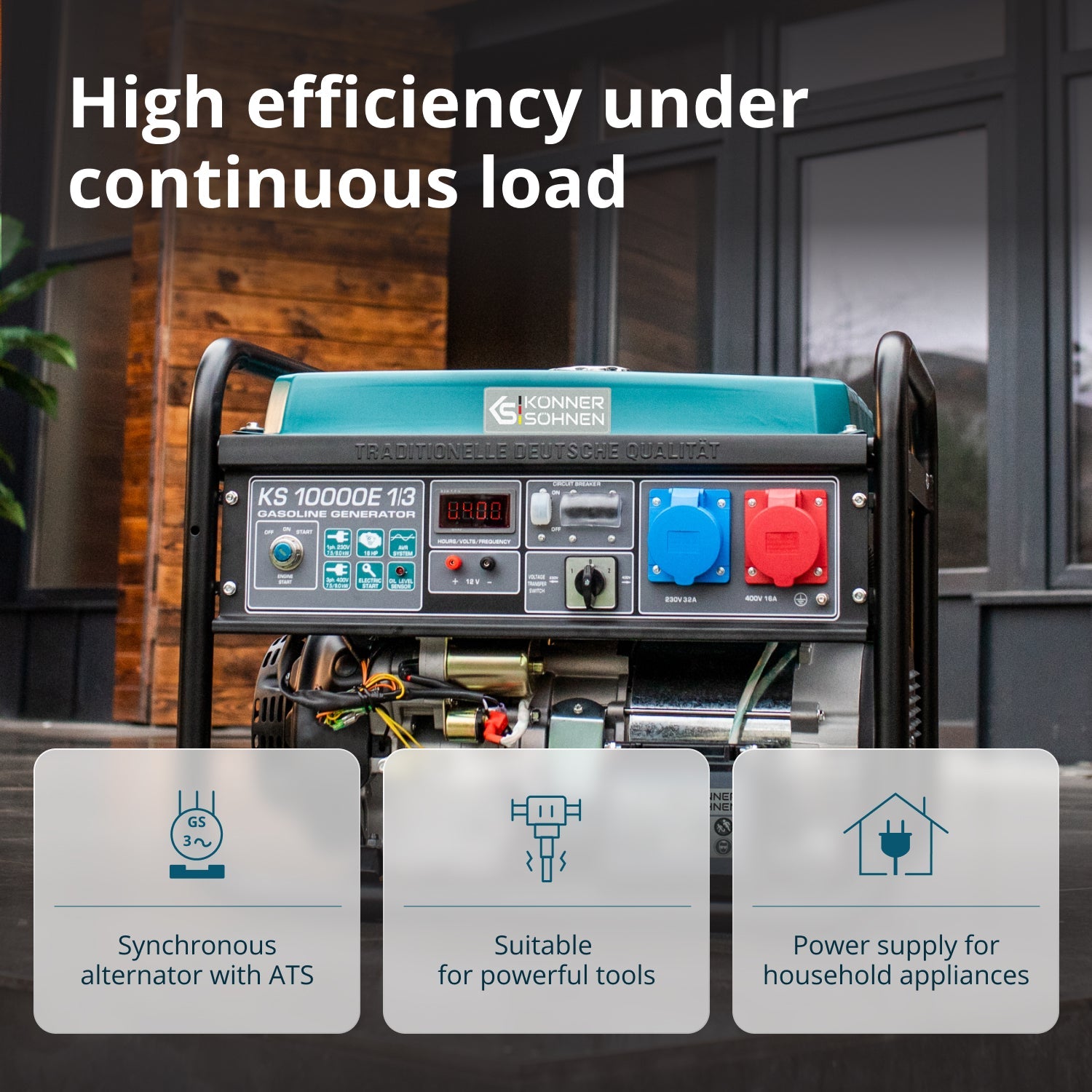

Synchronous alternator

The synchronous alternator with integrated intelligent AVR system is specially designed for singleand three-phase operation without loss of power. High workmanship and copper winding can withstand prolonged ultimate loads.

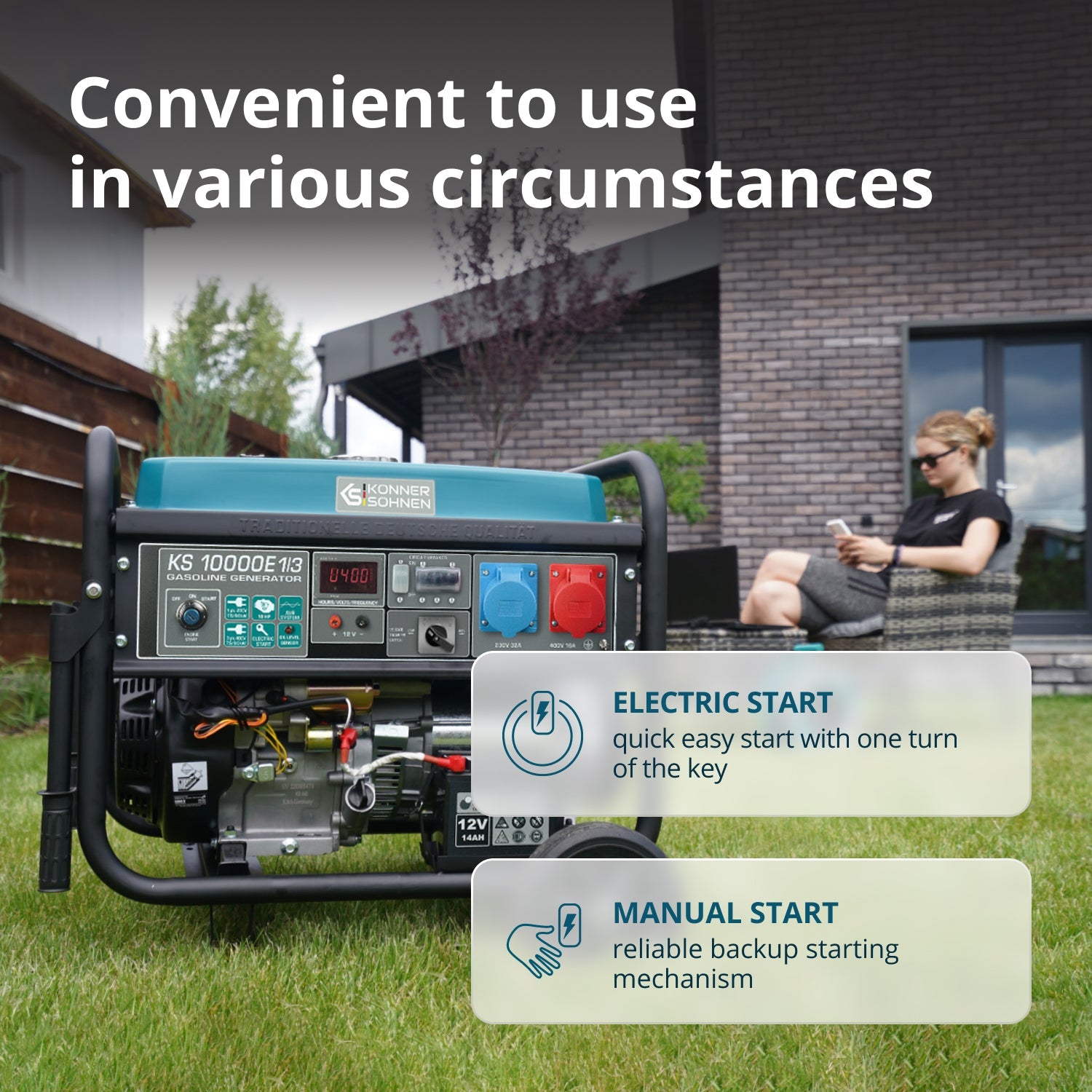

Easy start system

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup - manual and electric. More powerful models are additionally equipped with an electric start system.

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

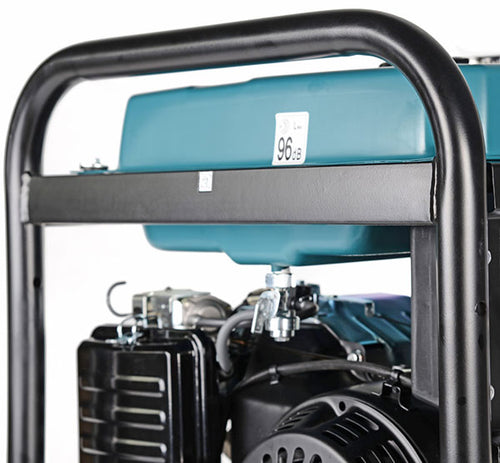

Reinforced steel frame

This model is equipped with a strong steel frame with a diameter of ø 32 mm, which serves to protect the generator from various kinds of damage and provides convenient transportation.

Dampers to lower vibration

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

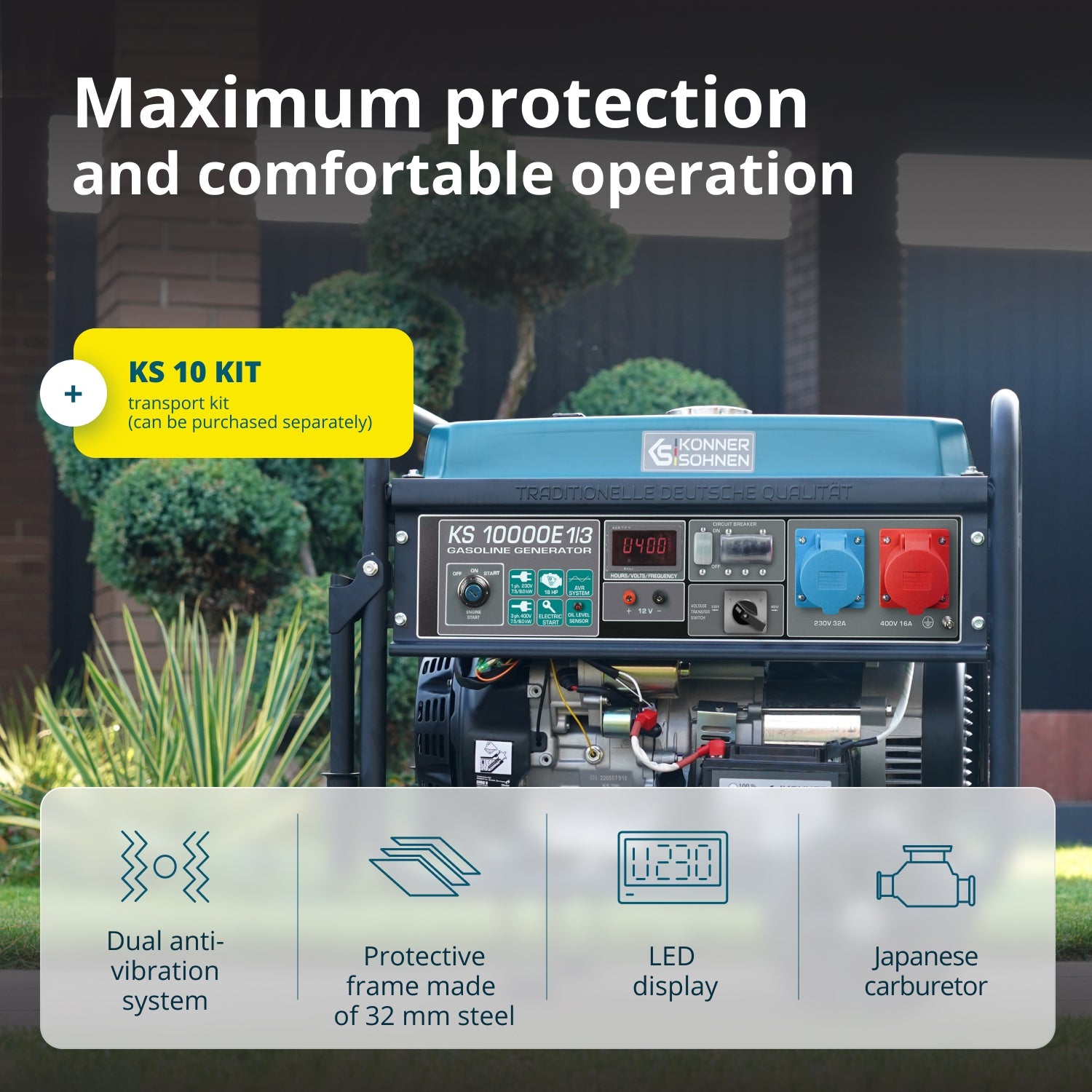

Optional KS 10 KIT

The transport kit KS 10 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.

Circuit Breaker

Оverload and short circuit protection

Double Anti-Vibration System

To ensure noise reduction and extend the service life of the generator

Outlets

1 × CEE 230 V 32 A, 1 × CEE 400 V 16 A

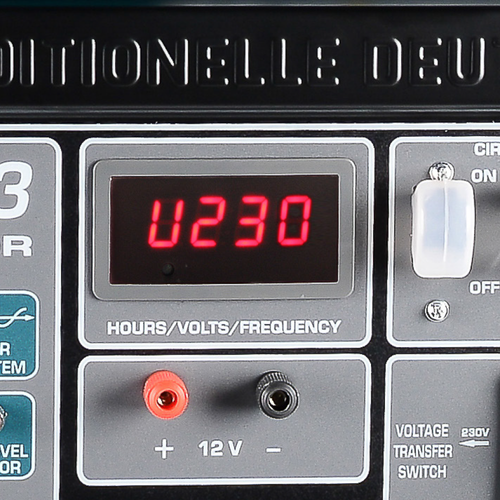

LED Display

Hour meter, frequency, voltage

Low Oil Level Indicator

Enables oil level monitoring without requiring manual inspection

VTS phase switching system

Using the generator both in three-phase mode (400V) and in single-phase mode (230V)

Specification

Gasoline generator "Könner & Söhnen" KS 10000E 1/3

Voltage, V	230/400
Max/Nominal power (230V), kW	8.0/7.5
Max/Nominal power (400V), kW	8.0/7.5
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	34.78/14.45
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Runtime at 50% load, h***	15
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine model	KS 440
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	18.0/13.24
Fuel type	Gasoline
Crank case volume, l	1.2
Engine cylinder volume, cm3	440
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	680x545x550
Gross dimensions (LxWxH), mm	700x545x590
Net weight, kg	88
Gross weight, kg	90.0
SKU	KS 10000E 1/3
Barcode	4260405361601

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
