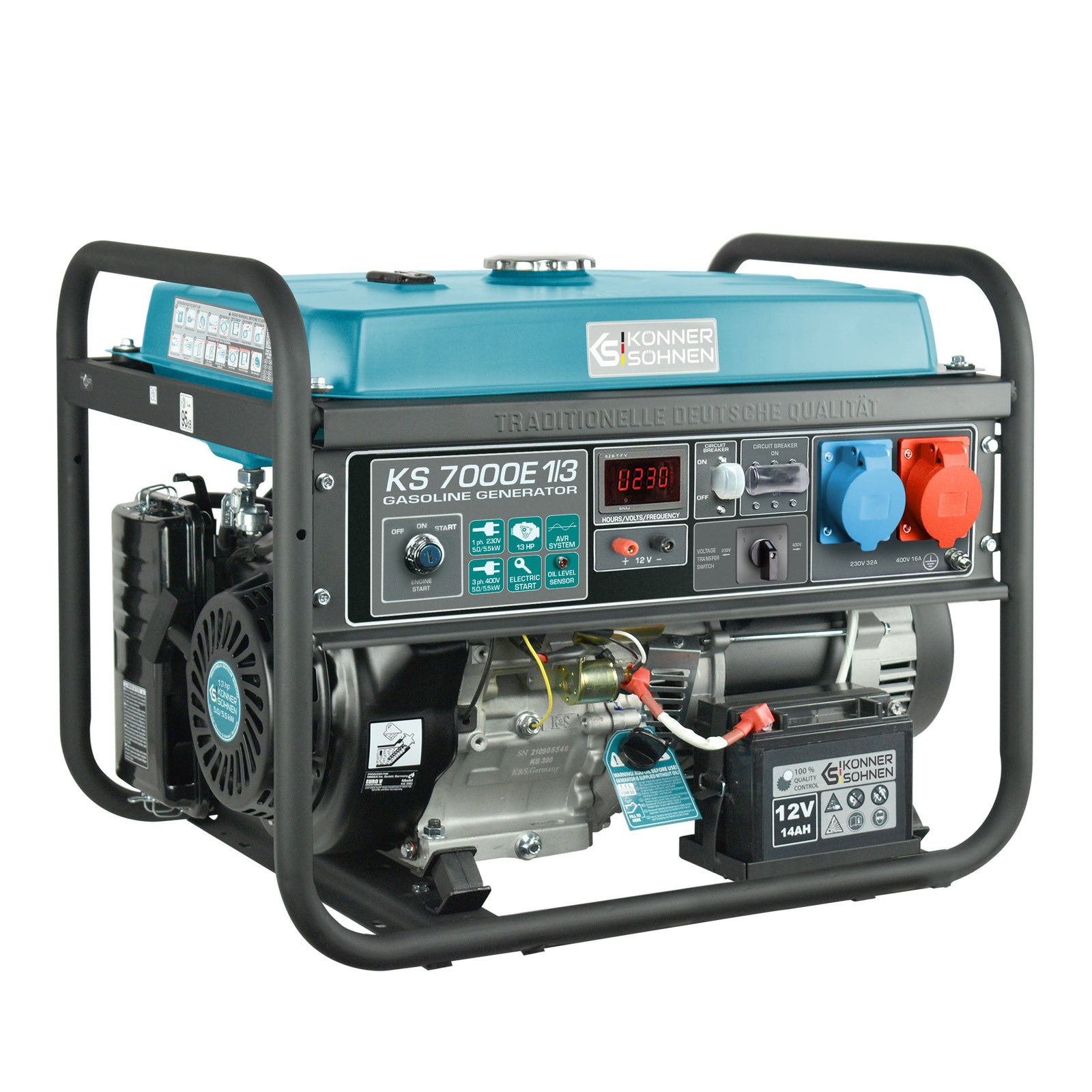

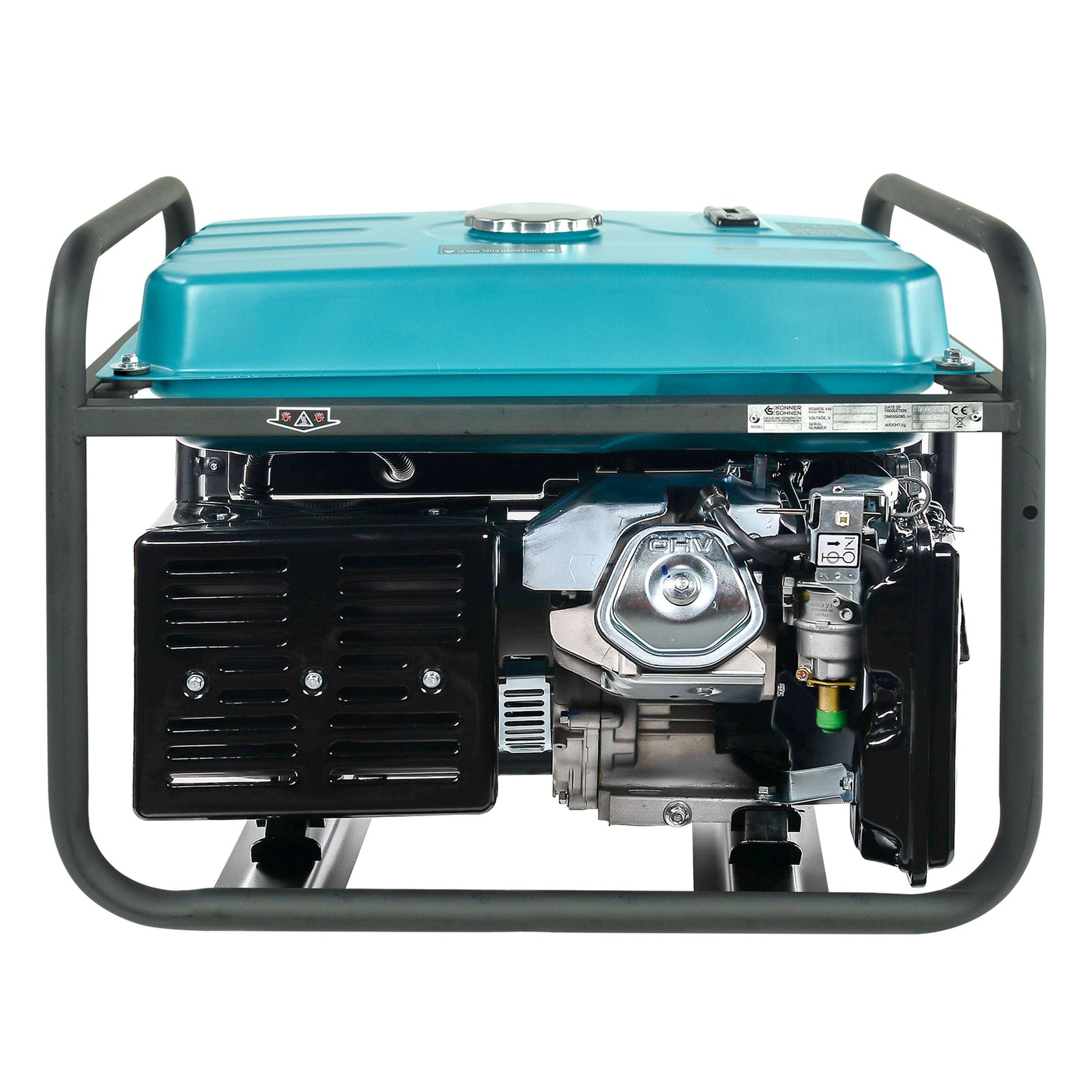

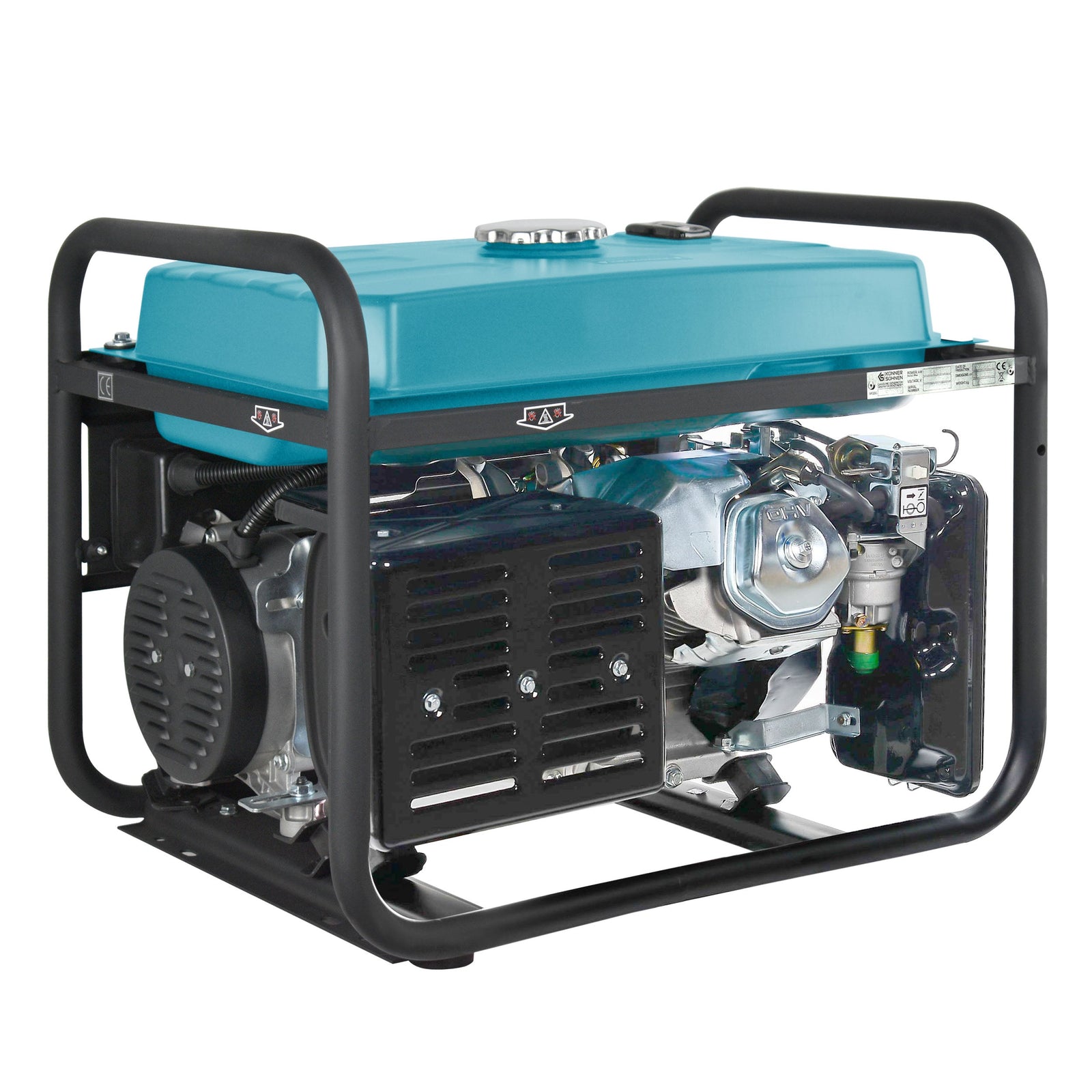

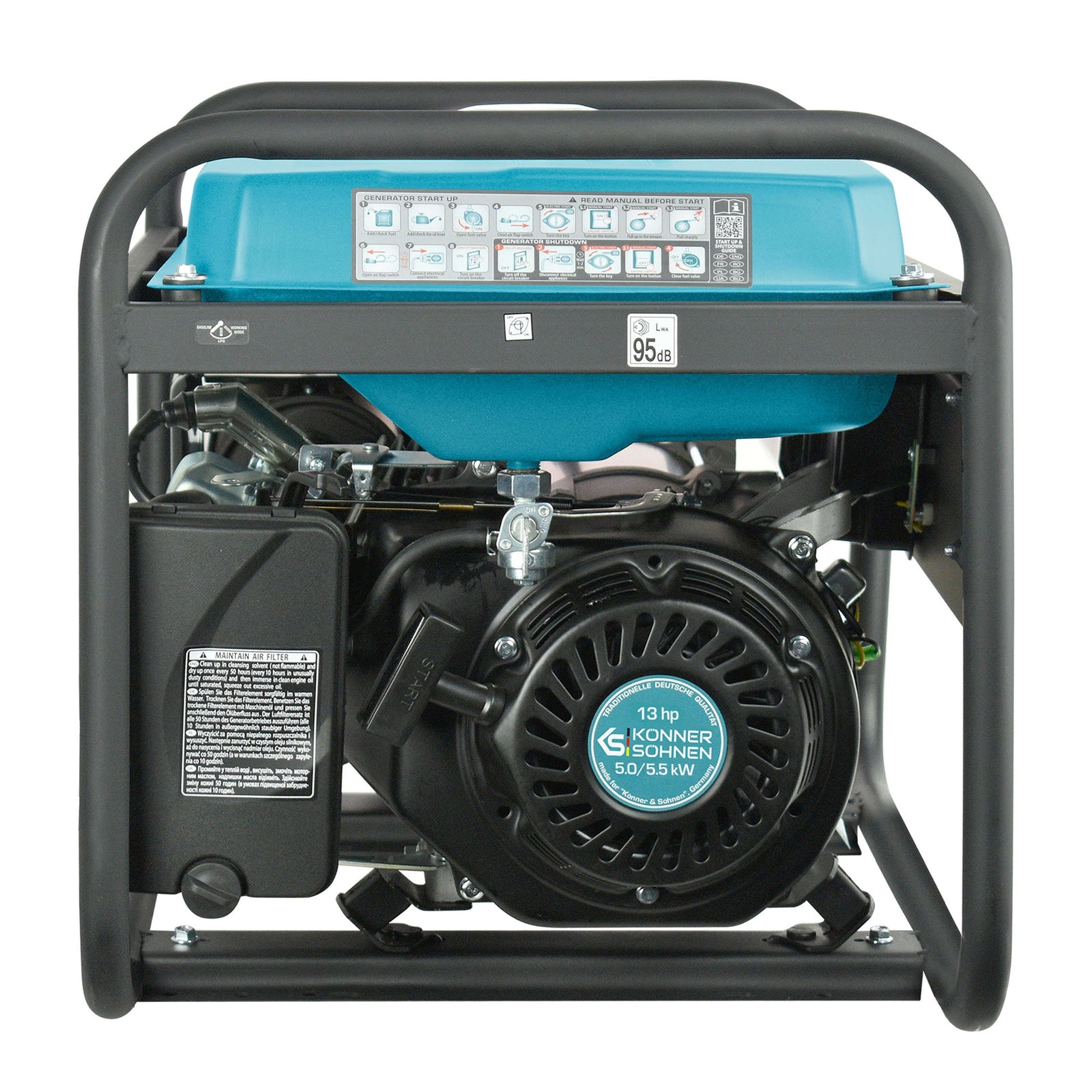

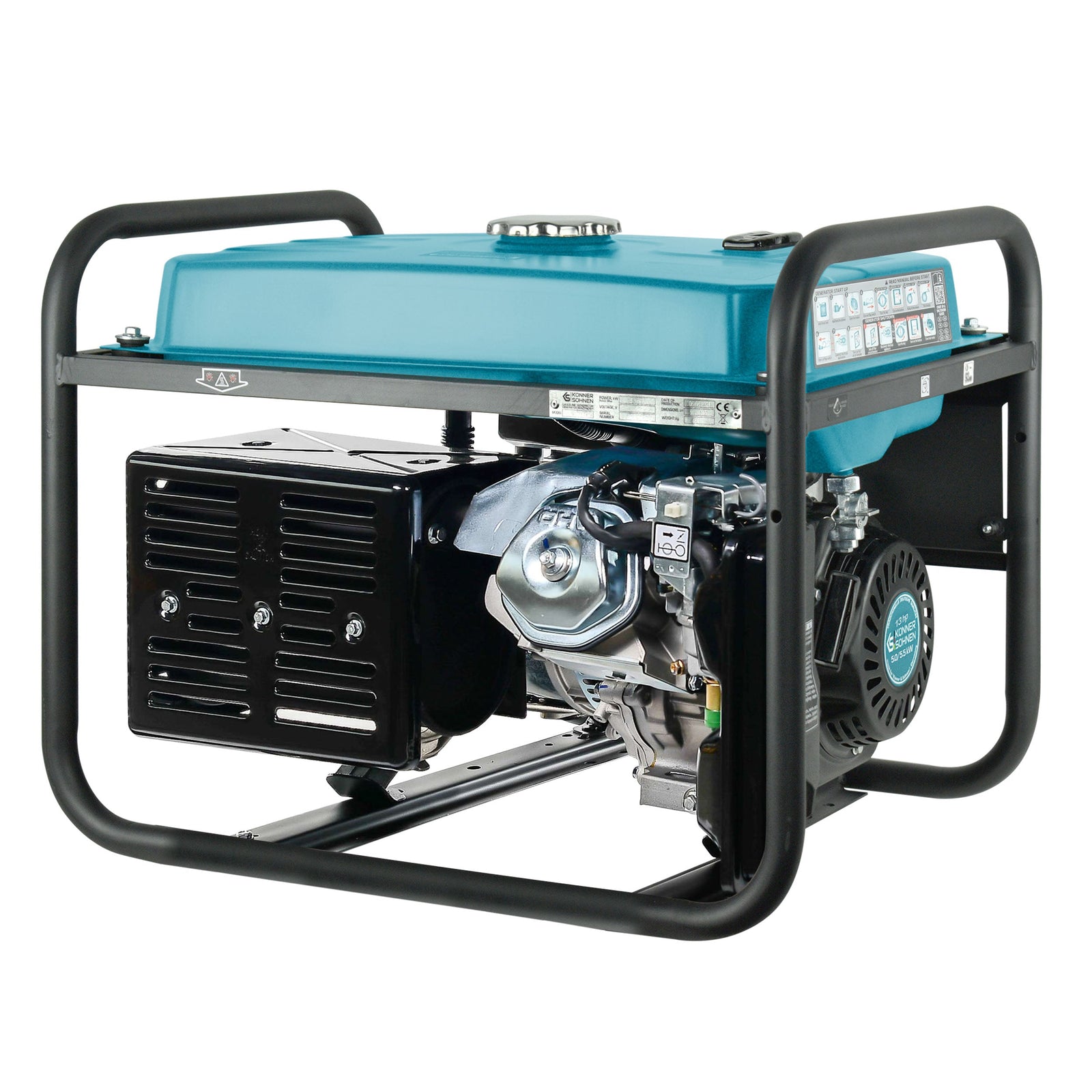

Gasoline generator "Könner & Söhnen" KS 7000E 1/3

Gasoline generator "Könner & Söhnen" KS 7000E 1/3

Name: Gasoline generator "Könner & Söhnen" KS 7000E 1/3
Brand: Könner & Söhnen
SKU: 4260405362264
Price: 971.95 EUR
Availability: InStock

Available

€971,95

Specification

Voltage, V:	230/400
Max/Nominal power (230V), kW:	5.5/5.0
Max/Nominal power (400V), kW:	5.5/5.0
Engine start:	Manual/electric
Outlets:	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	5.5/5.0
Max/Nominal power (400V), kW	5.5/5.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	23.91/9.93
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Runtime at 50% load, h***	17
LED display	Voltage in Volt, Frequency, Working hours
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12/8.3
Engine model	KS 390
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	13.0/9.56
Fuel type	Gasoline
Crank case volume, l	1.1
Engine cylinder volume, cm3	389
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M

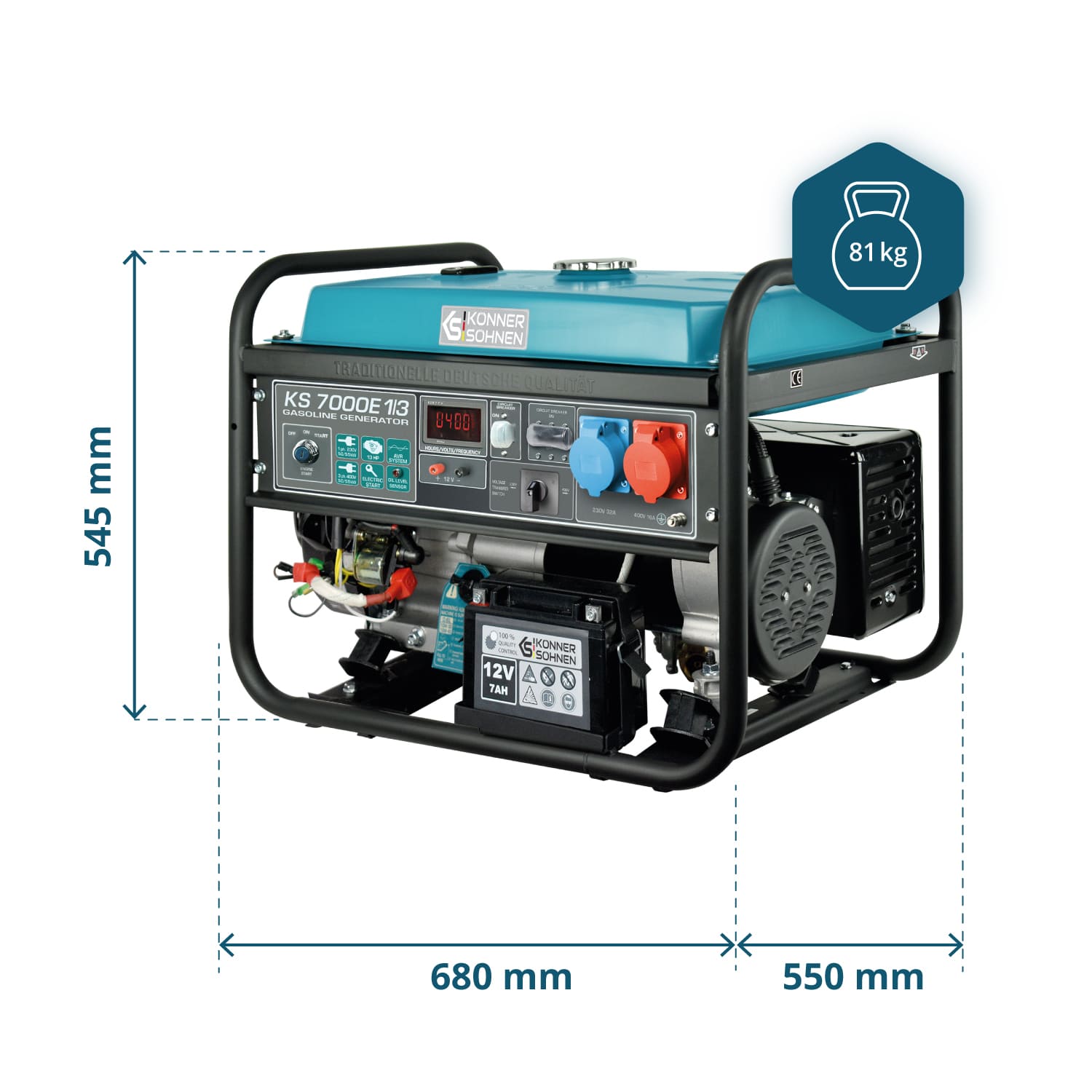

Net dimensions (LxWxH), mm	680×545×550
Gross dimensions (LxWxH), mm	700×545×590
Net weight, kg	81
Gross weight, kg	83.0
SKU	KS 7000E 1/3
Barcode	4260405362264

Benefits

Universal generator supplies both 230 V and 400 V electrical power, as it is equipped with a voltage switching system
Electric starter simplifies and eases the ignition process
Digital control panel displays important
Backup power of K&S generator engines: Guarantees the claimed power outputinformation for easy monitoring and maintenance
Equipped with dampers to reduce vibration and ensure smooth operation

Features

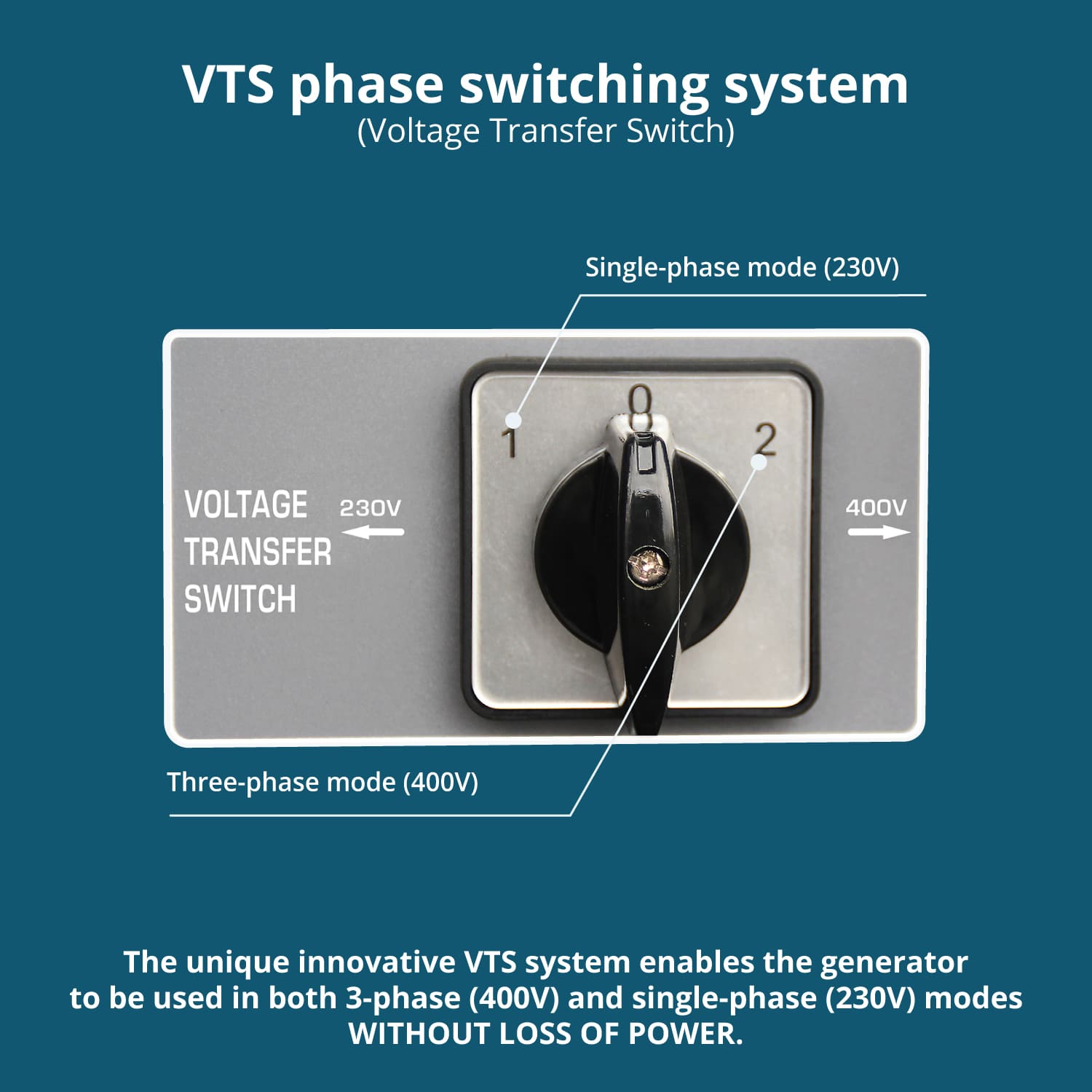

Vts system

The unique innovative VTS (Voltage Transfer Switch) phase switching system with equal power for single-phase (230V) and three-phase (400V) consumers. Each mode has its own circuit breaker.

Könner & söhnen engines

Specially for the Könner & Söhnen trademark German engineers have created K&S series engines, that have passed multi-hour and multi-level tests, that’s why they are so reliable.

Individual serial numbers on engines

Könner & Söhnen engines meet all world and European standards of quality, including the latest EURO V emission standards. This is proved by European certificates of quality. Each engine and each generator have their own individual serial number, which allows us to control the quality of production and service.

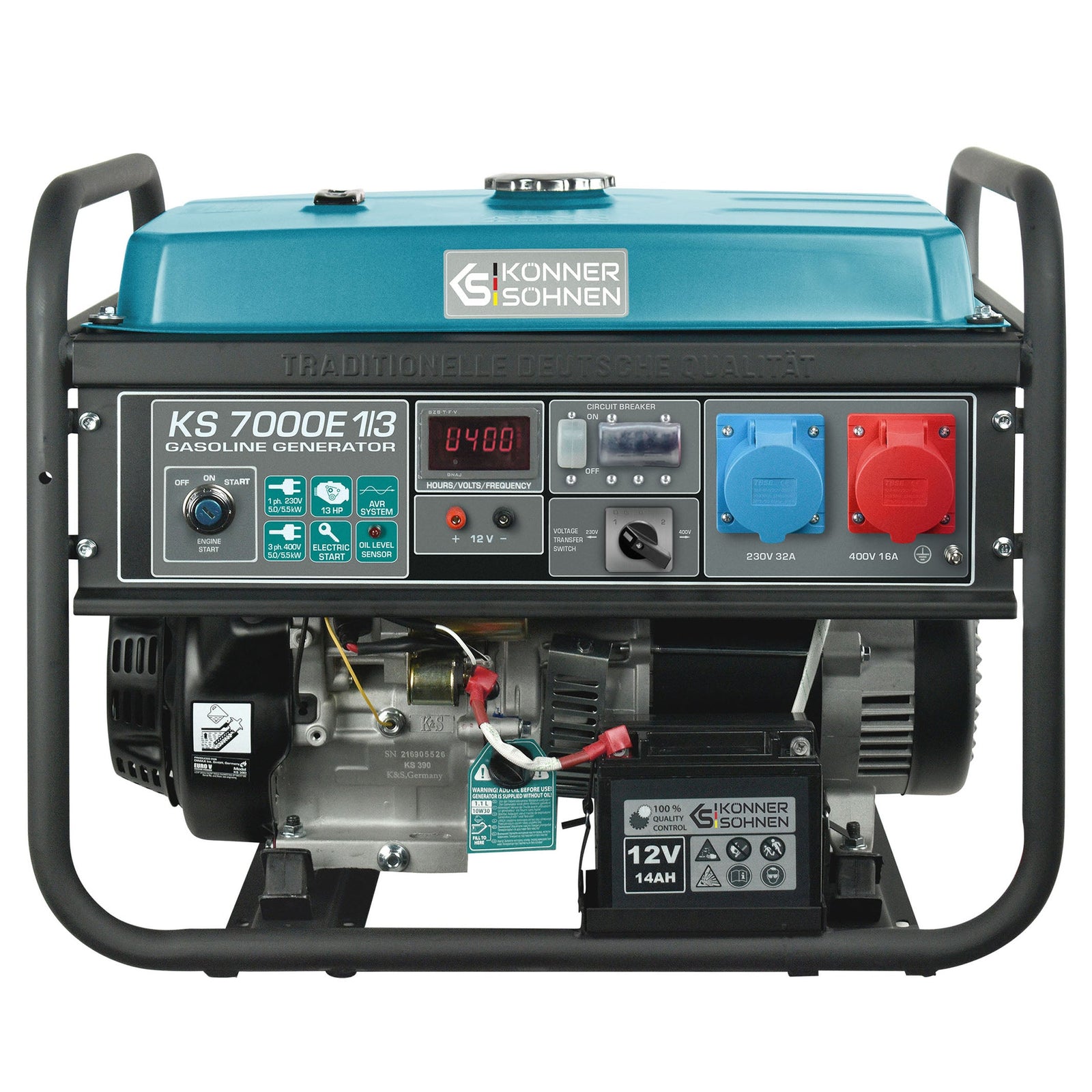

Convenient ergonomic control panel

Сonvenient and ergonomic panel of generator allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintenance the generator, extending the life of the operation.

Equipment

The generator panel is equipped with ergonomic connectors for connecting single- and threephase consumers. High-output sockets are made of high-quality heat-resistant plastic.

Synchronous alternator

The synchronous alternator with integrated intelligent AVR system is specially designed for singleand three-phase operation without loss of power. High workmanship and copper winding can withstand prolonged ultimate loads.

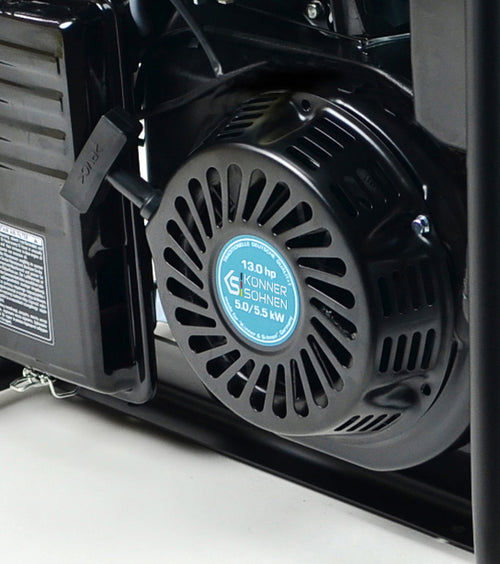

Easy start system

Easy start system system allows you to start the engine quickly and to do this without much effort. For ease of use, generators of this type have two types of startup - manual and electric. More powerful models are additionally equipped with an electric start system.

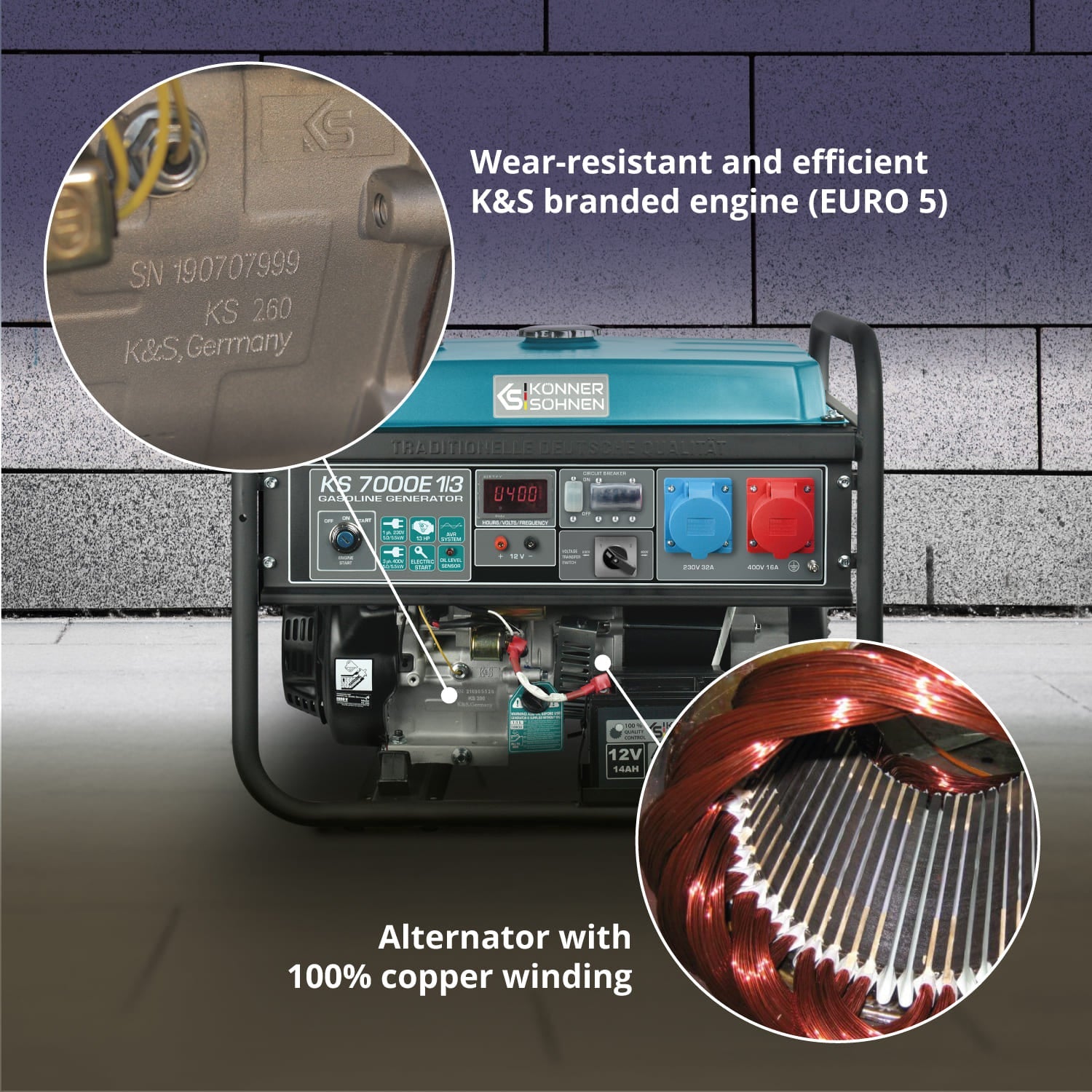

Alternator with 100% copper winding

TM Könner & Söhnen generators are equipped with a high-end synchronous alternator with 100% copper winding. It is only the copper winding that can withstand maximum loads without any damage to ensure long-term reliable operation of the generator set.

Steel tank

“Könner & Söhnen” generators are equipped with an enlarged steel fuel tank, which extends the generator’s operating time without refueling. The fuel level indicator is located on the tank for ease of use.

Dampers to lower vibration

All models of the Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. Thanks to the rubber damper, the working generator will not damage the floor covering, and the frame coating will not be scratched.

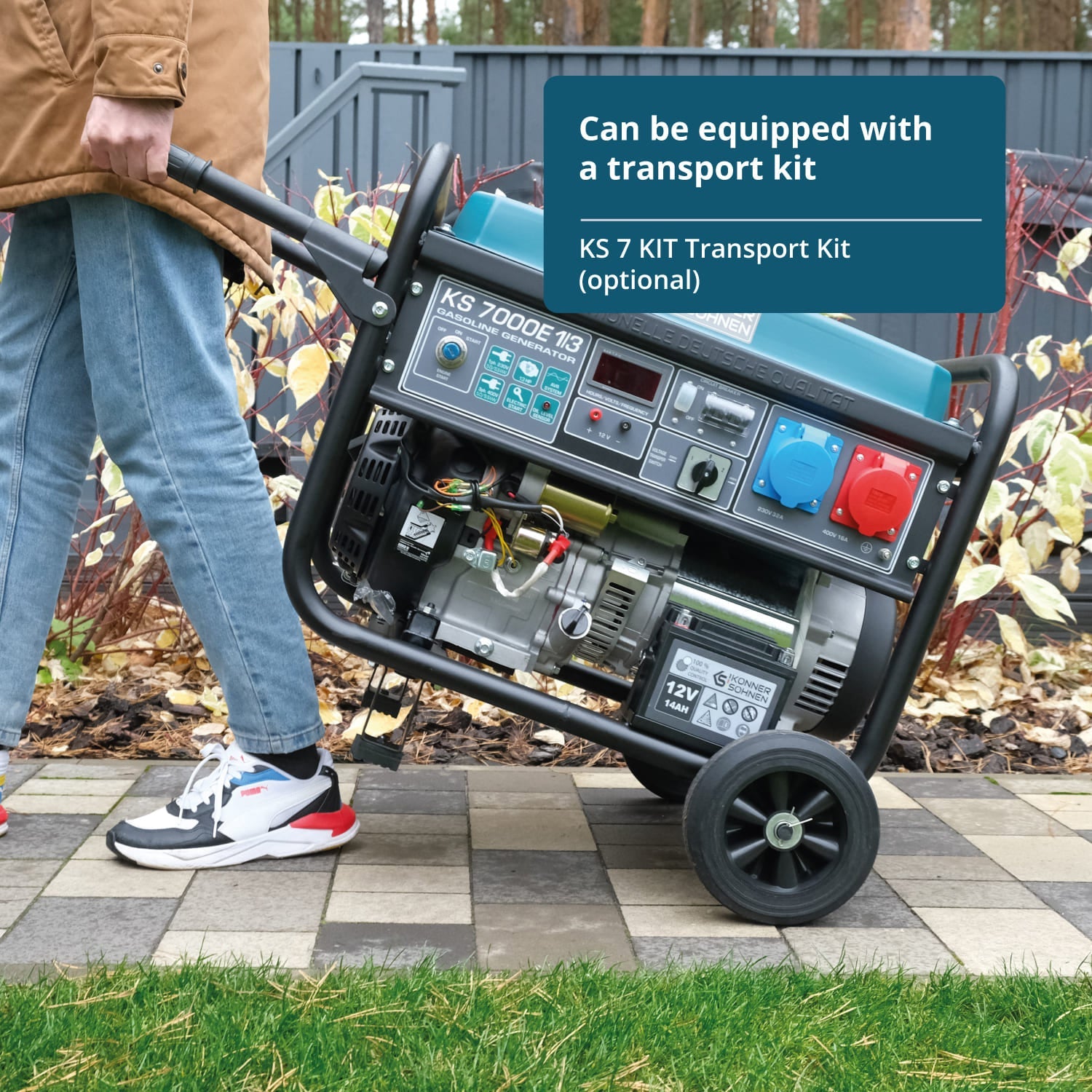

Optional KS 7 KIT

The transport kit KS 7 KIT includes 2 wheels, 2 support legs, a mounting kit and 2 handles.

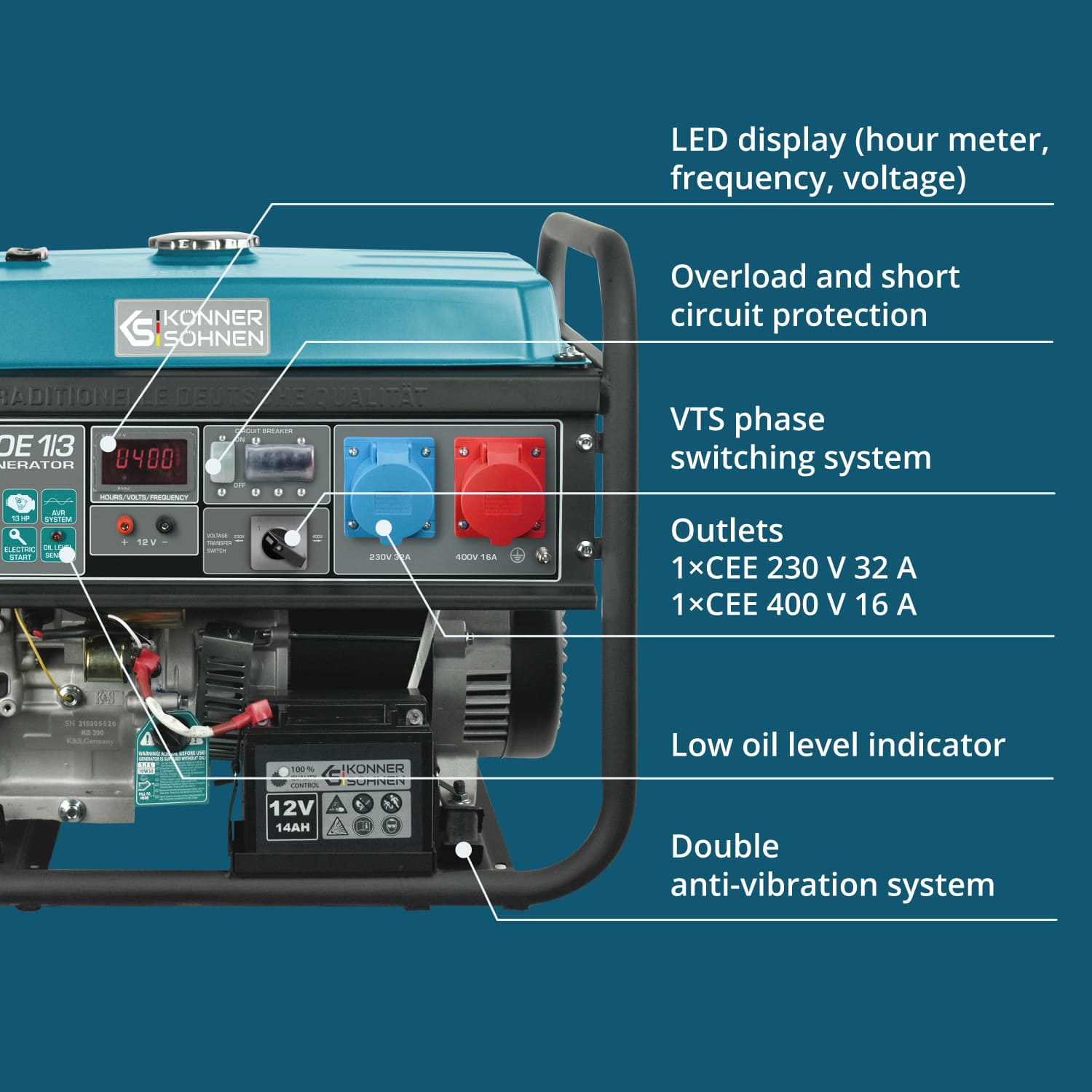

Circuit Breaker

Оverload and short circuit protection

Low Oil Level Indicator

Enables oil level monitoring without requiring manual inspection

Double Anti-Vibration System

To ensure noise reduction and extend the service life of the generator

Outlets

1 × CEE 230 V 32 A, 1 × CEE 400 V 16 A

LED Display

Hour meter, frequency, voltage

VTS phase switching system

Using the generator both in three-phase mode (400V) and in single-phase mode (230V)

Specification

Gasoline generator "Könner & Söhnen" KS 7000E 1/3

Voltage, V	230/400
Max/Nominal power (230V), kW	5.5/5.0
Max/Nominal power (400V), kW	5.5/5.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	23.91/9.93
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Fuel tank volume, l	25
Runtime at 50% load, h***	17
LED display	Voltage in Volt, Frequency, Working hours
Noise level Lpa (7m)/Lwa, dB	70/95
Power output DC, V/А	12/8.3
Engine model	KS 390
Engine type	Gasoline powered one-cylinder, four-stroke air-cooled
Engine power, hp/kW	13.0/9.56
Fuel type	Gasoline
Crank case volume, l	1.1
Engine cylinder volume, cm3	389
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Alternator winding	Copper
Protection class	IP23M
Net dimensions (LxWxH), mm	680×545×550
Gross dimensions (LxWxH), mm	700×545×590
Net weight, kg	81
Gross weight, kg	83.0
SKU	KS 7000E 1/3
Barcode	4260405362264

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
