Inverter Generator KS 8100iE 1/3 ATSR

Name: Inverter Generator KS 8100iE 1/3 ATSR
Brand: Könner & Söhnen Romania
SKU: 4260405368365
Price: 2959.0 BGN
Availability: InStock

Available

2,959.00 лв

Specification

Voltage, V:	230/400
Max power, kW:	8.5kW (230V)/8.5kW (400V)
Nominal power, kW:	8.0kW (230V)/8.0kW (400V)
Engine start:	electric
Outlets:	1xSchuko 230V, 1xCEE 230V 32A, 1xCEE 400V 16A

Benefits

HIGH-POWER INVERTER TECHNOLOGY. Built-in microprocessor-controlled electronics ensure stable 230V 50Hz pure sine wave output, making the generator suitable for powering sensitive electronics.
VTS SYSTEM (VOLTAGE TRANSFER SWITCH) Equipped with a VTS system, this generator can operate in either single-phase or three-phase mode, delivering up to 8.5 kW max output.
COMPATIBLE WITH EXTERNAL ATS KS ATS 4/25 Gasoline. Can be connected to an external Automatic Transfer Switch (ATS). Automatically starts and switches load in case of power outage and stops when grid power is restored. 8-pin ATS output compatible with KS ATS 4/25 Gasoline.
3-IN-1 EASY START SYSTEM. A 3-in-1 engine switch combines the fuel valve, choke, and electric start for easy and convenient operation.
FUEL-SAVING MODE. ECONOMY MODE reduces fuel consumption by up to 50% under light loads by adjusting engine speed accordingly.

Features

The KS 8100iE 1/3 ATSR inverter generator from Könner & Söhnen delivers 8.5 kW of power and features VTS technology for seamless operation in both single-phase and three-phase modes. It comes with a EURO V standard K&S engine, ECONOMY mode, ATS support, 3-in-1 start system, LED display, USB outputs, and sockets: 1×16A (230V), 1×32A (230V), 1×16A (400V). The 100% copper-wound alternator and included transport kit ensure durability and convenience. Ideal for sensitive electronics such as medical equipment or AV devices, it performs reliably even under heavy load.

01 Inverter technology

02 VTS System (Voltage Transfer Switch)

03 ATS System Connection (Automatic Transfer Switch)

04 3-in-1 Start System

05 Brushless Alternator with 100% Copper Winding

06 Ergonomic Control Panel

07 Economy Mode

08 EURO 5 Environmental Standard

Inverter technology

Generates stable voltage with a pure sine wave, making this generator ideal for powering sensitive electronics.

VTS System (Voltage Transfer Switch)

Enables operation in both single-phase (230 V) and three-phase (400 V) modes without power loss, providing flexible use depending on customer needs.

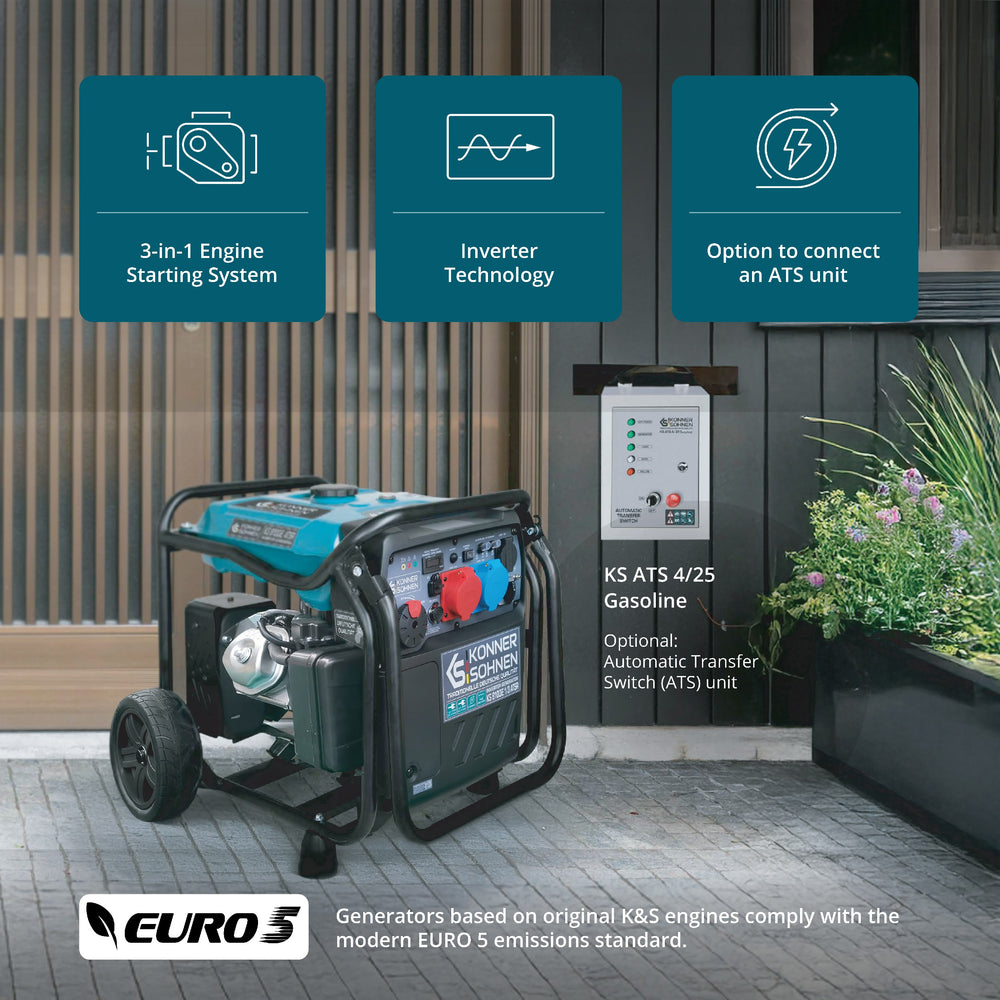

ATS System Connection (Automatic Transfer Switch)

The generator automatically starts during power outages, ensuring uninterrupted power supply; the connection is possible via an 8-pin connector.

3-in-1 Start System

Combines a fuel valve, air choke, and electric starter for quick and convenient starting.

Brushless Alternator with 100% Copper Winding

Provides stable power generation even under heavy loads.

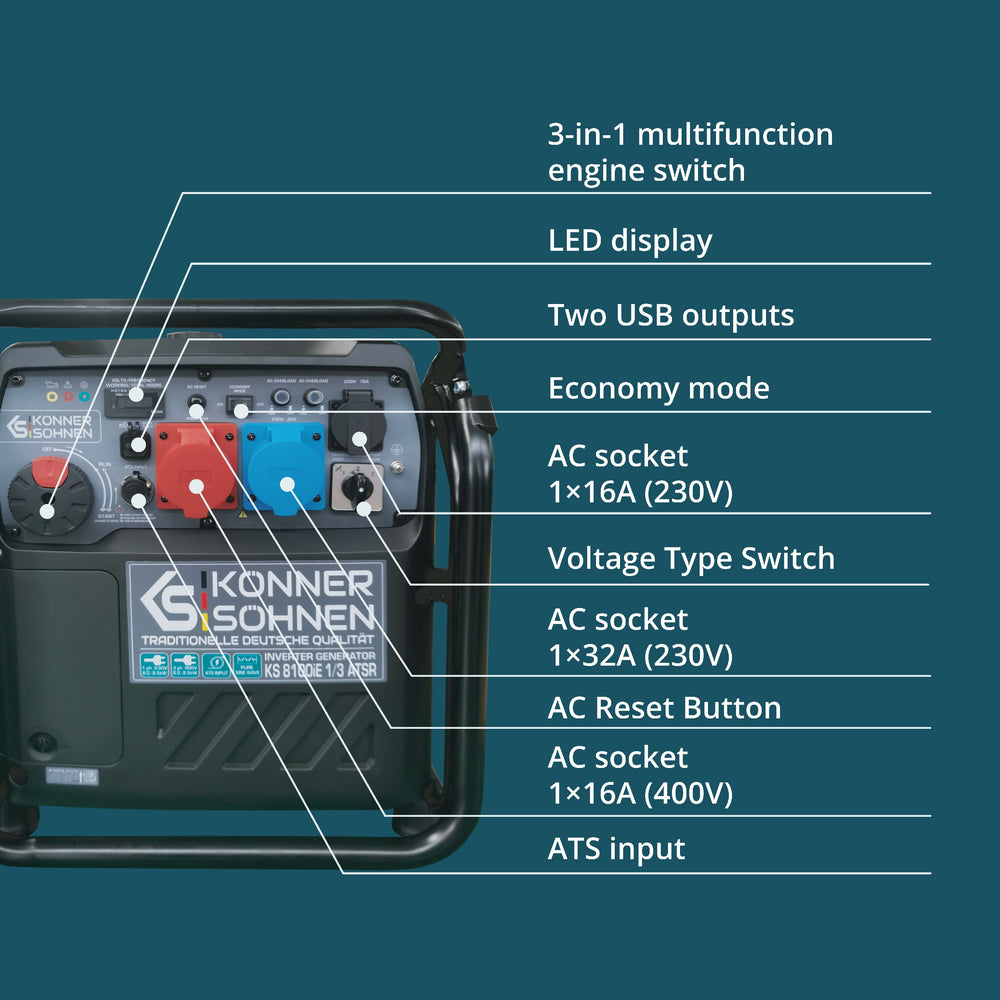

Ergonomic Control Panel

Features a LED display, status indicators signaling operating modes, circuit breaker trip in case of overload or short circuit, low oil level alert, reset button, USB ports, and 230 V outlets.

Economy Mode

Improves fuel efficiency by reducing consumption up to 50% under light loads.

EURO 5 Environmental Standard

Powerful and durable engine meets EURO 5 standards, ensuring long-lasting and safe operation.

Specification

Inverter Generator KS 8100iE 1/3 ATSR

Voltage, V	230/400
Max power, kW	8.5kW (230V)/8.5kW (400V)
Nominal power, kW	8.0kW (230V)/8.0kW (400V)
Power factor, cosφ	1
Frequency, Hz	50
Current (max), A	36.9A / 15.35A
Outlets	1xSchuko 230V, 1xCEE 230V 32A, 1xCEE 400V 16A
Engine start	electric
Fuel tank volume, l	20
Avg. working time (power 50%), h***	6
LED display	hour meter, frequency, voltage
Noise level Lpa (7m)/Lwa, dB	70/97
USB-Outputs	USB 3.0 + Type C
Engine model	KS 480i
Engine cylinder volume, cm3	458
Engine type	4-stroke gasoline
Engine power, hp	16
Output for ATS	+
Crank case volume, l	1.1
Accumulator (A·h)	1.6
Protection class	IP23M

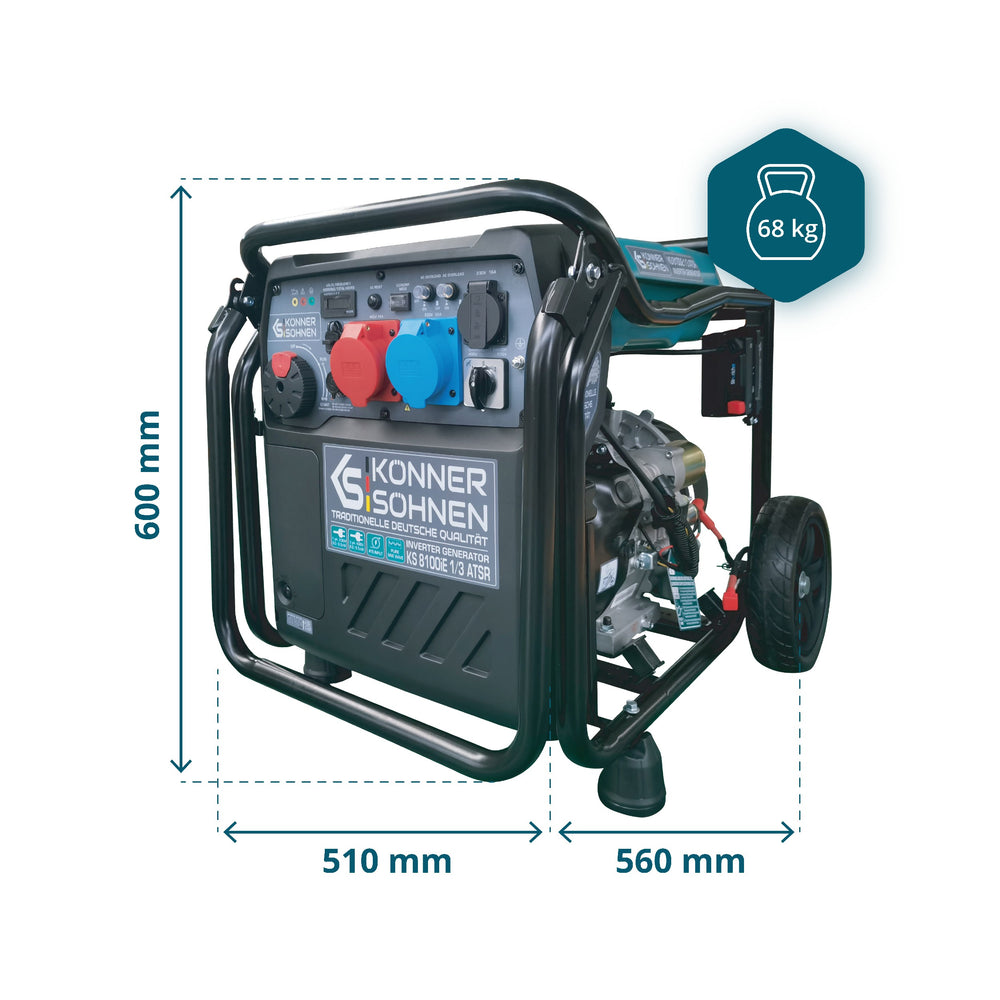

Net dimensions (LxWxH), mm	715×505×555
Gross dimensions (LxWxH), mm	730×520×580
Net weight, kg	68
Gross weight, kg	71.0
SKU	KS 8100iE 1/3 ATSR
Barcode	4260405368365

*** Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.

ATTENTION! The product is sold without engine oil or gasoline. Before the first start, engine oil for four-stroke gasoline engines must be added. We recommend 10W-30 or 10W-40 oil. Always check the oil level before each use. Use only unleaded gasoline with an octane rating of 90–95 containing no more than 10% ethanol.
