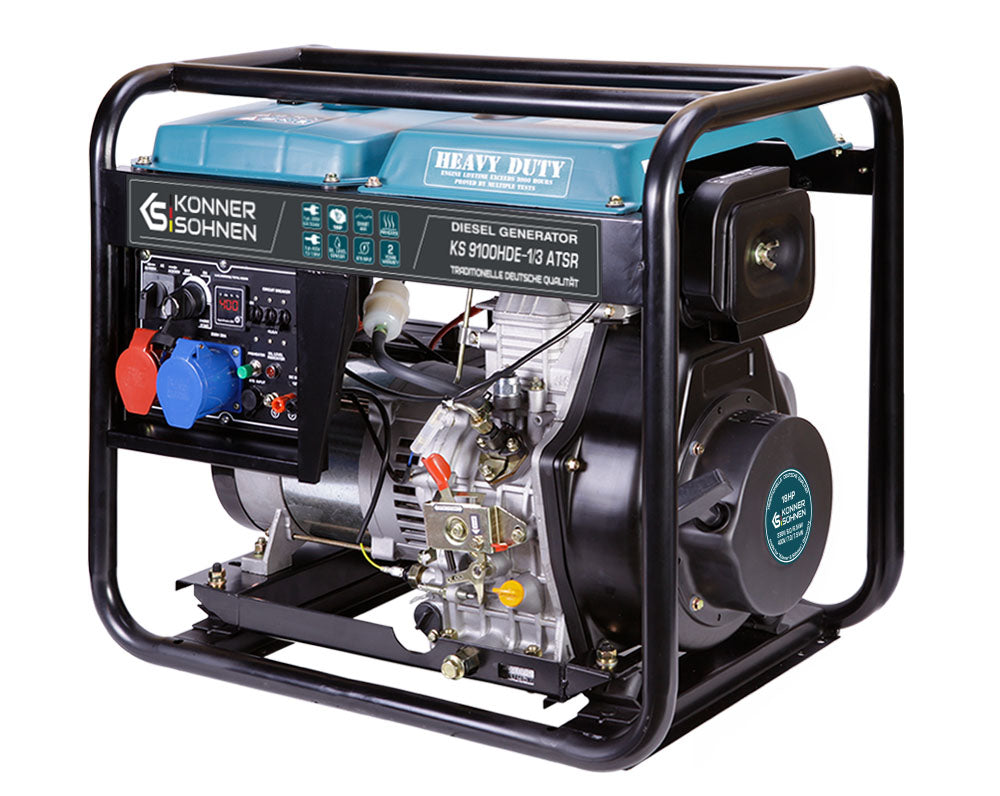

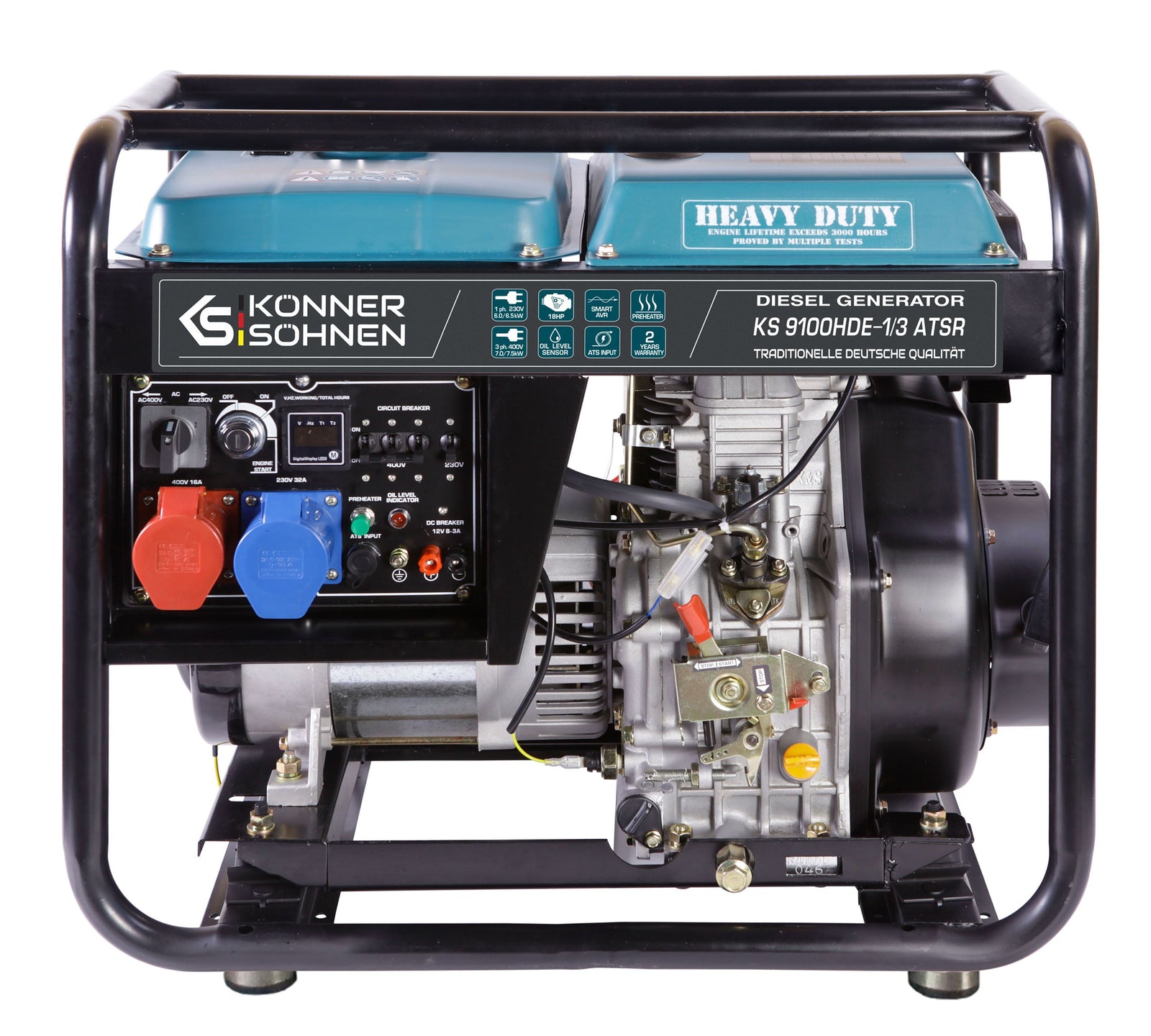

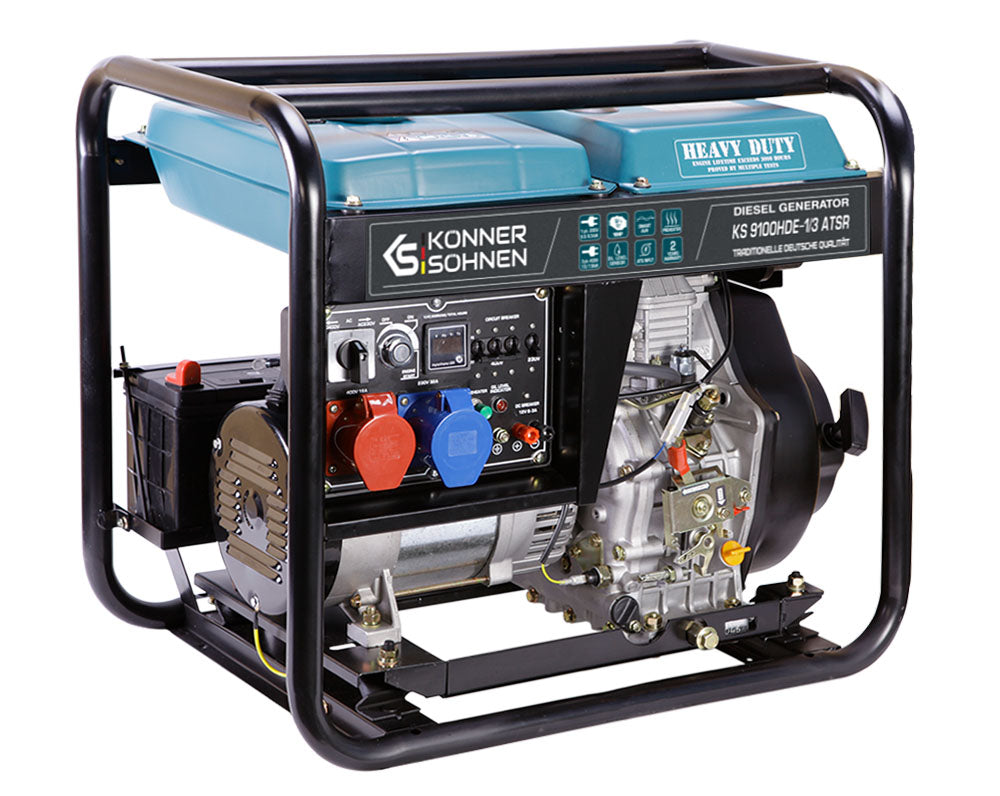

Diesel generator "Könner & Söhnen" KS 9100HDE-1/3 ATSR (EURO V)

Diesel generator "Könner & Söhnen" KS 9100HDE-1/3 ATSR (EURO V)

Name: Diesel generator "Könner & Söhnen" KS 9100HDE-1/3 ATSR (EURO V)
Brand: Könner & Söhnen
SKU: 4260405362288
Price: 1553.95 EUR
Availability: OutOfStock

Unavailable

€1.553,95

Specification

Frequency, Hz:	50**
Max/Nominal power (230V), kW:	6.5/6.0
Max/Nominal power (400V), kW:	7.5/7.0
Fuel tank volume, l:	11
Runtime at 50% load, h***:	6.1

Specification

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Runtime at 50% load, h***	6.1
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	+
Protection class	IP23M
Includes	Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, 32 A CEE plug (2P+E), Portable plug CEE 400V 16А (3P+E+N), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm

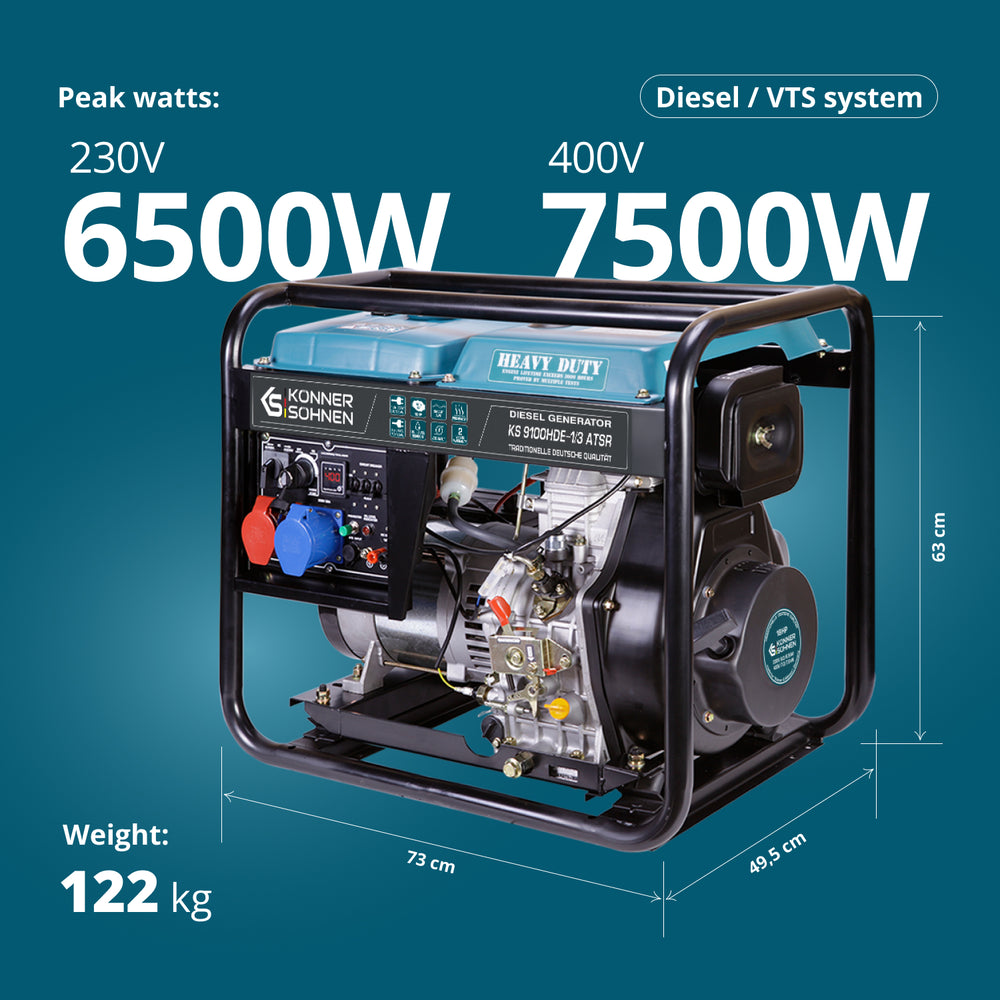

Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	750×520×660
Net weight, kg	122
Gross weight, kg	130.0
SKU	KS 9100HDE-1/3 ATSR
Barcode	4260405362288

Benefits

"HEAVY DUTY" series generators are distinguished by strict quality control at all stages of production
Pre-start heating helps to reach operating power more quickly
A special phase switch changes the output voltage from single-phase to three-phase, depending on the connected load
The convenient ergonomic panel allows easy control of the generator and does not require additional skills
Ability to operate in harsh conditions: thanks to its reinforced frame, the generator functions even in field conditions

Features

Könner & söhnen engines

Engines for both diesel and gasoline generators are manufactured under the license of DIMAX Int. GmbH and are marked with K&S logo. High power of engines in relation to the alternator allows to receive the declared power output and maintain stable work at any load. All engines are tested for continuous operation, and then disassembled and examined for trouble-shooting purposes. Each engine and each generator have an individual serial number, which allows us to control the quality of production and service. The engines meet all European quality standards, including the latest EURO V emission standards.

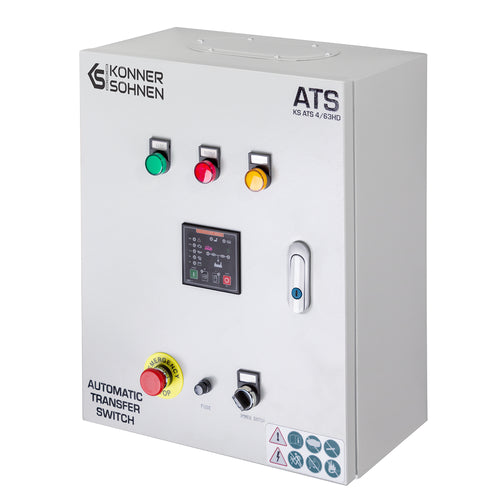

Automatic transfer switch

The ATS (Automatic Transfer Switch) unit automatically starts the generator and transfers load to it when the main power supply is disconnected and automatically stops the generator when the central power supply is restored.

Increased engine resource

Könner & Söhnen® "HEAVY DUTY" series diesel generators feature an increased engine lifespan, ensuring a longer service life and the ability to operate for more hours without interruption, as confirmed by multi-hour, multi-level testing. Of course, the engines achieve such high performance through proper operation and scheduled maintenance.

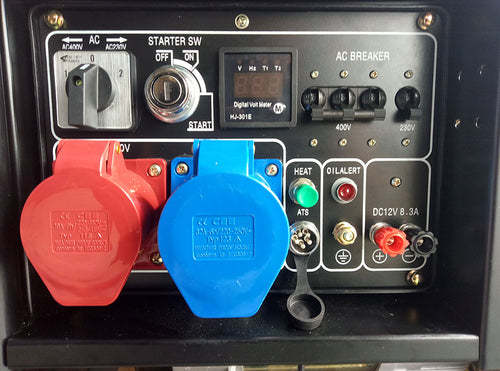

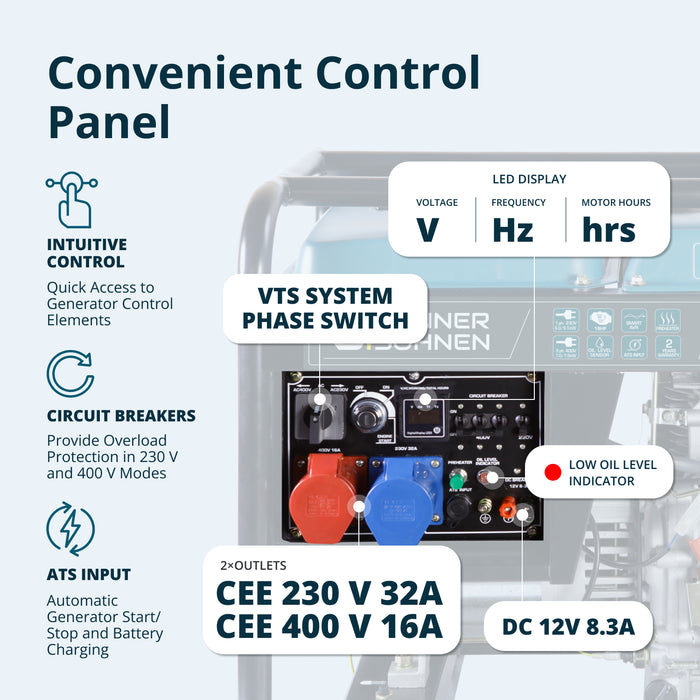

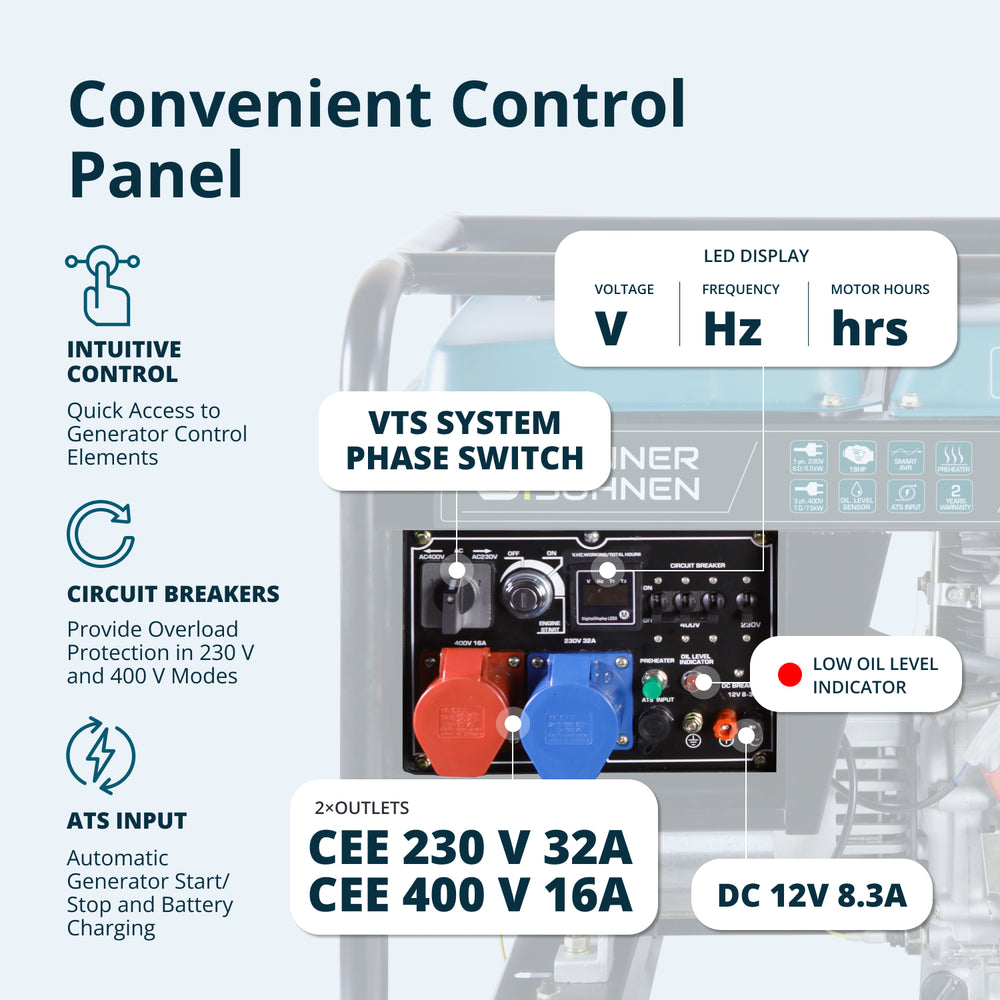

Ergonomic control panel

Convenient and ergonomic generator's control panel allows you to control the entire unit easily and does not require additional skills. The modern intelligent LED display will always indicate the number of hours worked, frequency and voltage output. The information on the display helps to control the device load and timely maintain the generator, extending the operation life.

Preheater function

All Heavy Duty series generators are equipped with a preheat function, which allows you to easily start a generator in winter.

Avr

“Könner & Söhnen” series diesel generators are equipped with intelligent voltage stabilization system AVR. It allows to keep the voltage at a constant value of 230 V and protects against unwanted short circuits.

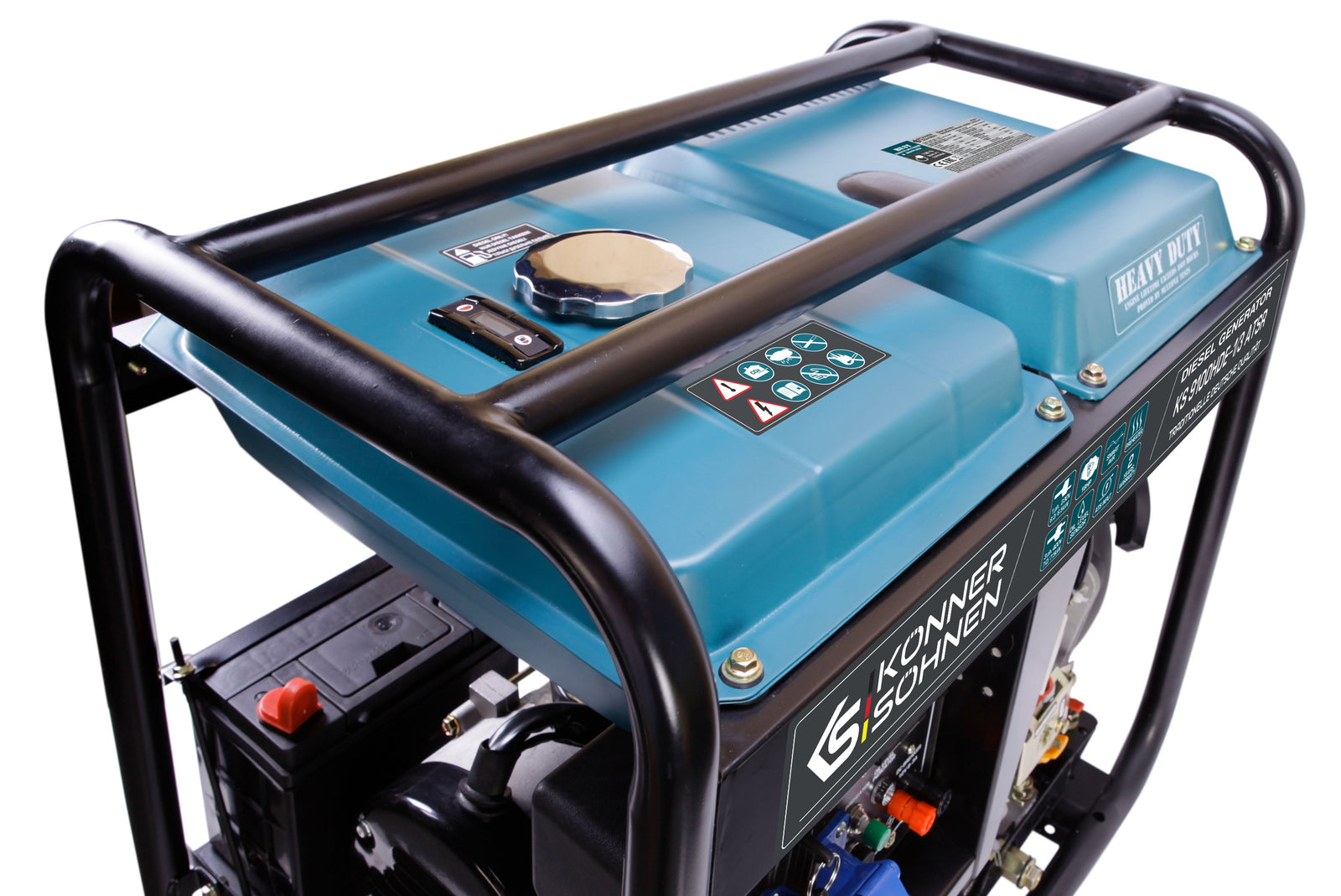

Enforced frame

Additional frame reinforcement with the upper protective strips allows HEAVY DUTY professional series generators to operate in a more rigid mode. The reinforced frame structure protects the tank against damage during operation and transportation.

Dampers to lower vibration

All models of Könner & Söhnen generators are equipped with rubber feet to reduce vibrations. The working generator will not damage the floor covering, and the frame coating will not be scratched.

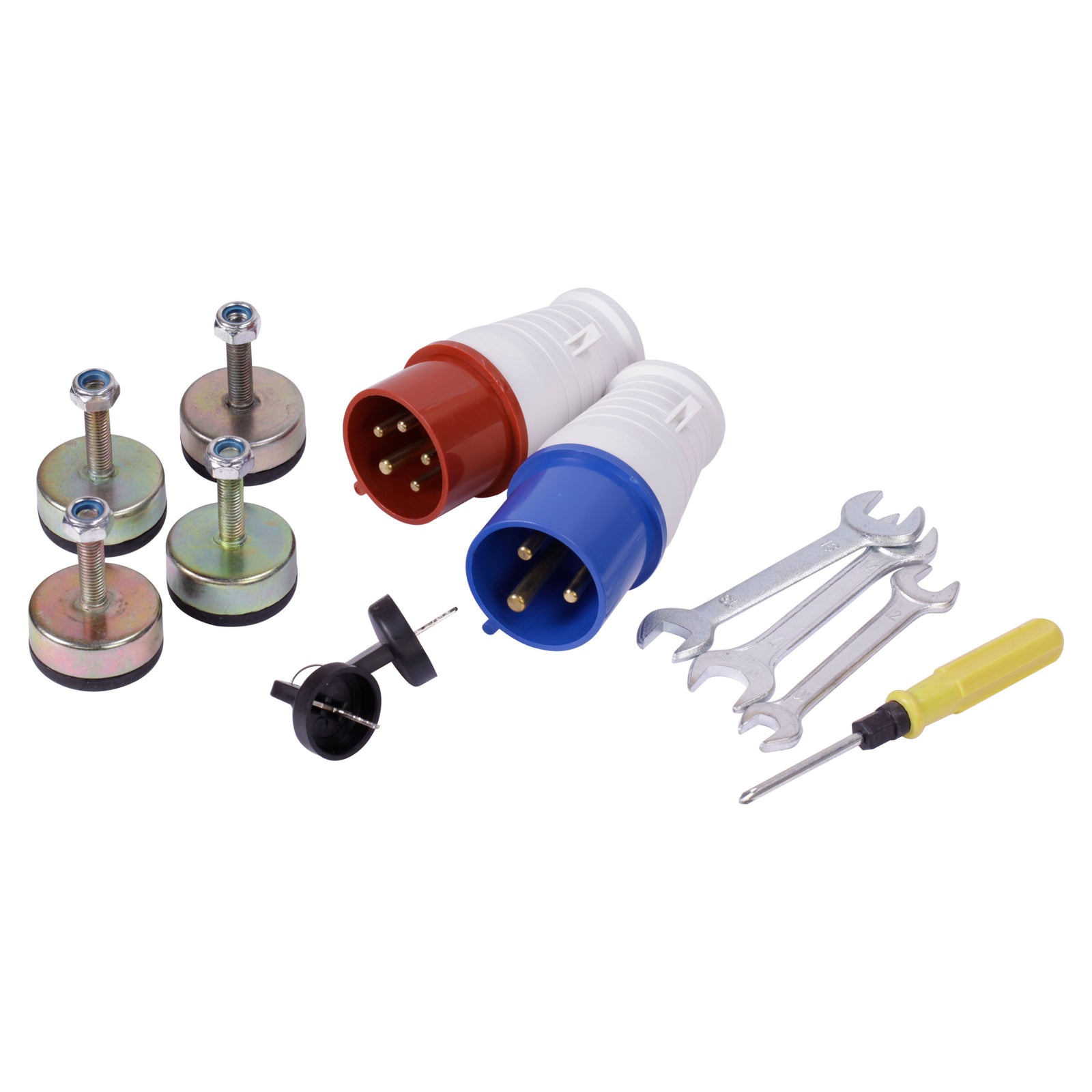

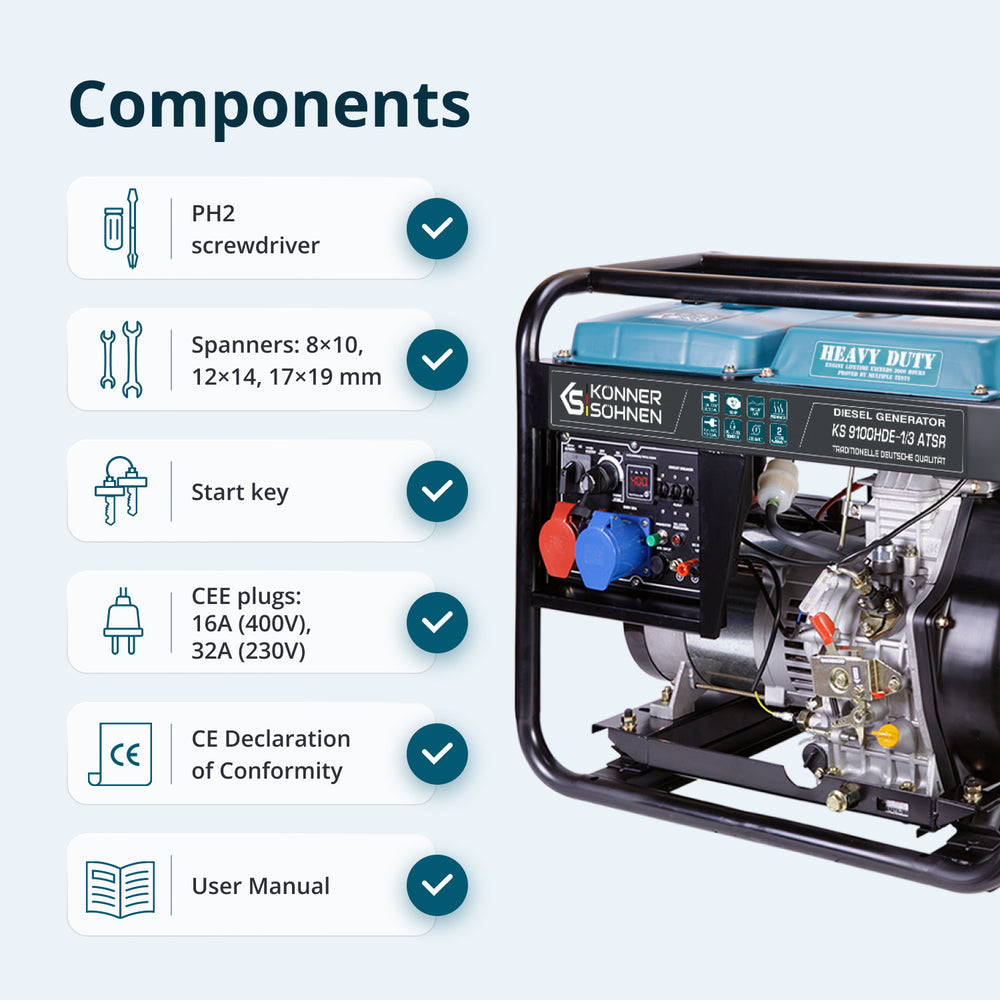

Accessories set

Generator is equipped with additional accessories: a portable 3Р+Е+N 16A 400V power plug, a portable 2P+Е 32A 230V power plug, a 8x10mm hook key, 12x14mm and 17x19mm keyholes and a two way 6.0mm PH2 screwdriver.

Optional KS 6-9D KIT

Transportation kit KS 6-9D KIT includes: wheels – 4 pcs.

Specification

Diesel generator "Könner & Söhnen" KS 9100HDE-1/3 ATSR (EURO V)

Voltage, V	230/400
Max/Nominal power (230V), kW	6.5/6.0
Max/Nominal power (400V), kW	7.5/7.0
Power factor, cosφ	1 (230V)/0.8 (400V)
Frequency, Hz	50**
Current (max.) 230/400 V, A	28.26/13.54
Outlets	1 x CEE 230 V 32 A, 1 x CEE 400 V 16 A
Runtime at 50% load, h***	6.1
LED display	Voltage, frequency, working hours
Noise level Lpa (7m)/Lwa, dB	71/96
Power output DC, V/А	12/8.3
Engine type	Diesel powered one-cylinder, four-stroke air-cooled
Engine model	KS 520HD-V
Engine power, hp/kW	18.0/13.24
Preheater	+
Fuel tank volume, l	11
Crank case volume, l	1.65
Engine cylinder volume, cm3	498
Power output controller	Intelligent voltage stabilization system AVR
Engine start	Manual/electric
Frame diameter	32 mm, round
Accumulator (A·h)	30
Output for ATS	+
Protection class	IP23M
Includes	Generator, Packaging, Manual, Screwdriver PH2 6.0 mm, 32 A CEE plug (2P+E), Portable plug CEE 400V 16А (3P+E+N), Start key, Open end wrench 8х10 mm, 12х14 mm, 17х19 mm
Net dimensions (LxWxH), mm	730×495×630
Gross dimensions (LxWxH), mm	750×520×660
Net weight, kg	122
Gross weight, kg	130.0
SKU	KS 9100HDE-1/3 ATSR
Barcode	4260405362288

**In transient modes, the frequency of the generator can change in the short term, that is, during normal operation of the generator, the deviation of the frequency indicator is permissible. Depending on the type of generator, engine and operating mode, the frequency can be 49-54Hz

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude, technical condition of the generator.
